This manual provides detailed instructions for the safe and effective operation, maintenance, and troubleshooting of your DEPSTECH DS620 50ft Endoscope and DS660 Two-Way Articulating Borescope Bundle. Please read this manual thoroughly before using the devices to ensure proper functionality and to prevent damage or injury.
The DEPSTECH DS620 features an extended 50ft cable and an innovative 1080P HD triple lens system, ideal for inspecting long, confined spaces. The DEPSTECH DS660 offers precise 210° two-way articulation with a slim 0.24-inch probe, designed for navigating tight and complex areas. Both devices feature a 5-inch IPS HD display for clear, real-time viewing.
2. Коопсуздук нускамалары
Always adhere to the following safety precautions to prevent electric shock, fire, or personal injury:
- Do not immerse the main display unit in water or other liquids. The camera probe and cable are waterproof, but the main unit is not.
- Аппаратты күйүүчү же жарылуучу газдары бар чөйрөдө колдонбоңуз.
- Аппаратты күчтүү электромагниттик талаалардан алыс кармаңыз.
- Түзмөктү бөлүктөргө бөлүүгө же өзгөртүүгө аракет кылбаңыз. Оңдоо иштерин ыйгарым укуктуу кызматкерлер гана жүргүзүшү керек.
- Ensure the device is fully charged before use to avoid interruptions during inspection.
- Аппаратты колдонбогондо кургак, салкын жерде сактаңыз.
- Балдар жетпеген жерде сактаңыз.
3. Продукт бүтүп калдыview
This bundle includes two distinct inspection cameras, each designed for specific applications:
3.1 DEPSTECH DS620 Endoscope
The DS620 is equipped with a 50ft semi-rigid cable and a triple-lens camera system, providing extensive reach and multiple viewing angles for comprehensive inspections.
Image: The DEPSTECH DS620 endoscope unit, featuring a large display and a coiled 50ft camera cable connected to the main unit. The camera probe tip is visible with its integrated lights.
- Кеңейтилген мүмкүнчүлүк: 50-foot semi-rigid cable for deep inspections.
- Үч линзалуу система: Front and two side cameras for comprehensive viewing without changing probes.
- 1080P HD камера: High-definition image capture.
Image: A diagram illustrating the 50ft flexible snake camera cable, highlighting its capability to reach deep into drain pipes, walls, automotive engines, and HVAC systems.
3.2 DEPSTECH DS660 Articulating Borescope
The DS660 features a shorter, more flexible metal gooseneck probe with 210° two-way articulation, allowing precise navigation and angle adjustment in tight spaces.
Image: The DEPSTECH DS660 borescope unit, showing the main display attached to a handle with a flexible, articulating probe extending from it. A small carrying case is also visible.
- 210° Precision Articulation: Joystick-controlled two-way bending for optimal viewбурчтар.
- Slim Probe: 0.24-inch diameter for accessing very narrow openings.
- Adaptable Gooseneck: 5ft metal gooseneck that holds its shape for stable positioning.
Image: A diagram illustrating the 210° two-way articulation feature of the borescope probe, showing how it can bend in two directions to inspect tight spaces from various angles.
4. Орнотуу жана алгачкы колдонуу
4.1 Аппаратты заряддоо
Before first use, fully charge the main display unit using the provided USB cable and a compatible power adapter (not included). The charging indicator will show the charging status.
4.2 Камера зондун туташтыруу
For the DS620, securely connect the 50ft endoscope cable to the designated port on the main display unit. For the DS660, the articulating probe is typically integrated or connects via a secure, dedicated port.
Image: A composite image showing both the DEPSTECH DS620 endoscope and the DS660 articulating borescope units. The DS620 has a long coiled cable, while the DS660 has a shorter, flexible probe with a handle.
4.3 MicroSD картасын салуу
To save images and videos, insert a MicroSD card (up to 32GB, Class 10 recommended) into the card slot on the main display unit. Ensure the card is inserted correctly before powering on.
5. Иштөө нускамалары
5.1 Күйгүзүү/өчүрүү
Press and hold the power button (usually marked with a power symbol) for a few seconds to turn the device on or off. The display will illuminate.
5.2 Менюда навигация
Use the directional buttons (up, down, left, right) and the OK button to navigate through the on-screen menu. Settings typically include brightness, resolution, language, and date/time.

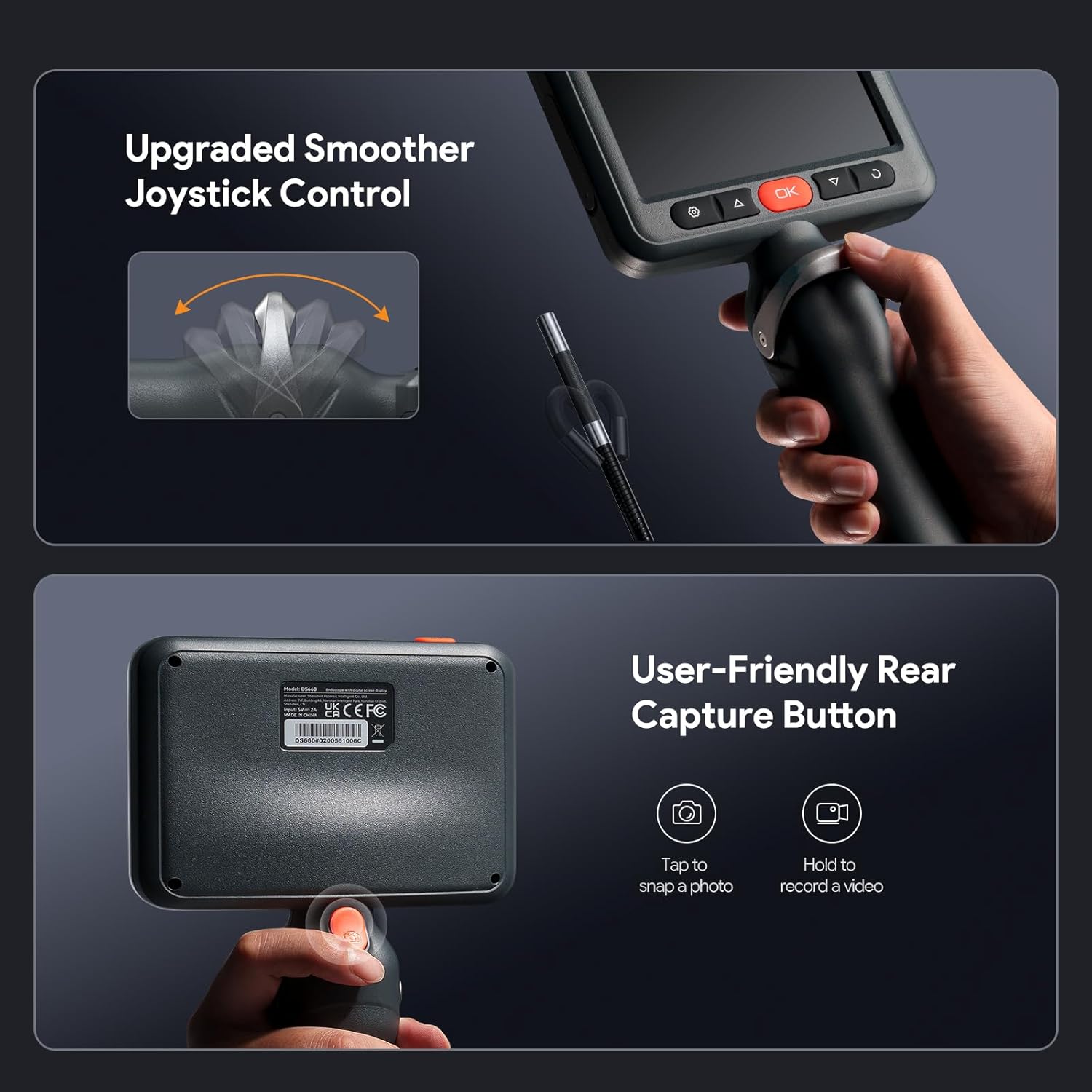

Сүрөт: деталдуу view of the borescope's control panel, highlighting the joystick for articulation and the user-friendly rear capture button for taking photos or recording videos.
5.3 LED жарыктыгын жөндөө
The camera probe features adjustable LED lights. Use the dedicated brightness control button or menu option to increase or decrease illumination as needed for clear viewing.
5.4 Сүрөттөрдү жана видеолорду тартуу
- Сүрөткө тартуу үчүн: Press the photo capture button (often marked with a camera icon) once.
- Видео жаздыруу үчүн: Press the video record button (often marked with a video camera icon) once to start recording. Press again to stop.
Сакталган files can be accessed through the gallery or playback menu on the device.
5.5 Using the DS620 Triple Lens System
The DS620 allows switching between front and side cameras. Use the designated button (often labeled with a lens icon or 'M' for mode) to cycle through the front view, сол тарабы view, and right side view. This eliminates the need for additional attachments.
Image: A visual representation of the borescope's innovative three-lens system, showing the front camera and two side cameras with their respective focal ranges, allowing for comprehensive inspection.
5.6 Operating the DS660 Articulation
The DS660 features a joystick control for precise two-way articulation of the probe tip. Gently move the joystick to bend the probe in the desired direction (up to 210°). This allows for navigating around obstacles and viewing specific angles.
Image: A person demonstrating the use of the articulating borescope, holding the main unit and guiding the flexible gooseneck probe into a hard-to-reach area, showcasing its adaptability.
6. Техникалык тейлөө
6.1 Cleaning the Camera Probe
After each use, especially in dirty or oily environments, gently wipe the camera probe and cable with a soft, damp кездеме. Өтө катуу кир үчүн жумшак жуучу каражатты, андан кийин таза,amp кездеме. Негизги блокко суюктуктун кирбегенин текшериңиз.
6.2 Cleaning the Display Screen
Use a soft, lint-free cloth to clean the display screen. Avoid abrasive materials or harsh chemicals that could scratch or damage the screen.
6.3 Сактоо
When not in use, store the device in its original packaging or a protective case in a dry, cool place, away from direct sunlight and extreme temperatures. Ensure the cable is neatly coiled to prevent kinks or damage.
7. Кыйынчылыктарды
7.1 Түзмөк күйбөйт
- Түзмөктүн толук заряддалганын текшериңиз. Аны кубат булагына туташтырып, кайра күйгүзүүдөн мурун кеминде 30 мүнөт заряддап коюңуз.
- Туура иштеши үчүн кубат баскычын текшериңиз.
7.2 Экранда сүрөт жок
- Verify that the camera probe is securely connected to the main unit.
- Check the LED brightness settings; increase if the environment is too dark.
- Аппаратты кайра иштетиңиз.
7.3 Cannot Save Photos/Videos
- Ensure a MicroSD card is inserted correctly.
- Check if the MicroSD card has sufficient free space.
- Format the MicroSD card (this will erase all data, back up important fileбиринчи).
- Ensure the MicroSD card is not locked (read-only).
7.4 Articulation Not Responding (DS660)
- Check for any physical obstructions preventing the probe from bending.
- Ensure the joystick is clean and free of debris.
- Аппаратты кайра иштетиңиз.
8. Техникалык шарттар
| Өзгөчөлүк | Description |
|---|---|
| Дисплей | 5-inch IPS HD Display, 854*480 Resolution, 178° Viewing Angle, 340 cd/m² Brightness |
| Camera (DS620) | 1080P HD Triple Lens System (Front, Side A, Side B) |
| Cable Length (DS620) | 50ft (15.24m) Semi-Rigid Cable |
| Articulation (DS660) | 210° Two-Way Precision Joystick Control |
| Probe Diameter (DS660) | 0.24 дюйм (6мм) |
| Gooseneck Length (DS660) | 5ft (1.5m) Metal Gooseneck |
| Сактагыч | MicroSD Card (up to 32GB, not included) |
| Power Source | Rechargeable Battery (details not specified, typically Li-ion) |
Image: A graphic illustrating the key specifications of the 5-inch IPS HD display, including its 854x480 resolution, 178° viewing angle, and 340 cd/m² brightness, emphasizing its clarity and wide view.
9. Кепилдик жана колдоо
DEPSTECH products are designed for reliability and performance. For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or visit the official DEPSTECH webсайт. Колдоо кызматына кайрылганда моделиңиздин номерин жана сатып алган күнүңүздү көрсөтүңүз.
