YINMIK YK-4S 4-in-1 pH EC TDS температура өлчөгүчүнүн колдонуу боюнча колдонмосу

Introduction

This manual provides detailed instructions for the operation, calibration, and maintenance of your YINMIK YK-4S 4-in-1 pH EC TDS Temperature Meter. This device is designed for accurate measurement of pH, Electrical Conductivity (EC), Total Dissolved Solids (TDS), and temperature in various water solutions, including hydroponic systems, aquariums, pools, and drinking water. Proper use and maintenance will ensure optimal performance and longevity of the meter.

Figure 1: YINMIK YK-4S 4-in-1 pH EC TDS Temperature Meter.

Кутуда эмне бар

Таңгактан чыгаргандан кийин, төмөнкү нерселердин бардыгы камтылганын текшериңиз:

• YINMIK YK-4S pH EC TDS Temperature Meter
• Instruction Manual
• pH Calibration Powder (6 packets: 7.00, 4.00, 10.01)
• Hydroponic Guide Card
• LR44 Batteries (pre-installed or included separately)

Продукт бүттүview

The YINMIK YK-4S is a versatile 4-in-1 water quality tester, capable of measuring pH, EC, TDS, and temperature. Key features include:

• Өлчөө функциялары: pH (0.01-14.00), EC (0-9990 µS/cm; 10.01-19.99 mS/cm), TDS (0-9990 ppm), Temperature (32.0-122.0°F / 0.0-50.0°C).
• Upgraded Probe: Provides more stable and precise readings with 0.01 pH resolution.
• ЖК жарык экраны: Ар кандай жарык шарттарында так окулушун камсыз кылат.
• Температураны автоматтык компенсациялоо (ATC): Maintains reading consistency across a temperature range of 32°F to 122°F (0°C to 50°C).
• Replaceable Probe: Reduces long-term maintenance costs.
• Автоматтык өчүрүү: Powers off after 5 minutes of inactivity to conserve battery life.

Figure 2: The YK-4S meter features a replaceable probe for extended usability.

Figure 3: The upgraded probe design enhances measurement accuracy and stability.

Жайгашуу

1. Батарея орнотуу: The meter requires 1 LR44 battery, which is typically included and pre-installed. If not, open the battery compartment and insert the battery with the correct polarity.
2. Коргоочу капкагын алып салуу: Carefully remove the white protective cap from the bottom of the meter to expose the electrode.
3. Күйгүзүү: басыңыз КҮЙГҮЗҮҮ/ӨЧҮРҮҮ button to turn on the meter. The display will illuminate.

Figure 4: Visual guide for initial setup and use.

Операция

1. Өлчөөлөрдү алуу:
   • Ensure the meter is powered on and the protective cover is removed.
   • Immerse the electrode into the liquid to be tested. Do not exceed the highest immersion line marked on the probe.
   • Gently stir the meter and wait for the reading to stabilize on the display.
2. Switching Measurement Modes (pH, EC, TDS):
   • басыңыз MODE/CAL button to cycle through pH, EC (µS/cm), and TDS (ppm) modes.
   • Учурдагы режим дисплейде көрсөтүлөт.
3. Температураны өзгөртүү бирдиктери (°C/°F):
   • көпкө басыңыз КАРУУ/ТЕМП Цельсий (°C) менен Фаренгейттин (°F) ортосунда которулуу үчүн баскыч.
4. кармап туруу функциясы:
   • басыңыз КАРУУ/ТЕМП button briefly to lock the current reading on the display. This is useful for recording measurements.
   • Press it again to release the hold and resume live readings.

Figure 5: Measuring pH in a hydroponic solution.

Figure 6: Measuring EC in a hydroponic solution.

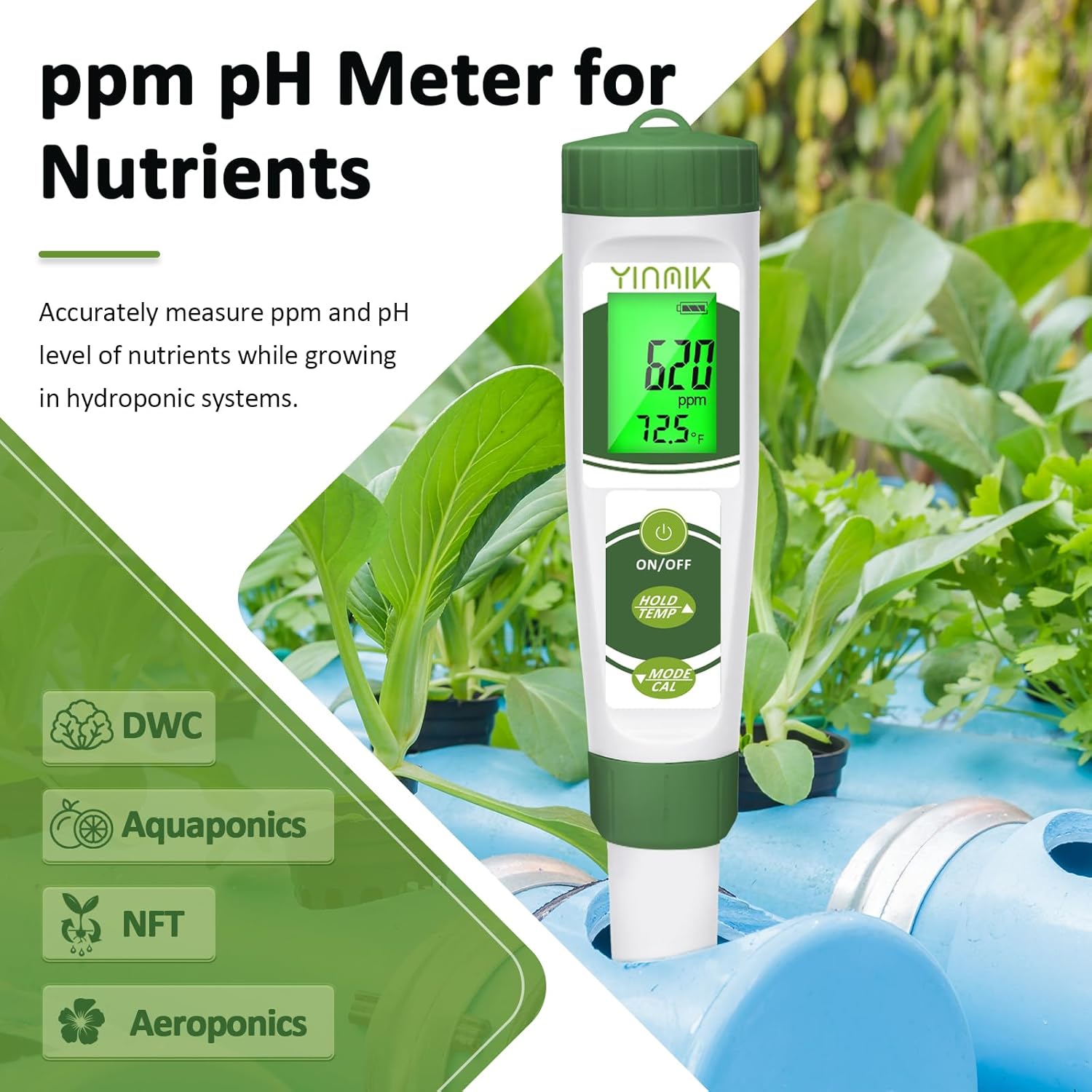

Figure 7: Measuring PPM for nutrient solutions in various hydroponic systems.

Figure 8: The YK-4S meter can be used for testing various water types including garden, tap, well, and filtered water.

Figure 9: Displaying pH, EC, and TDS measurement ranges.

Figure 10: Temperature unit conversion and backlight display for clear readings.

Калибрлөө

Regular calibration is crucial for maintaining the accuracy of your YINMIK YK-4S meter. The meter comes pre-calibrated for EC/TDS, but pH calibration is recommended before first use and periodically thereafter.

рН калибрлөө

The YK-4S meter uses 7.00, 4.00, and 10.01 pH buffer solutions for calibration. It is recommended to perform a 3-point calibration for best accuracy.

1. Prepare the pH buffer solutions (7.00, 4.00, 10.01) by dissolving the powder packets in distilled water according to their instructions.
2. Clean the electrode with purified water and gently blot dry with a clean tissue.
3. Turn on the meter and switch to pH mode by pressing MODE/CAL.
4. Электродду 7.00 рН буфердик эритмеге малыңыз.
5. Wait for the pH reading to stabilize.
6. көпкө басыңыз MODE/CAL button for 5 seconds until "CAL" appears and the 7.00 value starts blinking. Release the button.
7. 7.00 маанисинин жымыңдап күйүшүн токтотуп, турукташын күтүңүз. Бул 7.00 pH калибрлөөсү ийгиликтүү болгонун билдирет.
8. Clean the electrode with purified water and blot dry.
9. Repeat steps 4-8 for the 4.00 pH buffer solution.
10. Repeat steps 4-8 for the 10.01 pH buffer solution.

EC/TDS калибрлөө

The YK-4S meter is pre-calibrated for EC/TDS. If recalibration is necessary, use 1413 µS/cm and 12.88 mS/cm (or 12880 µS/cm) EC calibration solutions.

1. Clean the electrode with purified water and gently blot dry.
2. Turn on the meter and switch to EC mode (µS/cm) by pressing MODE/CAL.
3. Immerse the electrode into the 1413 µS/cm EC calibration solution.
4. Wait for the EC reading to stabilize.
5. көпкө басыңыз MODE/CAL button for 5 seconds until "CAL" appears and the value starts blinking. Release the button.
6. колдонуу MODE/CAL (down arrow) and КАРУУ/ТЕМП (up arrow) buttons to adjust the displayed value to 1413 µS/cm.
7. Wait for the value to stop blinking. This indicates successful 1413 µS/cm EC calibration.
8. Clean the electrode with purified water and blot dry.
9. Repeat steps 3-8 for the 12.88 mS/cm (12880 µS/cm) EC calibration solution, adjusting the value accordingly.

Техникалык тейлөө

Proper maintenance ensures the accuracy and lifespan of your meter.

• Пробду тазалоо: After each use, rinse the electrode thoroughly with purified or distilled water. Gently wipe off any excess water with a clean, soft tissue. Do not rub the electrode vigorously.
• Сактагыч: Always replace the protective cap after use to prevent the electrode from drying out or being damaged. Store the meter in a cool, dry place. For long-term storage, ensure the pH electrode is kept moist, ideally with a few drops of pH electrode storage solution in the cap.
• Зондду алмаштыруу: The YK-4S features a replaceable probe. If the readings become consistently unstable or inaccurate despite proper cleaning and calibration, the probe may need to be replaced. Replacement probe kits are available from YINMIK.
• Батареяны алмаштыруу: When the battery indicator on the display shows low power, replace the LR44 battery.

Проблемаларды чечүү

If you encounter issues with your YINMIK YK-4S meter, consider the following:

• Туура эмес окуулар:
  • Ensure the meter has been recently calibrated, especially for pH.
  • Clean the electrode thoroughly. Residue can affect accuracy.
  • Verify that the temperature of the solution is within the Automatic Temperature Compensation (ATC) range.
  • For pH readings, ensure the probe is fully immersed and gently stirred until the value stabilizes. Some solutions may require a longer stabilization time.
• No Display/Flickering Display:
  • Батареянын деңгээлин текшериңиз жана керек болсо алмаштырыңыз.
  • Батареялар туура полярдуулук менен туура орнотулганын текшериңиз.
• Зонддун зыяны: If the pH sensor bulb is visibly damaged or broken, the probe will need to be replaced.

If problems persist after attempting these steps, please contact YINMIK customer support.

Техникалык шарттар

Кепилдик жана колдоо

YINMIK is committed to providing quality products and customer satisfaction. If you have any questions or encounter issues during the use of your YK-4S meter, please do not hesitate to contact us. Our customer support team aims to reply within 12 hours.

For accessories such as pH calibration powder, pH calibration solution, EC calibration liquid, and replacement probe kits, please visit the official YINMIK Store.

Сураныч, кепилдик дооматтар үчүн сатып алуу далилиңизди сактап коюңуз.
