Baseus Nomos 160W 5-in-1 Charging Station User Manual

1. Киришүү

Thank you for choosing the Baseus Nomos 160W 5-in-1 Charging Station. This device is designed to provide a comprehensive and efficient charging solution for multiple electronic devices, including laptops, tablets, and smartphones. Featuring GaN technology, Qi2 certified wireless charging, and a retractable cable, it aims to simplify your charging experience and declutter your workspace.

Please read this manual carefully before using the product to ensure proper operation and to maximize its lifespan. Keep this manual for future reference.

2. Продукт бүтүп калдыview

The Baseus Nomos 160W Charging Station integrates multiple charging technologies into a compact design:

• 160W жалпы чыгаруу: Efficiently charges up to five devices simultaneously.
• Qi2 Certified 15W Magnetic Wireless Charger: Provides fast and precise magnetic alignment for compatible iPhones (12-16 series).
• 100W Retractable USB-C Cable: Built-in 80cm (2.6ft) braided cable for convenient and tidy charging.
• Бир нече порттор: Includes 3 USB-C ports and 1 USB-A port for versatile connectivity.
• GaN технологиясы: Ensures high efficiency and a compact form factor.
• BPS3.0 Smart Power Allocation: Intelligently distributes power to connected devices for optimal charging speed and safety.

Image: The Baseus Nomos 160W Charging Station shown powering a laptop, tablet, smartphone, and earbuds simultaneously, demonstrating its multi-device charging capability.

3. Орнотуу нускамалары

1. Аппаратты таңгактан чыгаруу: Carefully remove the charging station and any included accessories from its packaging.
2. Кубатка туташуу: Plug the provided AC power cord into the charging station's power input, then connect the other end to a standard wall outlet.
3. Позициялоо: Place the charging station on a stable, flat surface. Ensure adequate ventilation around the device. The anti-slip silicone pad on the bottom helps secure its position.
4. Тартылуучу кабель: To use the built-in retractable USB-C cable, gently pull it out to the desired length (up to 80cm / 2.6ft). To retract, pull the cable again slightly, and it will smoothly coil back into the station.
5. Зымсыз кубаттоочу стенд: The Qi2 wireless charging pad can be adjusted for optimal viewing angles. Simply tilt the magnetic pad to your preferred position.

Image: The Baseus Nomos 160W Charging Station showcasing its integrated retractable USB-C cable, extended for use, highlighting its cable management feature.

4. Иштөө нускамалары

The Baseus Nomos Charging Station is designed for intuitive use. Simply connect your devices to the appropriate ports or place them on the wireless charging pad.

4.1 Wired Charging (USB-C & USB-A)

• USB-C порттору: Connect your USB-C compatible devices (laptops, tablets, phones) to the USB-C1, USB-C2, or USB-C3 ports. USB-C1 supports up to 100W, while USB-C2/C3 can deliver up to 140W each when used individually.
• USB-A порту: Connect your USB-A compatible devices to the USB-A port. This port supports up to 18W.
• Тартылуучу кабель: Utilize the built-in retractable USB-C cable for convenient charging of compatible devices.

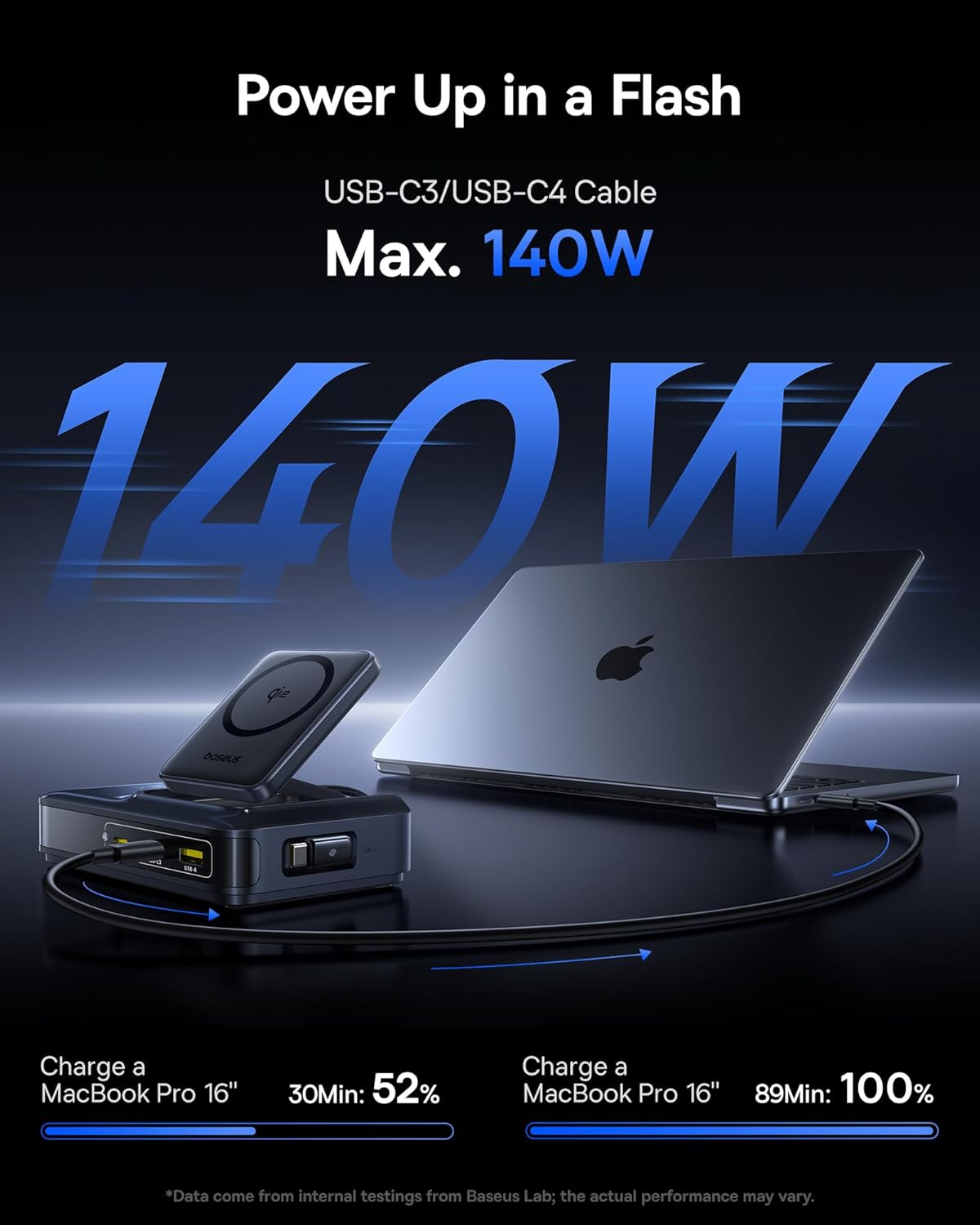

Image: A MacBook Pro 16-inch being charged by the Baseus Nomos 160W Charging Station via a USB-C cable, illustrating its high-power output capability.

4.2 Wireless Charging (Qi2)

• Жайгашкан жери: Place your Qi2-compatible iPhone (12-16 series) onto the magnetic wireless charging pad. The magnets will automatically align your device for optimal charging.
• Иштин шайкештиги: The wireless charger is compatible with phone cases up to 3mm thick.
• Заряддоо көрсөткүчү: The device will indicate when wireless charging is active (e.g., via a light indicator or on your phone screen).

Image: An iPhone being wirelessly charged on the magnetic pad of the Baseus Nomos 160W Charging Station, demonstrating the Qi2 fast wireless charging feature.

4.3 Smart Power Allocation (BPS3.0)

The charging station features BPS3.0 technology, which intelligently detects the power requirements of each connected device and allocates the optimal power output. This ensures efficient and safe charging across all ports simultaneously, preventing overcharging or damage.

5. Коопсуздук өзгөчөлүктөрү

The Baseus Nomos Charging Station incorporates multiple safety mechanisms to protect your devices and the charger itself:

• Ашыкча ток коргоо: Ашыкча токтун зыянын алдын алат.
• Ашык-томtage Коргоо: Коргоо чаралары томtage шиптер.
• Кыска туташуулардан коргоо: Кыска туташуу болгон учурда автоматтык түрдө электр кубатын өчүрөт.
• Ашыкча температурадан коргоо: Ашыкча ысып кетүүнүн алдын алуу үчүн ички температураны көзөмөлдөйт жана жөнгө салат.

Сүрөт: жарылган view of the Baseus Nomos 160W Charging Station, illustrating the GaN chip and various internal components responsible for its efficient and safe operation, including icons for over-current, over-voltagд, кыска туташуулардан жана ашыкча температурадан коргоо.

6. Техникалык тейлөө

• Тазалоо: Disconnect the charging station from the power outlet before cleaning. Use a soft, dry cloth to wipe the surface. Do not use liquid cleaners or aerosols.
• Сактагыч: When not in use for extended periods, store the device in a cool, dry place away from direct sunlight and moisture.
• Кабельге кам көрүү: Avoid excessive force when pulling or retracting the built-in cable. Ensure the cable is not kinked or pinched.
• Тоскоолдуктарды болтурбоо: Do not block the ventilation openings on the charging station, as this can lead to overheating.

7. Кыйынчылыктарды

• Түзмөк кубатталбай жатат:
  • Кубаттоочу станциянын иштеп жаткан розеткага туура сайылганын текшериңиз.
  • Check if the charging cable is securely connected to both the charging station and your device.
  • Verify that your device is compatible with the charging port or wireless charging standard.
  • Try a different cable or port to rule out a faulty connection.
• Жай кубаттоо:
  • Confirm your device supports fast charging protocols (e.g., PD3.1, QC4, PPS) and that you are using a compatible cable.
  • The charging station intelligently allocates power. If multiple high-power devices are connected, the output to individual ports may be adjusted.
  • For wireless charging, ensure proper alignment of your device on the pad and that your phone case is not too thick (max 3mm).
• Ашыкча ысып кетүү:
  • Ensure the charging station has adequate ventilation and is not covered.
  • If the device feels excessively hot, disconnect it from power and all devices immediately. Contact support if the issue persists.
• Retractable Cable Not Working:
  • Gently pull the cable again to trigger the retraction mechanism.
  • Ensure there are no obstructions preventing the cable from retracting.

8. Техникалык шарттар

9. Кепилдик жана колдоо

Baseus products are manufactured to high-quality standards. This product is covered by a manufacturer's warranty against defects in materials and workmanship from the date of purchase. The specific warranty period may vary by region and retailer.

For warranty claims, technical support, or product inquiries, please contact the retailer where you purchased the product or visit the official Baseus webкардарларды тейлөө маалымат сайты.

Онлайн колдоо: www.baseus.com

Сураныч, кепилдик максаттары үчүн сатып алганыңыздын далилин сактап коюңуз.
