1. Киришүү
Thank you for choosing the Philips 72W 7400LM LED Security Light. This manual provides essential information for the safe installation, operation, and maintenance of your new outdoor security light. Please read these instructions thoroughly before installation and retain them for future reference.
2. Коопсуздук маалыматы
- Always turn off the power at the circuit breaker before beginning installation or performing any maintenance.
- Орнотуу процессине ишенбесеңиз, квалификациялуу электрикке кайрылыңыз.
- Бардык электр туташууларынын коопсуз экенин жана жергиликтүү электрдик коддорго ылайык болушун текшериңиз.
- Do not attempt to modify the light fixture. Any modifications may void the warranty and create safety hazards.
- This product is designed for outdoor use and is waterproof. However, ensure proper sealing during installation to maintain its water resistance.
- Avoid looking directly into the LED light source when it is illuminated, as it may cause eye strain or damage.
3. Пакеттин мазмуну
Орнотуудан мурун бардык компоненттер бар экендигин текшериңиз:
- Philips 72W 7400LM LED Security Light Fixture
- Орнотуу жабдуулары (бурамалар, зым гайкалар, прокладка)
- Instruction Manual
4. Продукт бүтүп калдыview
The Philips LED Security Light features three adjustable heads, a highly sensitive motion sensor, and a durable aluminum housing designed for optimal outdoor performance.
Figure 4.1: Philips 72W 7400LM LED Security Light
Figure 4.2: Key Features of the Security Light
Негизги өзгөчөлүктөрү:
- Жогорку жарыктык: 7400 lumens of 5000K daylight white light.
- Жөнгө салынуучу баштар: Three rotatable LED heads for customizable coverage.
- Күүгүмдөн таңга чейин сенсор: Automatic operation based on ambient light levels.
- Кыймыл сенсору: Detects movement for enhanced security.
- Туруктуу курулуш: Aluminum body with efficient heat dissipation.
- Аба ырайына туруктуу: Коррозияга, датка, катуу жамгырга, нымдуулукка, ультрафиолет нурларына жана экстремалдык температурага туруктуулугу текшерилген.
5. Орнотуу боюнча нускамалар
Follow these steps for safe and proper installation of your security light.
5.1 Монтаждалуучу жер
- Choose a mounting location that provides optimal coverage for the desired area.
- Ensure the motion sensor is not obstructed and has a clear line of sight to the detection area.
- Mount the fixture at a height that allows for effective motion detection and light distribution, typically 6-10 feet (1.8-3 meters) above the ground.
5.2 Mounting Methods
The security light supports both wall mounting and eave mounting.

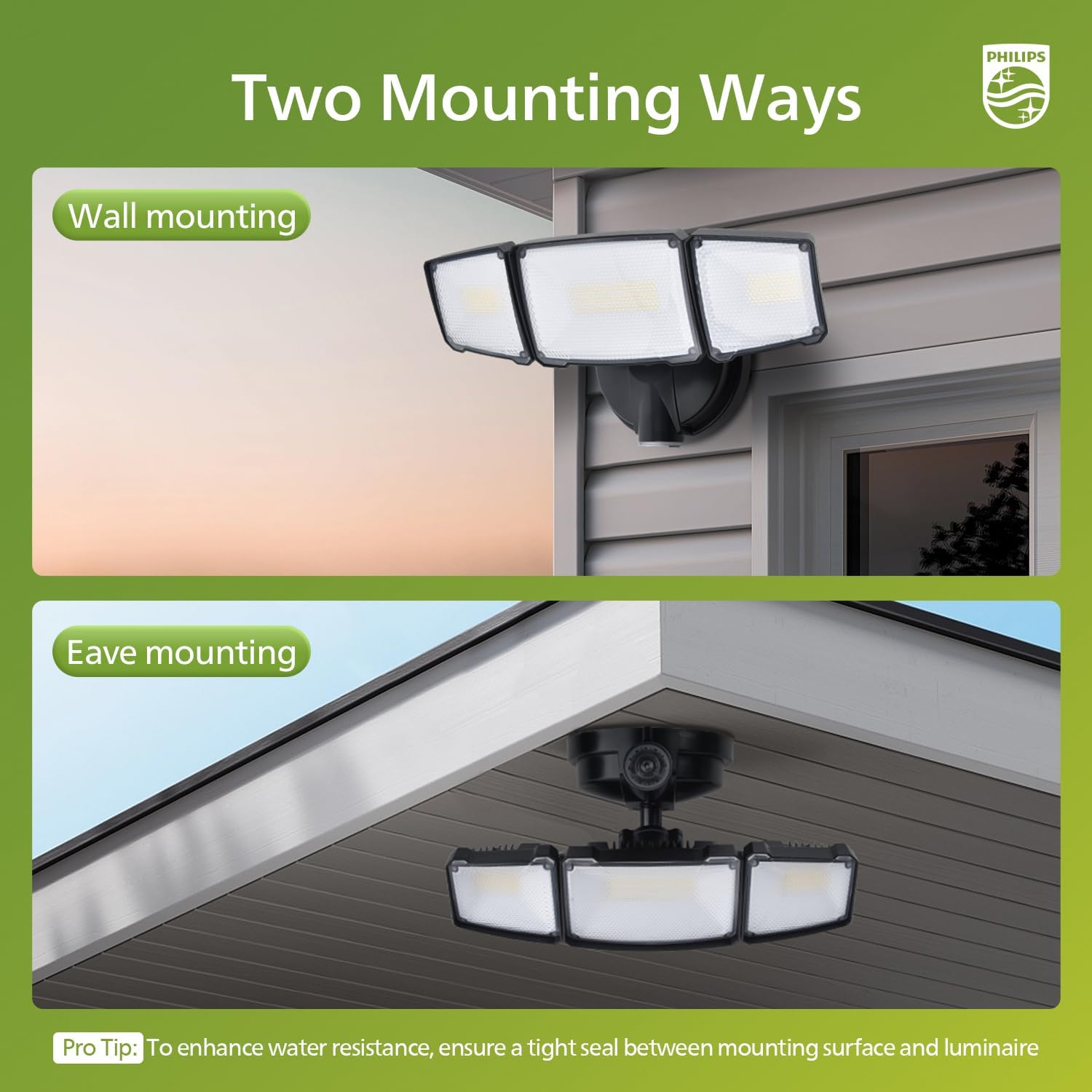

Figure 5.1: Wall Mounting and Eave Mounting Options
- Зымдарды даярдоо: Turn off power at the circuit breaker. Connect the household wiring to the fixture's wiring (black to black, white to white, ground to ground) using wire nuts.
- Монтаждоо плитасын бекитүү: Берилген бурамалар аркылуу монтаждоо плитасын бириктирүүчү кутуга бекитиңиз.
- Монтаждык арматура: Attach the light fixture to the mounting plate. Ensure a tight seal between the mounting surface and the luminaire to enhance water resistance.
- Баштарды тууралоо: Loosen the screws on the adjustable heads to position them as desired, then tighten the screws to secure.
- Күчтү калыбына келтирүү: Электрди өчүргүчтөн кайра күйгүзүңүз.
6. Иштөө нускамалары
Your Philips LED Security Light offers various operating modes for different needs.
6.1 Motion Sensor
The integrated motion sensor detects movement within its range and angle.
Figure 6.1: Motion Sensor Detection Range and Angle
- аныктоо бурчу: 180 градус.
- Максималдуу сезүү диапазону: 69 фут (21 метр) чейин.
- The sensor head is also adjustable by 180 degrees to fine-tune the detection area.
6.2 Жарык режимдери
The light features four distinct operating modes:

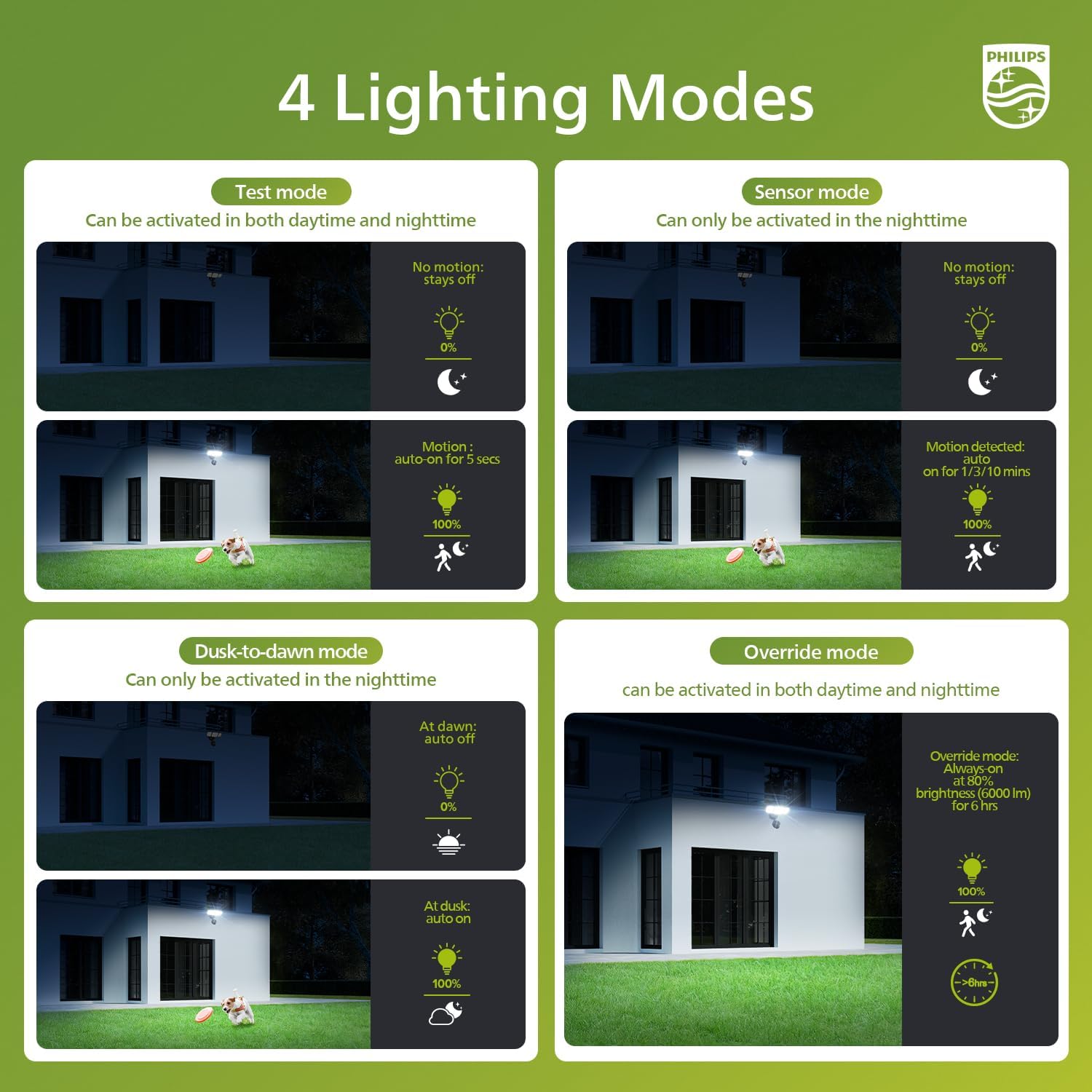

Figure 6.2: ашыкview of 4 Lighting Modes
- Сыноо режими: Can be activated in both daytime and nighttime. Light turns on for 5 seconds upon motion detection, then off. Useful for testing sensor functionality and coverage.
- Сенсор режими: Activates only at nighttime. Light turns on for 1/5/10 minutes (adjustable, refer to specific model settings if available) upon motion detection, then off.
- Күүгүмдөн таң атканга чейинки режим: Activates only at nighttime. Light automatically turns on at dusk and off at dawn, providing continuous illumination throughout the night.
- жокко чыгаруу режими: Can be activated in both daytime and nighttime. Provides 6 hours of continuous 100% brightness (7400 LM).
6.3 Manual Override Mode
The Manual Override Mode allows you to temporarily keep the light on continuously.
Figure 6.3: Manual Override Mode Activation and Deactivation
- Жандыруу үчүн: Switch the light OFF and ON 2 times within 3 seconds. The light will activate for 6 hours at 100% brightness. After approximately 13 minutes, it will dim to 80% brightness.
- Өчүрүү үчүн: Switch the light OFF and ON more than 3 seconds apart. This will return the light to its previous sensor mode. The light will also automatically return to sensor mode after 6 hours.
6.4 Dusk-to-Dawn Operation
The built-in photocell sensor automatically manages the light's operation based on ambient light.

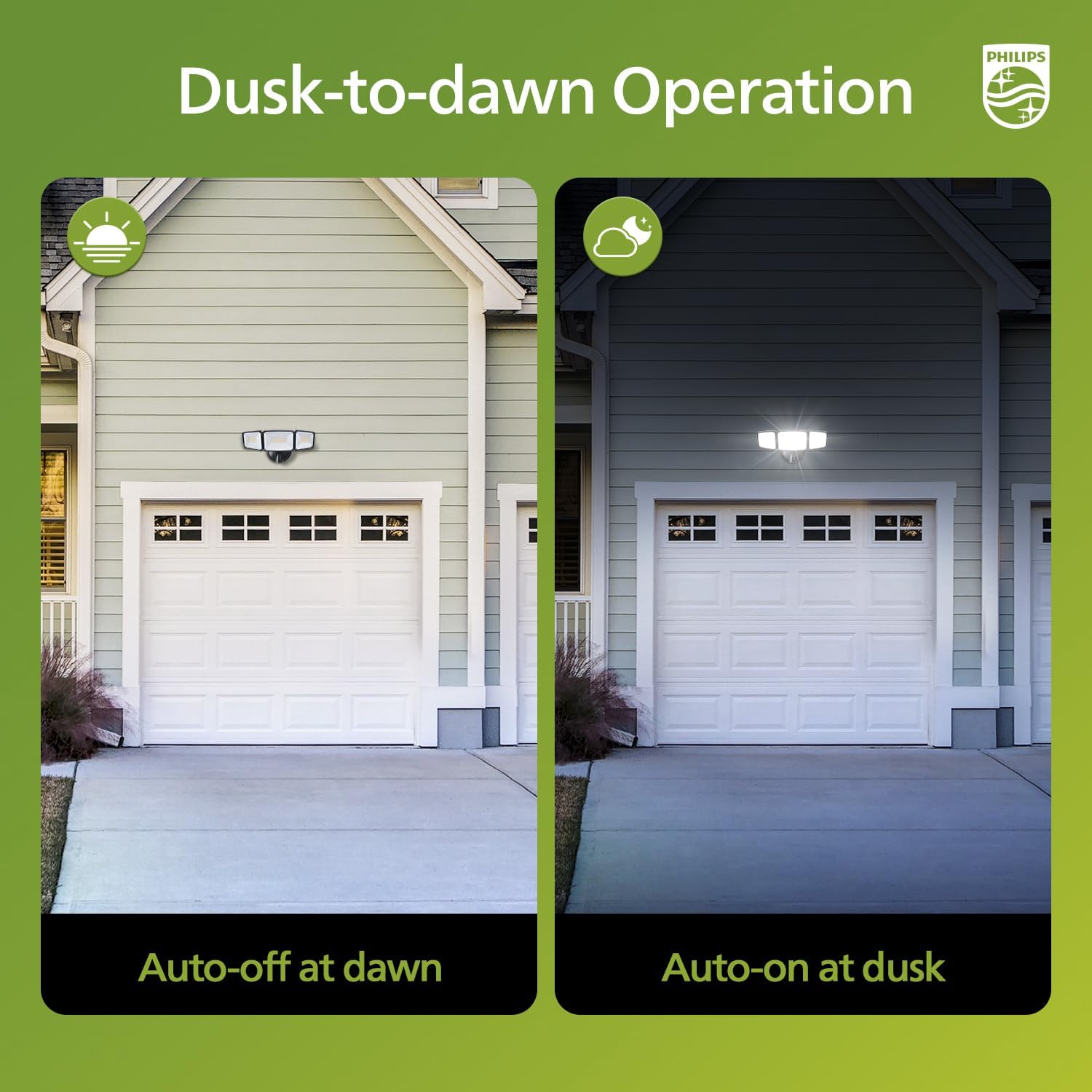

Figure 6.4: Dusk-to-Dawn Automatic Operation
- Auto-on at Dusk: The light will automatically turn on when the ambient light level drops (e.g., at sunset).
- Auto-off at Dawn: The light will automatically turn off when the ambient light level rises (e.g., at sunrise).
7. Техникалык тейлөө
Regular maintenance ensures optimal performance and longevity of your security light.
- Тазалоо: Clean the light fixture periodically with a soft, damp кездеме. Абразивдүү тазалоочу каражаттарды же эриткичтерди колдонбоңуз, анткени алар каптамага же электрдик компоненттерге зыян келтириши мүмкүн.
- Текшерүү: Periodically inspect the wiring and mounting hardware for any signs of wear, damage, or loosening. Tighten connections as needed.
- Sensor Clarity: Ensure the motion sensor lens is clean and free from obstructions (e.g., dirt, spiderwebs) to maintain optimal detection performance.
8. Кыйынчылыктарды
Коопсуздук жарыгыңызда көйгөйлөргө туш болсоңуз, төмөнкү жалпы көйгөйлөрдү жана чечимдерди караңыз:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Жарык күйбөйт. | No power, faulty wiring, sensor obstructed, incorrect mode. | Check circuit breaker. Verify wiring connections. Clear sensor. Ensure light is not in 'OFF' state or 'Dusk-to-Dawn' during daytime. |
| Жарык тынымсыз күйүп турат. | Continuous motion detected, override mode active, sensor malfunction. | Check for constant motion in sensor's field of view. Deactivate override mode (refer to Section 6.3). If problem persists, contact support. |
| Жарык жаркылдайт же жарк этет. | Loose wiring, power fluctuations, faulty LED driver. | Turn off power and check all wiring connections. If problem persists, contact support. |
| Кыймыл сенсору аныкталбай жатат. | Sensor obstructed, incorrect sensitivity setting (if applicable), sensor angle incorrect. | Clear any obstructions from the sensor lens. Adjust sensor angle. Ensure light is in 'Sensor Mode' or 'Test Mode'. |
9. Техникалык шарттар
Technical details for the Philips 72W 7400LM LED Security Light:

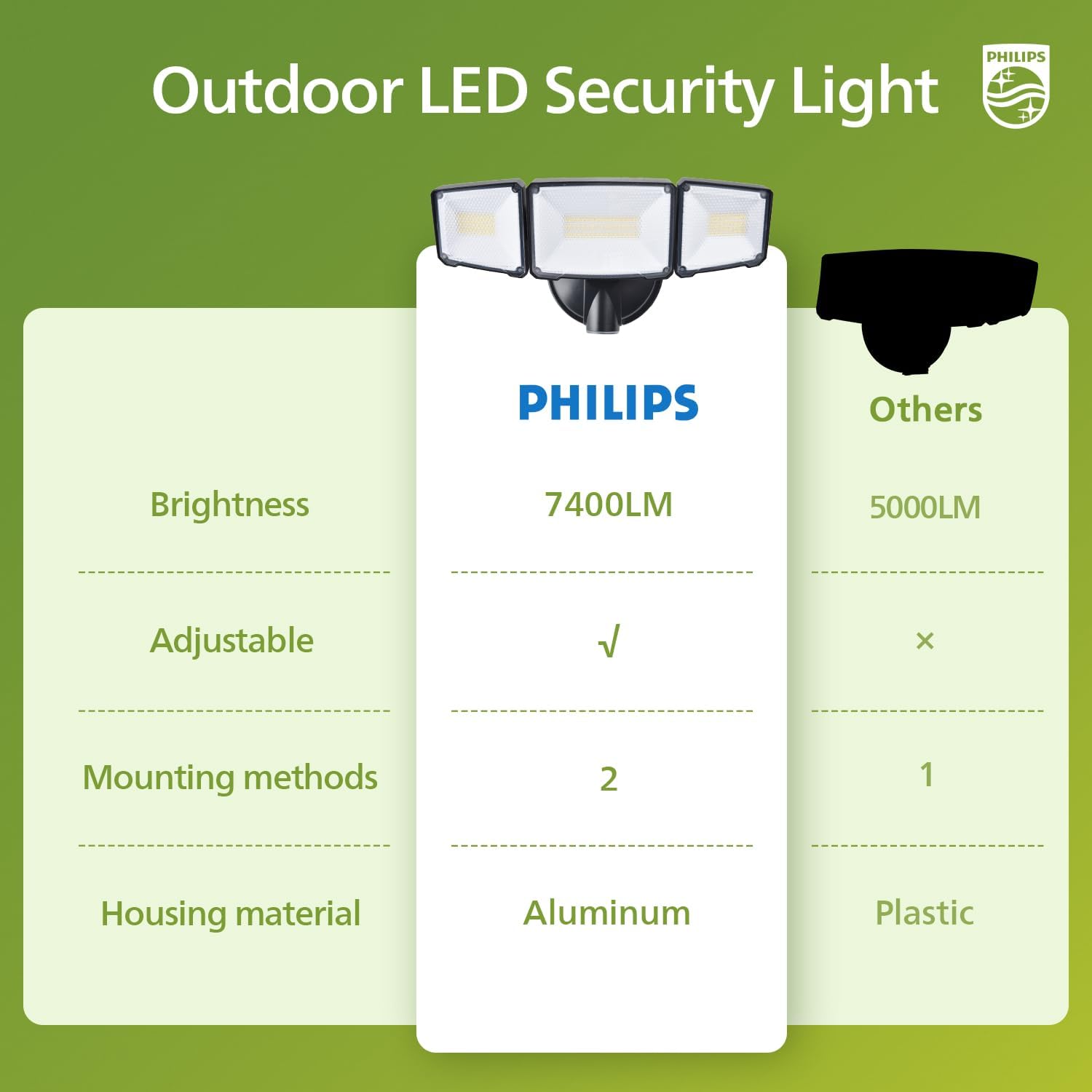

9.1-сүрөт: Продукциянын мүнөздөмөлөрү аяктадыview
| Өзгөчөлүк | Спецификация |
|---|---|
| Бренд | Philips |
| Модел | 72W 7400LM LED Security Light |
| Жарыктык | 7400 Lumens |
| Түс температурасы | 5000K Күндүзгү жарык |
| Ватtage | 72 Вт |
| Жөнгө салынуучу баштар | Yes (3 heads) |
| Motion Sensor | 180° detection, up to 69 ft range |
| Күүгүмдөн таңга чейин функциясы | Ооба |
| Турак жай материалы | Алюминий |
| Суу каршылык | Waterproof (suitable for outdoor use) |
| Монтаждоо ыкмалары | Wall, Eave |
10. Кепилдик жана колдоо
Philips products are manufactured to the highest quality standards. This product comes with a limited warranty against defects in materials and workmanship. For specific warranty details, please refer to the warranty card included with your product or visit the official Philips webсайт.
For technical support, troubleshooting assistance, or to inquire about replacement parts, please contact Philips customer service through their official webсайт же продукт таңгагында көрсөтүлгөн байланыш маалыматы.
