1. Маанилүү коопсуздук көрсөтмөлөрү
Before operating your Caroma Peak Electric Scooter, please read and understand all safety instructions. Failure to follow these guidelines may result in serious injury or property damage.
- Минип баратканда ар дайым туулга жана тиешелүү коопсуздук шайманын (тизе, чыканак) кийиңиз.
- Ар бир жүрүштөн мурун бардык болттордун жана тез ачылуучу бекиткичтердин бекем бекитилгенин текшериңиз.
- Do not ride in heavy traffic, on slippery surfaces, or in adverse weather conditions.
- Коопсуз ылдамдыкты жана башка унаалардан жана жөө жүргүнчүлөрдөн аралыкты сактаңыз.
- Электр скутерди колдонууга байланыштуу жергиликтүү мыйзамдар жана эрежелер менен таанышыңыз.
- The maximum weight limit for this scooter is 265 pounds.
- This scooter is designed for adults and teens. Supervise younger riders if a child seat is installed.
Warning: Always keep the scooter power off when charging to prevent battery protection activation and abnormal charging.
2. Продукт бүтүп калдыview
The Caroma Peak Electric Scooter (Model Z2) is designed for efficient commuting and recreational use. It features an 800W peak motor, a comfortable seat, and a detachable basket.

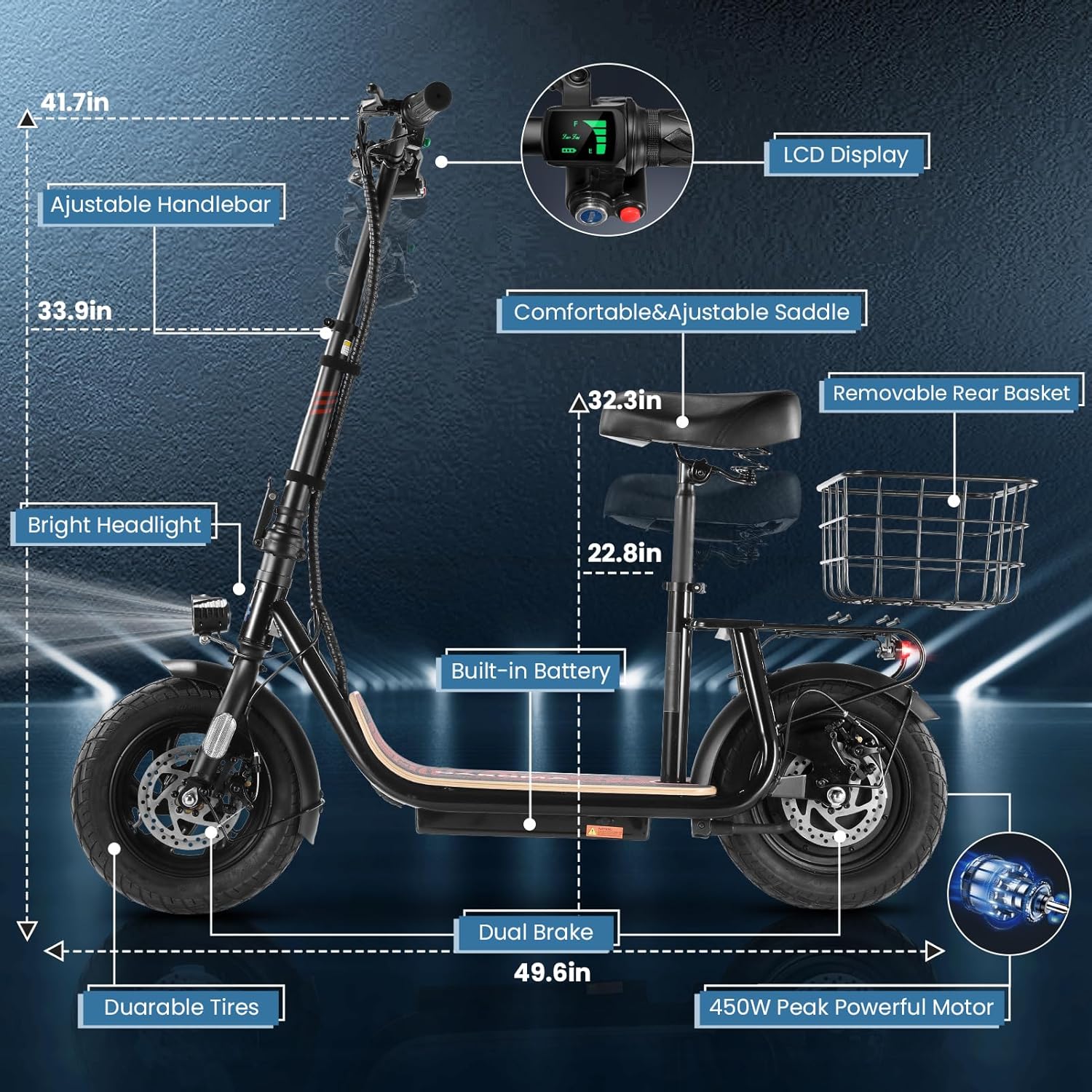

Figure 2.1: Scooter Component Diagram. This image displays the Caroma Peak Electric Scooter with various parts labeled, including the adjustable handlebar, LCD display, comfortable adjustable saddle, removable rear basket, built-in battery, dual brakes, durable tires, and 450W peak powerful motor (note: product description states 800W peak motor, diagram may show a different variant's motor power). Key dimensions are also indicated.
Негизги өзгөчөлүктөрү:
- Күчтүү мотор: 800W peak motor for inclines up to 15° and speeds up to 20 MPH.
- Узак аралыкка батарея: 48V battery provides up to 25 miles range on a single charge.
- Comfortable Riding: 8"x15.5" wide deck, all-terrain tires for shock absorption, and a soft, adjustable seat.
- Коопсуздук өзгөчөлүктөрү: Dual disc brakes, responsive horn, bright front and rear lights.
- Ыңгайлуулугу: Detachable large basket, foldable handle, and adjustable handlebar for various body types.
3. Орнотуу жана чогултуу
Your Caroma Peak Electric Scooter is 90% pre-assembled. Follow these steps for final assembly.
3.1 Кутудан чыгаруу жана алгачкы текшерүү
- Бардык компоненттерди таңгактан кылдаттык менен алып салыңыз.
- Check for any visible damage during transit. Contact customer support immediately if damage is found.
- Verify all included components against the packing list.
3.2 Рулду орнотуу
- Unfold the scooter frame and secure the main stem.
- Attach the handlebar to the stem, ensuring all cables are not pinched.
- Tighten all handlebar screws firmly using the provided tools.
3.3 Seat and Basket Attachment
- Insert the seat post into the designated slot and adjust to a comfortable height. Secure with the quick-release lever.
- Attach the rear basket to the scooter frame using the provided hardware. Ensure it is stable and secure.
Figure 3.1: Detachable Rear Basket. This image illustrates the large capacity and removable nature of the rear basket, suitable for carrying various items for commuting, shopping, or travel.
3.4 Баштапкы төлөм
Before first use, fully charge the scooter's battery. Refer to the 'Charging & Battery Care' section for detailed instructions.
4. Иштөө нускамалары
4.1 Баштоо жана токтотуу
- Ачкычты от алдыргычка салып, аны "ON" абалына буруңуз.
- Check the battery level display on the handlebar.
- To start moving, gently push off with your foot and then engage the throttle.
- To stop, release the throttle and apply the dual disc brakes smoothly.
Figure 4.1: Handlebar Controls. This image highlights the easy-to-operate controls, including the clear battery level display, mechanical key for starting, and the responsive horn.
4.2 Adjusting Handlebar and Seat Height
The handlebar and seat height can be adjusted to suit different rider heights for optimal comfort and control.
- To adjust the handlebar, open the quick-release clamp on the stem, raise or lower the handlebar to the desired position, and securely close the clamp.
- To adjust the seat, open the quick-release clamp on the seat post, adjust the seat height, and securely close the clamp.
Figure 4.2: Adjustable Features. This image details the adjustable handlebar and comfortable seat, along with the battery level display and detachable basket, enhancing rider comfort and convenience.
4.3 Скутерди бүктөө
For easy transport and storage, the scooter can be folded.
- Скутердин өчүрүлгөнүн текшериңиз.
- Locate the folding mechanism on the main stem.
- Follow the instructions in the manual to release the locking mechanism and fold the stem down.
- Secure the folded position if a latch is present.
Figure 4.3: Folded Scooter for Transport. This image demonstrates the scooter's portability when folded, making it easy to store or transport in a vehicle.
5. Charging & Battery Care
Proper charging and battery care are essential for maximizing the lifespan and performance of your scooter's battery.
5.1 Заряддоо процедурасы
- Ensure the scooter is powered off before connecting the charger.
- Заряддагычты скутердеги заряддоо портуна туташтырыңыз.
- Заряддагычты стандарттуу электр розеткасына сайыңыз.
- Заряддагычтагы заряддоо индикатору адатта кубаттоо учурунда кызыл болуп, толук заряддалганда жашыл болуп күйөт.
- Толук кубаттоо болжол менен 5.2 саатты талап кылат.

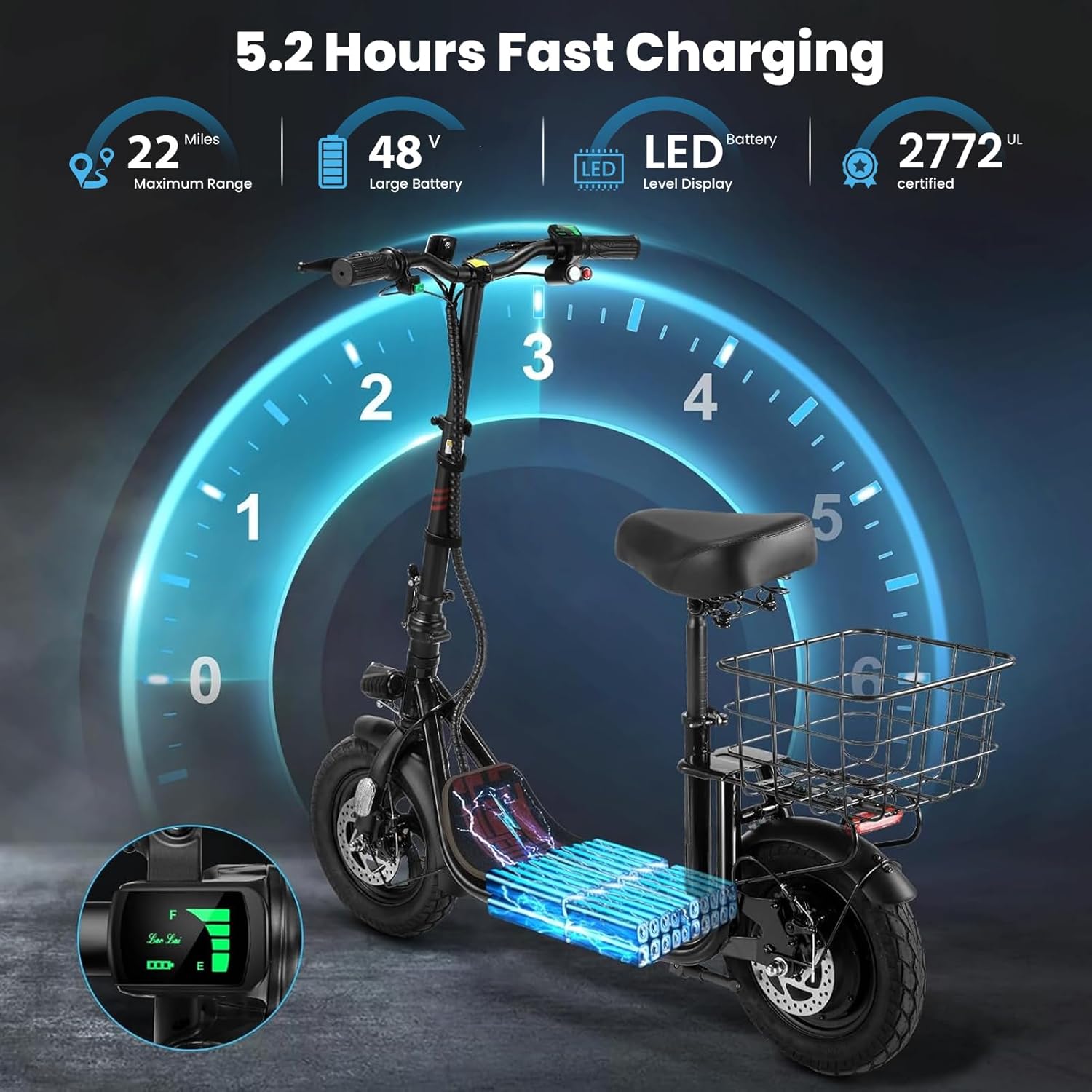

Figure 5.1: Charging Process. This image highlights the 5.2-hour fast charging capability, 48V large battery, LED level display, and UL 2272 certification, with a close-up of the battery indicator showing a full charge.
5.2 Battery Maintenance Tips
- Заряддоодон мурун батарейканы толугу менен түгөтүп жибербеңиз.
- Store the scooter in a cool, dry place when not in use, and ensure the battery is partially charged (around 50-70%) for long-term storage.
- Батареяны экстремалдуу температурага калтырбаңыз.
6. Техникалык тейлөө
Үзгүлтүксүз техникалык тейлөө скутериңиздин узак жана коопсуз иштешин камсыздайт.
6.1 Тазалоо
- Скутерди жарнама менен сүртүңүзamp Ар бир сапардан кийин кирди жана таштандыларды кетирүү үчүн кездеме сүртүңүз.
- Avoid using high-pressure water jets or harsh chemicals, as these can damage electronic components.
6.2 Дөңгөлөктөргө кам көрүү
- Regularly check tire pressure and inflate to the recommended PSI (refer to tire sidewall for details).
- Inspect tires for wear, punctures, or damage. Replace worn tires promptly.
Figure 6.1: Wide and Durable Tires. This image emphasizes the scooter's robust tires, designed to adapt to various road conditions for stable and safe riding.
6.3 Brake System Check
- Periodically check the responsiveness of the dual disc brakes.
- Ensure brake levers are not loose and brake pads are not excessively worn.
- Adjust or replace brake components as needed by a qualified technician.
Figure 6.2: Dual Braking System. This image showcases the scooter's excellent dual disc braking system, designed for quick and smooth stopping power.
7. Кыйынчылыктарды
This section addresses common issues you might encounter with your Caroma Peak Electric Scooter.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Скутер күйбөйт | Low battery; Key not in 'ON' position; Loose connections | Charge battery; Ensure key is 'ON'; Check all connections |
| Scooter not charging | Scooter powered on during charging; Faulty charger; Battery protection activated | Ensure scooter is OFF during charging; Test charger; Contact support for battery reset video if needed |
| Кыскартылган аралык же ылдамдык | Дөңгөлөктүн басымынын төмөндүгү; Ашыкча жүктөм; Батареянын эскириши | Inflate tires to correct pressure; Reduce load; Contact support for battery inspection |
| Тормоз алсыз сезилет | Worn brake pads; Loose brake cable | Тормоз колодкаларын текшерип, алмаштырыңыз; Тормоз тросунун тартылышын жөнгө салыңыз |
If you encounter issues not listed here or if the suggested solutions do not resolve the problem, please contact Caroma customer service.
8. Техникалык шарттар
Technical specifications for the Caroma Peak Electric Scooter (Model Z2).
| Өзгөчөлүк | Спецификация |
|---|---|
| Бренд | Карома |
| Модель аты | Z2 |
| Мотор күчү | 800 Вт (чоку) |
| Максималдуу ылдамдык | 20 миль/саат |
| Макс диапазон | Up to 25 Miles (varies by usage) |
| Заряддоо убактысы | Болжол менен 5.2 саат |
| Салмагы Limit | 265 фунт |
| Wheel Size | 12 дюйм |
| Дөңгөлөк түрү | Пневматикалык |
| Frame Material | Алюминий |
| Тормоз стили | Rear Braking (Dual Disc) |
| Продукциянын өлчөмдөрү (LxWxH) | 47.2" x 9.1" x 23.2" |
| Өзгөчө өзгөчөлүк | Жөнгө салынуучу рулдун бийиктиги |
| Сертификаттар | UL 2272 тастыкталган |
9. Кепилдик жана колдоо
Caroma is committed to providing quality products and customer satisfaction.
9.1 Кепилдик маалыматы
This Caroma Peak Electric Scooter comes with a 1 жылдык чектелген кепилдик. The warranty covers manufacturing defects and material flaws under normal use. Please retain your proof of purchase for warranty claims.
9.2 Кардарларды колдоо
For any questions, concerns, or issues regarding your scooter, please contact our customer service team. We aim to provide professional service and resolve problems promptly.
- Электрондук почта колдоо: Биз менен электрондук почта аркылуу байланыша аласыз caromaservices@outlook.com.
- We strive to reply within 24 hours.
Figure 9.1: Customer Service Information. This image outlines Caroma's commitment to customer satisfaction, including a 12-month warranty and dedicated email support.
