Casfuy PWS-154 Stainless Steel Pet Water Fountain User Manual

Introduction

Thank you for choosing the Casfuy PWS-154 Stainless Steel Pet Water Fountain. This manual provides essential information for the safe and efficient operation, setup, and maintenance of your new pet water fountain. Please read these instructions carefully before use and retain them for future reference.

This fountain is designed to provide fresh, filtered water for your pets, encouraging hydration with its dual flow modes and quiet operation. Constructed from high-quality 304 stainless steel, it offers durability and ease of cleaning.

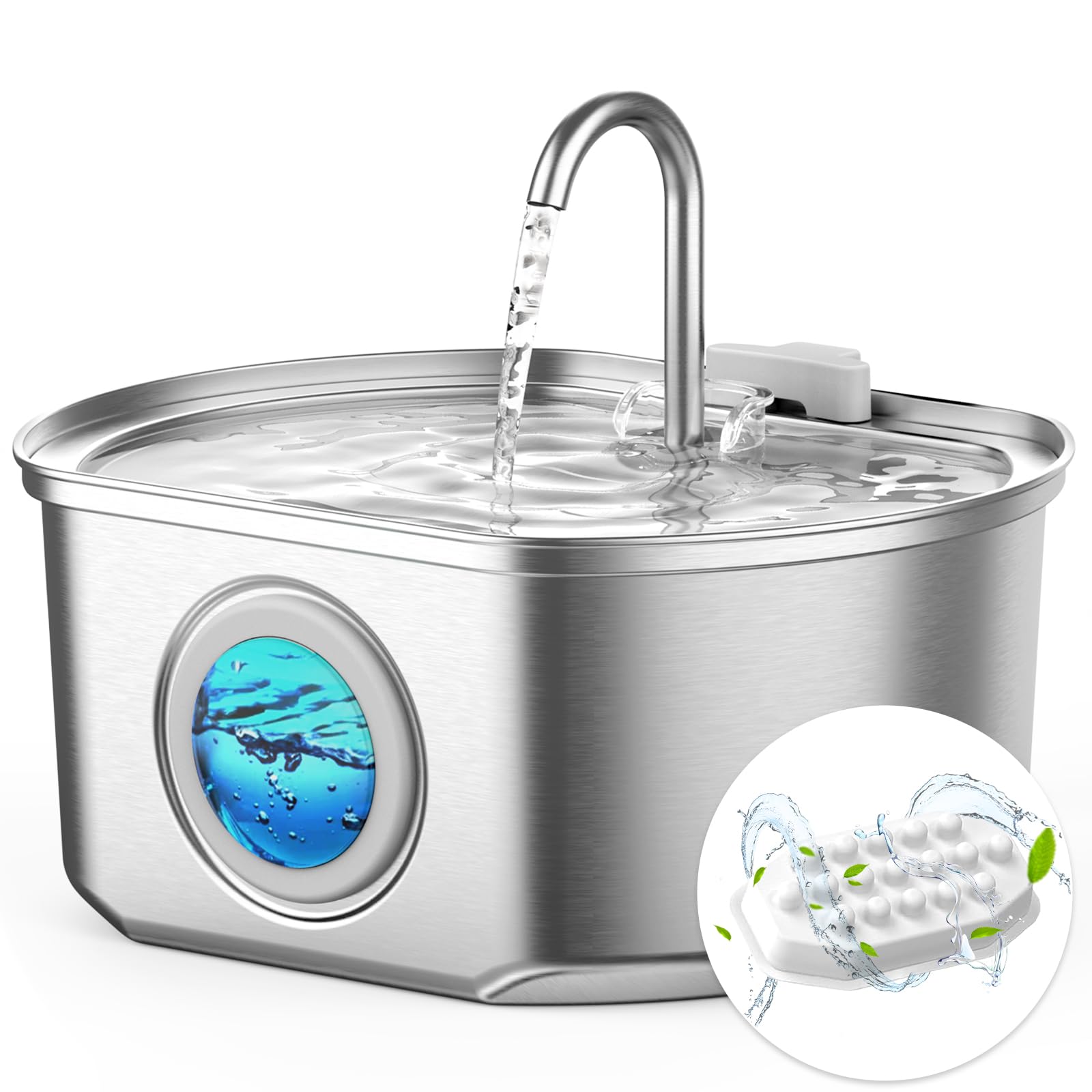

Image: The Casfuy PWS-154 Stainless Steel Pet Water Fountain fully assembled, showcasing анын кооз дизайны.

Пакеттин мазмуну

Сураныч, пакеттин мазмунун текшерип, бардык буюмдардын бар экенин жана бузулбаганын текшериңиз:

• 1 x Stainless Steel Water Tank
• 1 x Stainless Steel Top Cover
• 1 х Колдонуучунун колдонмосу (бул документ)
• 1 x Pump Holder
• 1 x Metal Faucet Pipe
• 1 x Filter Sponge
• 1 x Filter Case
• 1 х активдештирилген көмүр чыпкасы
• 1 x Суу насосу
• 1 х кубат адаптери

Орнотуу нускамалары

Follow these steps to assemble your Casfuy PWS-154 Pet Water Fountain:

1. Таза компоненттери: Before first use, thoroughly clean all parts of the fountain (stainless steel tank, top cover, pump, filter case, metal faucet pipe) with water and mild soap. Rinse thoroughly.
2. Чыпканы чогултуу: Place the filter sponge into the filter case. Insert the activated carbon filter into the filter case on top of the sponge.
3. Насосту орнотуу: Place the water pump into the pump holder at the bottom of the stainless steel water tank. Ensure the power cord is routed through the designated groove to prevent pinching.
4. Чыпканы жайгаштыруу: Position the assembled filter case onto the pump, ensuring it sits securely.
5. Суу кошуу: Fill the stainless steel tank with clean water. Ensure the water level is above the minimum mark (approximately 30% full) and below the maximum fill line. The pump must be fully submerged.
6. Attach Top Cover and Faucet: Place the stainless steel top cover onto the tank. Insert the metal faucet pipe into the opening on the top cover, ensuring it connects securely to the pump outlet.
7. Туташуу кубаты: Connect the power adapter to the fountain's USB interface and then plug the adapter into a standard wall outlet.

Image: The Casfuy PWS-154 water fountain connected to a power outlet via its USB interface and power adapter.

Иштөө нускамалары

Once assembled and powered, the fountain will begin to operate. The Casfuy PWS-154 offers dual water flow modes:

• Flowing Stream Mode: Water flows from the metal faucet pipe, mimicking a tap, which can attract pets to drink.
• Bubbler Mode: By removing the metal faucet pipe, water bubbles up from the center of the top cover, creating a gentle, interactive drinking experience.

Image: Illustration of the two distinct water flow modes: a flowing stream from the faucet and a bubbling surface flow.

Суунун деңгээлинин мониторинги: The fountain features an oversized circular window with a built-in LED light, allowing you to easily monitor the water level, even in low light conditions. Always ensure the water level is sufficient to keep the pump submerged.

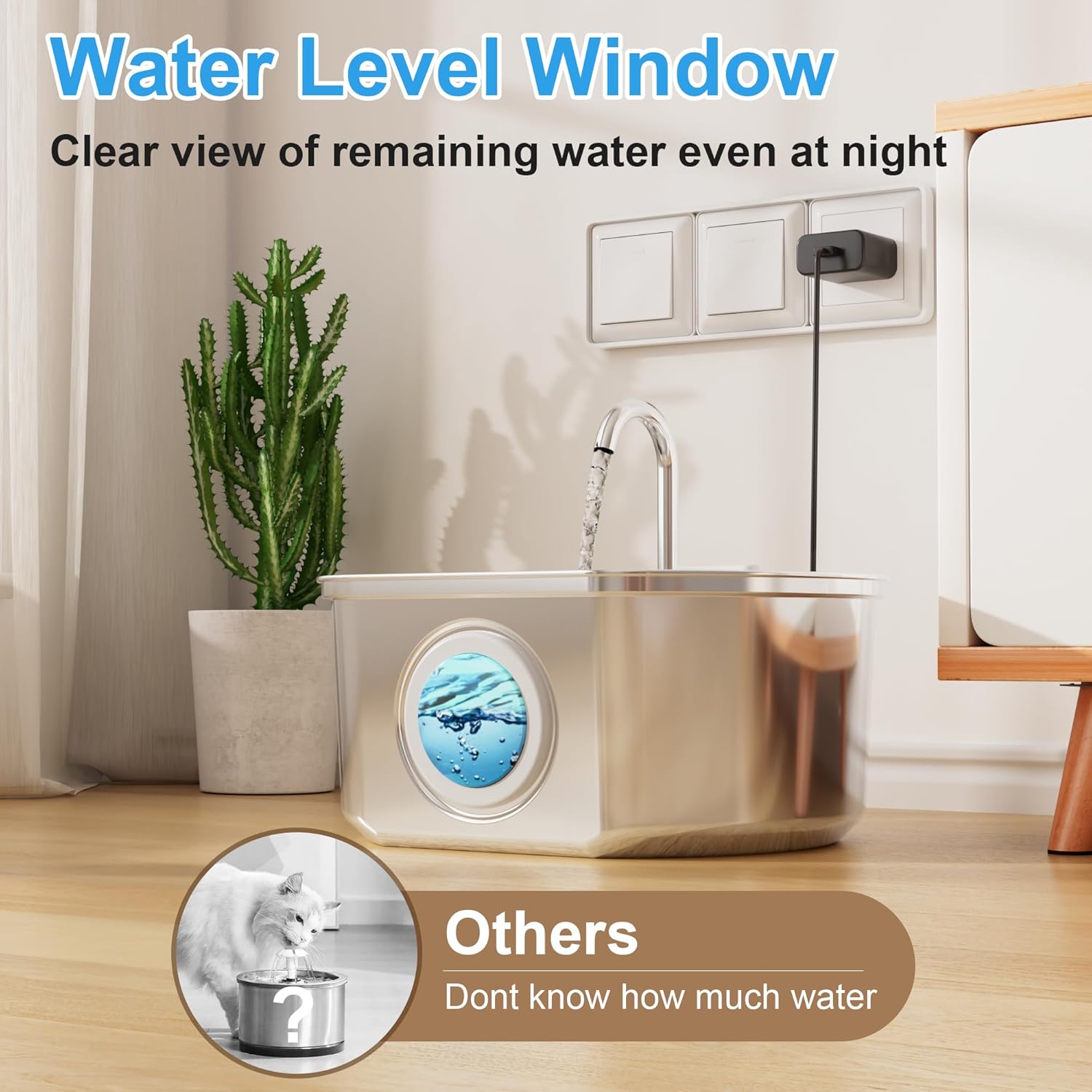

Image: The water level window on the Casfuy PWS-154, illuminated by an LED light for clear visibility.

The fountain has a 3.2L (108-oz) capacity, which can provide fresh water for 7-14 days, depending on your pet's consumption.

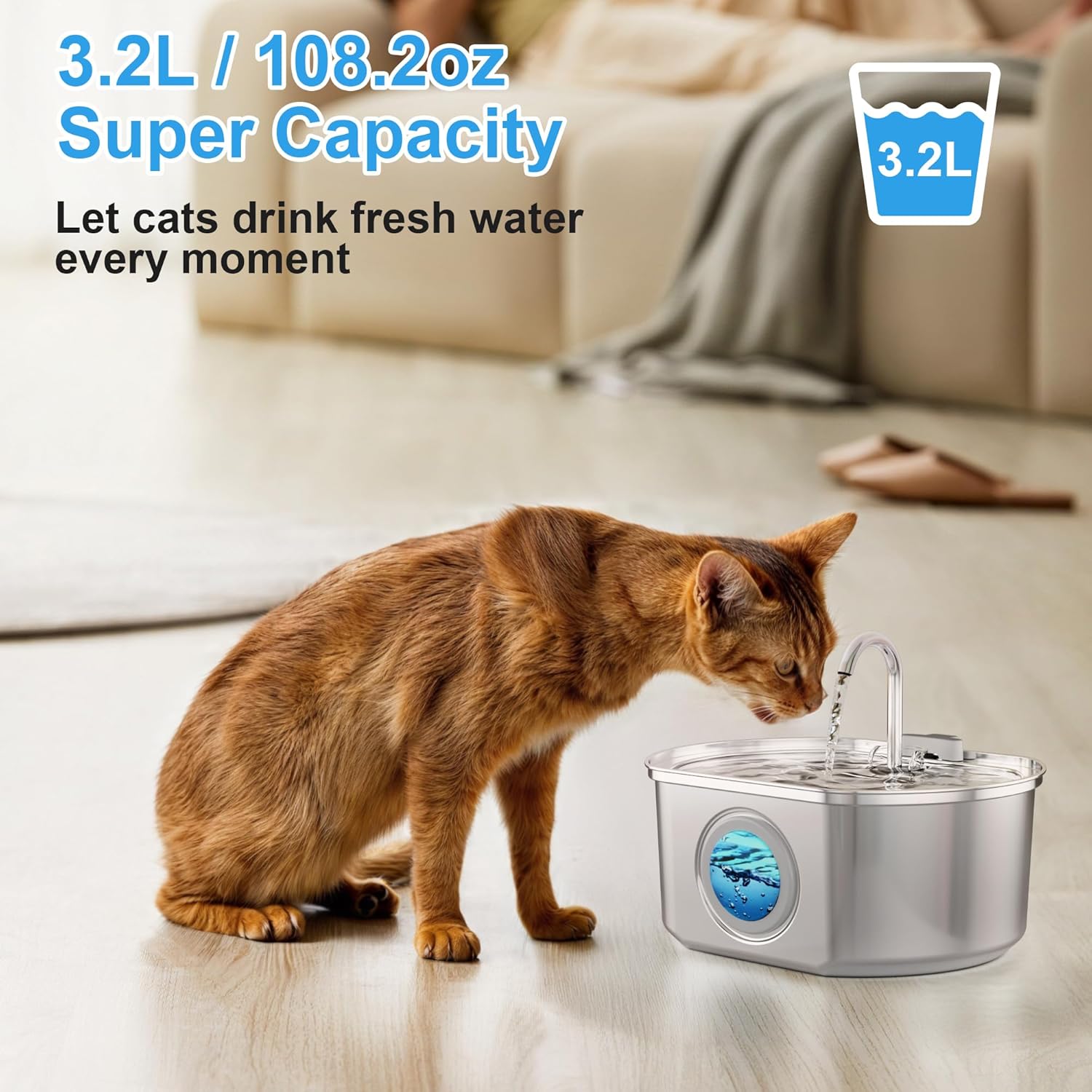

Image: A cat drinking from the Casfuy PWS-154 water fountain, demonstrating its use and capacity.

Техникалык тейлөө

Regular maintenance is crucial for the longevity of your fountain and the health of your pet.

Суу толтуруу

• Always keep the water level above 30% or full.
• The pump will fail if it runs dry.

Тазалоо

Clean the pump, water tank, drinking basin, and the filter case every 1-2 weeks.

• Тазалоодон мурун кубат адаптерин ажыратыңыз.
• Фонтанды демонтаждоо.
• Remove the filter and sponge from the filter case before cleaning the case.
• Clean all components with water and mild soap. Rinse thoroughly to remove any soap residue.
• The 304 stainless steel components are dishwasher safe for thorough cleaning.

Image: The stainless steel tank and top cover of the Casfuy PWS-154 placed in a dishwasher, illustrating their dishwasher-safe feature.

Filter and Sponge Replacement

The multi-layer filtration system uses carbon, cotton, and sponge to remove impurities and odors.

• Replace the activated carbon filter every 1-2 weeks when you clean your fountain.
• Replace the filter sponge every 3-4 weeks, depending on the frequency of use and water quality.

Image: Diagram showing the multiple layers of the filtration system, including carbon, cotton, and sponge filters.

Проблемаларды чечүү

If you encounter issues with your Casfuy PWS-154 fountain, please refer to the following common solutions:

Техникалык шарттар

• Модель номери: PWS-154
• Материал: 304 Дат баспас болот
• Сыйымдуулугу: 3.2 Liters (108 ounces)
• Элемент Салмагы: 1.76 фунт
• Өлчөмдөрү (LxWxH): 9.37 x 8.11 x 4.72 дюйм
• Кубат киргизүү: 5V USB (Power adapter included)
• Ызы-чуу деңгээли: 28дБ төмөн

Кепилдик жана колдоо

Кепилдик: The Casfuy PWS-154 Stainless Steel Pet Water Fountain comes with a 1-Year Warranty from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use. It does not cover damage caused by misuse, neglect, or unauthorized modifications.

Кардарларды колдоо: For any questions, concerns, or warranty claims, please contact Casfuy customer support. You can typically find contact information on the Casfuy official webсайт же сатып алуу платформасы аркылуу.

Сураныч, кепилдик максаттары үчүн сатып алганыңыздын далилин сактап коюңуз.
