Nolan N20-2 Classic Nobile Helmet User Manual

1. Киришүү

This manual provides essential information for the safe and proper use, maintenance, and care of your Nolan N20-2 Classic Nobile open-face helmet. Please read these instructions carefully before using your helmet for the first time and keep them for future reference.

The Nolan N20-2 is a jet helmet designed for urban and scenic road use, combining comfort, safety, and style. It features a high-strength Lexan polycarbonate shell, an open design for maximum field of vision, comfortable interiors, adjustable ventilation, a quick micrometric closure, and an integrated sun visor. This helmet is 100% Made in Italy and approved according to UN/ECE 22-06 standards.

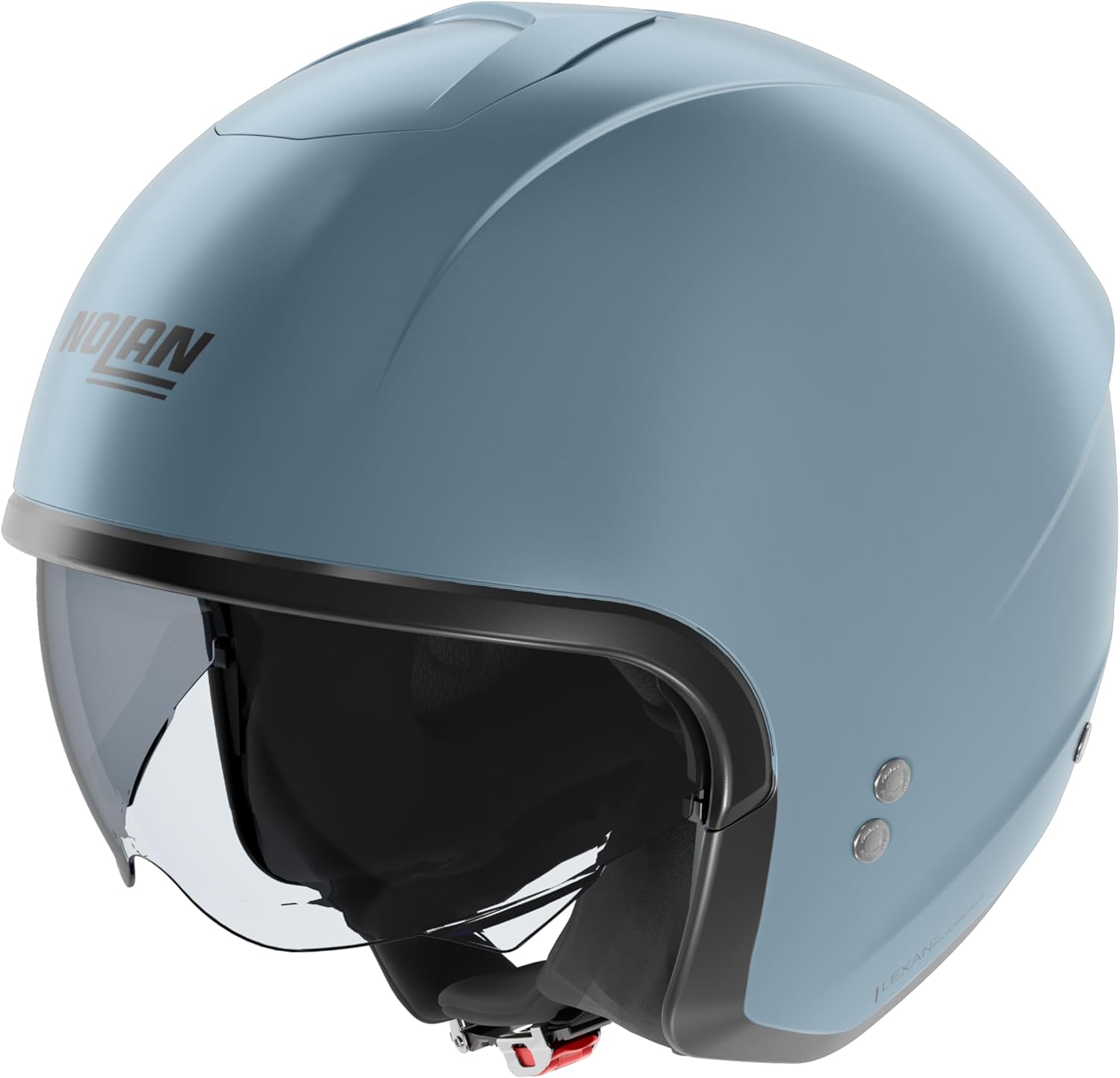

Сүрөт 1: Алдыңкы view of the Nolan N20-2 Classic Nobile helmet.

2. Орнотуу жана алгачкы колдонуу

2.1 Таңгактан чыгаруу жана текшерүү

Carefully remove the helmet from its packaging. Inspect the helmet for any signs of damage that may have occurred during shipping. Do not use the helmet if any damage is observed. Contact your retailer immediately.

2.2 Proper Fit and Adjustment

A helmet must fit snugly and comfortably to provide maximum protection. To ensure a proper fit:

1. Туулганы башыңызга кийиңиз, ал тегиз жайгашып, чекеңизди жаап турганын текшериңиз.
2. The helmet should feel snug around your cheeks and crown.
3. Fasten the Microlock retention system securely under your chin.
4. With the strap fastened, try to roll the helmet off your head from front to back. If it moves significantly, the helmet is too large.
5. Try to rotate the helmet from side to side. If it moves excessively, the helmet is too large.

2-сүрөт: Каптал view of the Nolan N20-2 Classic Nobile helmet, illustrating fit points.

2.3 Microlock Retention System

The Microlock retention system provides a quick, precise, and secure fastening mechanism. To fasten, insert the toothed tab into the buckle until a click is heard and the strap is snug. To release, lift the red lever and pull the toothed tab out of the buckle.

2.4 VPS Sun Visor Adjustment

The integrated light blue VPS sun visor is adjustable in 3 positions. Use the lever on the side of the helmet to raise or lower the sun visor to your desired position for optimal glare protection.

2.5 Eyewear Adaptive (EA)

The helmet features an Eyewear Adaptive system designed to facilitate the use of prescription glasses or sunglasses, ensuring comfort for riders who wear eyewear.

2.6 N-Com Communication System Preparation

The Nolan N20-2 helmet is prepared and certified for integration with N-Com Bluetooth+ and N-Com MeshTM communication systems. Refer to the N-Com system's specific manual for installation and operation instructions.

3. Иштөө нускамалары

3.1 Көз айнектин иштеши

The main clear visor can be easily raised and lowered manually. The integrated VPS sun visor is operated via a side lever, allowing for quick adjustment to varying light conditions.

3.2 AirBooster Technology Ventilation

The AirBooster Technology system ensures optimal ventilation. Air is drawn from the upper air intakes and channeled through internal ducts, exiting through the large rear extractor. This design provides maximum comfort by directing airflow where it is most needed around the rider's head.

3.3 ESS III Compatibility

The helmet is compatible with the ESS III (Emergency Stop Signal) system, a presence and braking signaling system that enhances the motorcyclist's visibility on the road, particularly during emergency braking.

4. Техникалык тейлөө жана кам көрүү

Proper maintenance extends the life of your helmet and ensures its protective capabilities.

4.1 Туулга кабыгын тазалоо

Clean the polycarbonate shell with a soft cloth, warm water, and mild soap. Avoid abrasive cleaners, solvents, or petroleum-based products, as these can damage the shell material and protective coatings.

4.2 Cleaning the Visors

Clean both the main clear visor and the VPS sun visor with warm water and a soft cloth. For stubborn dirt, use a helmet-specific visor cleaner. Do not use abrasive materials or harsh chemicals that can scratch or damage the visor's surface or anti-scratch/anti-fog coatings.

4.3 Inner Lining Care

The innovative inner lining features an open mesh structure for ventilation and is made from soft Italian recycled polyamide fabric. The cheek pads have removable and washable internal padding. Remove the cheek pads and inner lining according to the instructions (usually by unsnapping or unhooking them) and hand wash them with mild soap and water. Allow them to air dry completely before reinserting.

4.4 Сактоо

Store your helmet in a cool, dry place away from direct sunlight and extreme temperatures. Use a helmet bag to protect it from dust and scratches. Do not store the helmet near heat sources or chemicals.

3-сүрөт: Арткы view of the Nolan N20-2 Classic Nobile helmet, highlighting ventilation.

5. Кыйынчылыктарды

This section addresses common issues you might encounter with your Nolan N20-2 helmet. For problems not listed here, or if solutions do not resolve the issue, please contact Nolan customer support or an authorized dealer.

• Visor not moving smoothly: Check for dirt or debris in the visor mechanism. Clean the mechanism carefully. Ensure all screws (if applicable) are properly tightened.
• Retention system not locking securely: Inspect the Microlock mechanism for any obstructions or damage. Ensure the toothed tab is fully inserted. If damaged, do not use the helmet and seek professional inspection.
• Helmet feels loose after initial use: Re-check the fitment instructions in Section 2.2. The internal padding may compress slightly over time. If the helmet becomes too loose, it may no longer provide adequate protection and should be replaced.

6. Техникалык шарттар

7. Кепилдик жана колдоо

For information regarding warranty coverage, claims, or technical support for your Nolan N20-2 helmet, please refer to the warranty card included with your purchase or visit the official Nolan Helmets website. You may also contact your authorized Nolan dealer for assistance.

Always ensure to purchase from authorized retailers to guarantee product authenticity and valid warranty support.
