1. Киришүү
This manual provides comprehensive instructions for the VILTROX AF 20mm F2.8 E-Mount Lens. It covers setup, operation, maintenance, and technical specifications to ensure optimal performance and longevity of your lens. Please read this manual thoroughly before using the product.
2. Продукциянын өзгөчөлүктөрү
- Wide-Angle Prime Lens: 20mm focal length with a bright F2.8 aperture, ideal for landscapes, architecture, and astrophotography.
- Autofocus (AF) System: Equipped with a precise and quiet autofocus motor for quick and accurate focusing.
- E-Mount Compatibility: Designed specifically for Sony E-mount mirrorless cameras, including full-frame and APS-C models.
- Компакт жана жеңил дизайн: Facilitates portability and comfortable handling.
- Интеграцияланган USB-C порт: Allows for firmware updates.
- 52mm Filter Thread: Compatible with standard 52mm filters for creative control and lens protection.
- Туруктуу курулуш: Features a robust metal mount for secure attachment.
3. Пакеттин мазмуну
Төмөндө тизмеленген нерселердин баары пакетиңизге камтылганын текшериңиз:
- VILTROX AF 20mm F2.8 E-Mount Lens
- Алдыңкы линзанын капкагы
- Арткы линзанын капкагы
- Линза капкагы
- 52mm UV Filter
- Көрсөтмө (бул документ)

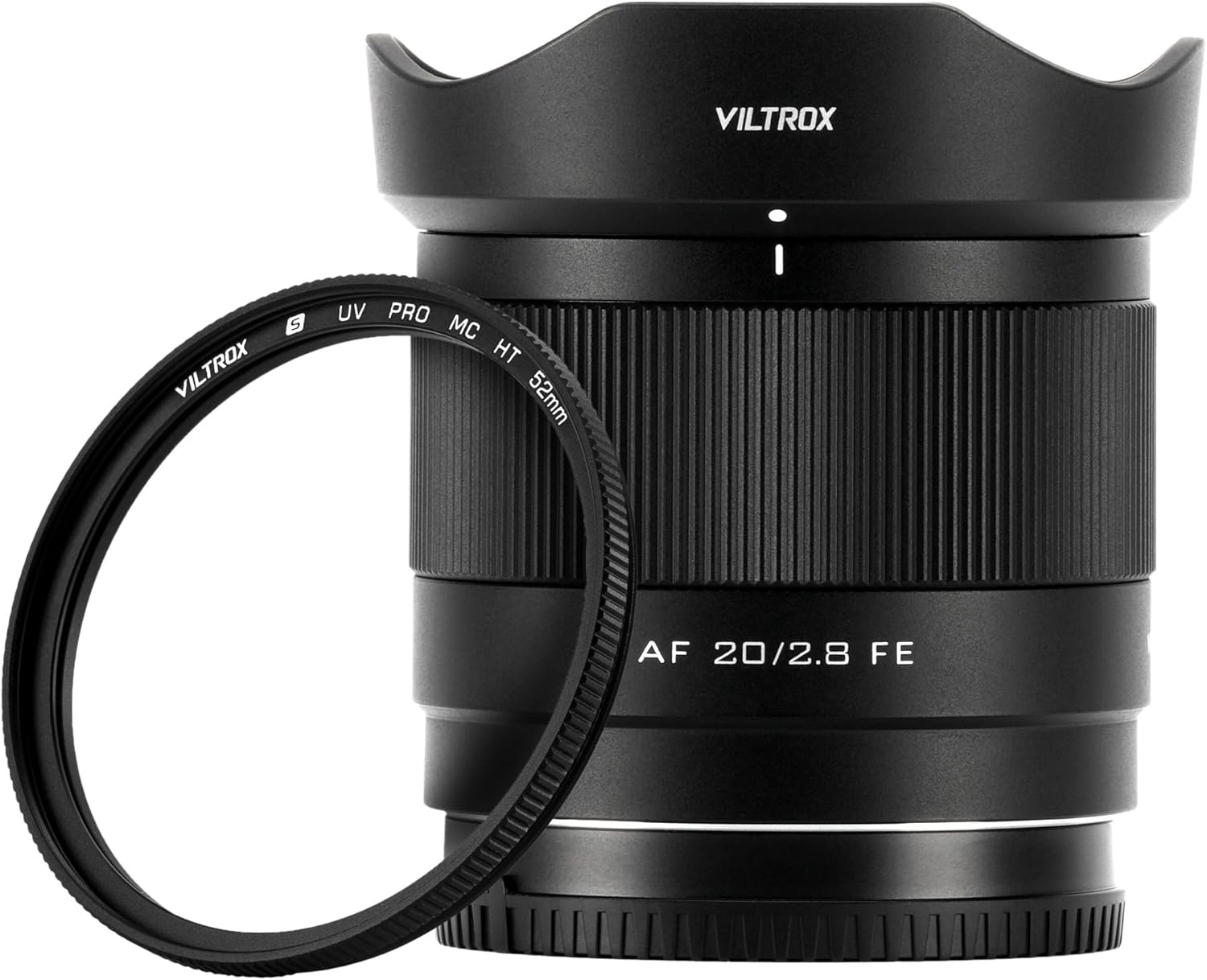

Image: The VILTROX AF 20mm F2.8 E-Mount lens shown with its included 52mm UV filter and lens hood.
4. Бөлүктөрдү идентификациялоо
Familiarize yourself with the various parts of your VILTROX AF 20mm F2.8 E-Mount Lens.
Фронт View
Сүрөт: алдыңкы view of the lens, highlighting the front optical element, 52mm filter thread, and the focus ring. Markings for focal length (AF 20mm 1:2.8) and minimum focusing distance (0.19m/0.62ft) are visible.
Арткы View (Mount Side)
Сүрөт: Арткы view of the lens, displaying the Sony E-mount, electrical contacts for communication with the camera body, and the rear optical element.
Close-up of Front Element
Сүрөт: деталдуу view of the lens's front element, showing the multi-coating and aperture blades within.
Close-up of Mount and USB Port
Image: A close-up of the lens mount, clearly showing the gold-plated electrical contacts for camera communication and the USB-C port for firmware updates.
5. Орнотуу
5.1 Линзаны камерага бекитүү
- Камера да, линза да өчүрүлгөнүн текшериңиз.
- Линзадан арткы линза капкагын жана камерадан корпус капкагын чыгарыңыз.
- Align the white index mark on the lens barrel with the corresponding index mark on the camera body.
- Insert the lens into the camera's mount and rotate it clockwise until it clicks into place. Do not force the lens.
- Камераңызды күйгүзүңүз.
5.2 Attaching the 52mm UV Filter
- Carefully remove the front lens cap from the lens.
- Align the threads of the 52mm UV filter with the filter thread on the front of the lens.
- Gently rotate the filter clockwise until it is securely attached. Avoid overtightening.
Image: A hand demonstrating the placement of the 52mm UV filter onto the front of the lens. The filter is designed to protect the lens and enhance light transmission.
5.3 Линза капкагын бекитүү
- Align the lens hood with the front of the lens, ensuring the alignment mark on the hood matches the mark on the lens.
- Капкактын капкагын ордуна бекитилгенче саат жебеси боюнча айландырыңыз.
- The lens hood helps to prevent flare and provides additional protection to the front element.
Image: The VILTROX AF 20mm F2.8 E-Mount lens with its petal-shaped lens hood securely attached, ready for use.
6. Объективди иштетүү
6.1 Автофокус операциясы
When attached to a compatible Sony E-mount camera, the lens will automatically engage the camera's autofocus system. Select your desired AF mode (e.g., AF-S, AF-C, DMF) on your camera body. The lens's internal focusing motor will provide fast and accurate focusing.
6.2 Manual Focus Operation
To use manual focus, set your camera to Manual Focus (MF) mode. Rotate the focus ring on the lens barrel to adjust focus. Your camera's focus peaking and magnification features can assist in achieving precise manual focus.
6.3 Диафрагманы башкаруу
The aperture of the lens is controlled electronically through the camera body. Adjust the aperture setting (f-stop) using your camera's controls in Aperture Priority (A), Manual (M), or Program (P) modes.
6.4 Микропрограмма жаңыртуулары
The integrated USB-C port allows for firmware updates to improve lens performance and compatibility. Visit the official VILTROX website for the latest firmware and instructions on how to update your lens.
7. Техникалык тейлөө жана кам көрүү
- Линза элементтерин тазалоо: Use a lens blower to remove dust, then a soft lens brush. For smudges, use a clean microfiber lens cloth with a small amount of lens cleaning solution. Apply solution to the cloth, not directly to the lens.
- Линза корпусун тазалоо: Wipe the lens body with a soft, dry cloth. Do not use organic solvents like paint thinner or benzene.
- Сактагыч: Store the lens in a cool, dry, and well-ventilated place away from direct sunlight. Avoid storing in areas with high humidity to prevent mold growth. Attach both front and rear lens caps when not in use.
- Коргоо: The included 52mm UV filter provides an additional layer of protection for the front lens element against dust, scratches, and impacts.
Image: The lens with a UV filter in a snowy mountain setting, demonstrating protection against environmental elements.
Сүрөт: Мисamples of the lens with a UV filter providing protection in challenging conditions such as snow and sand.
8. Кыйынчылыктарды
| Көйгөй | Мүмкүн болгон себеп / Чечим |
|---|---|
| Камера линзаны тааныган жок. |
|
| Автофокус жай же так эмес. |
|
| Сүрөттөр бүдөмүк. |
|
9. Техникалык шарттар
| Параметр | Нарк |
|---|---|
| Фокустун узундугу | 20мм |
| Максималдуу диафрагма | F2.8 |
| Минималдуу диафрагма | F16 |
| Линза орнотуу | Sony E-Mount |
| Формат шайкештиги | Толук кадр |
| Бурчу View | 94.7° |
| Минималдуу Фокустоо Дистанциясы | 0.19 м (0.62 фут) |
| Максималдуу чоңойтуу | 0.17x |
| Оптикалык дизайн | 10 топтогу 8 элемент |
| Диафрагма бычактары | 7 |
| Автофокус | Ооба |
| Чыпка өлчөмү | 52мм |
| Dimensions (ø x L) | Approx. 65mm x 59.5mm (2.56" x 2.34") |
| Салмагы | Болжол менен 157г (5.54 унция) |
| Микропрограмманы жаңыртуу порту | USB-C |
10. Кепилдик жана колдоо
VILTROX products are covered by a limited warranty against defects in materials and workmanship. The specific terms and duration of the warranty may vary by region and product. Please retain your proof of purchase for warranty claims.
For technical support, service, or warranty inquiries, please visit the official VILTROX website or contact your local authorized VILTROX dealer. You can find contact information and frequently asked questions on the VILTROX support page.
Расмий VILTROX Webсайт: www.viltrox.com
