Introduction
This manual provides detailed instructions for the setup, operation, and maintenance of your Zebronics Pixaplay 35 Android Smart LED Projector. Please read this manual thoroughly before using the product to ensure proper functionality and to prevent damage.
Маанилүү коопсуздук маалыматы
- Вентиляция тешиктерин жаап албаңыз. Проектордун айланасында адекваттуу аба агымын камсыз кылыңыз.
- l болгондо проектордун линзасына түздөн-түз көз тийбесинamp күйүк.
- Аппарат менен кошо берилген кубат адаптерин гана колдонуңуз.
- Проекторду суудан, нымдуулуктан жана өтө жогорку температурадан алыс кармаңыз.
- Проекторду өз алдынча бөлүүгө же оңдоого аракет кылбаңыз. Бардык тейлөөлөрдү квалификациялуу кызматкерлерге тапшырыңыз.
Продукт бүттүview
The Zebronics Pixaplay 35 is a compact Android Smart LED Projector designed for versatile home entertainment. It features 4K UHD support, 4000 lumens brightness, and a 240° tilt mechanism for flexible projection.
Пакеттин мазмуну
- Projector - 1 Unit
- Алыстан башкаруу
- Power Adapter - 1 Unit
- HDMI кабели
- QR коду боюнча колдонмо - 1 бирдик
- Cotton Swab Pack - 1 Unit
Проектор компоненттери
1-сүрөт: Алды-үстү view of the Zebronics Pixaplay 35 projector with its remote control.
The projector features a compact design with a lens at the front, ventilation grilles on the sides, and various ports at the rear for connectivity. The included remote control allows for easy navigation and settings adjustment.
2-сүрөт: Арткы view of the projector highlighting the connectivity ports (DC-IN, USB, HDMI) and the remote control.
The rear panel includes a DC-IN port for power, a USB port for media playback, and an HDMI port for connecting external devices. An IR receiver is also present for remote control operation.
Орнотуу нускамалары
1. Жайгаштыруу
Position the projector on a stable, flat surface. The 240° tilt mechanism allows you to adjust the projection angle for optimal viewing on a wall or screen. Ensure there are no obstructions in front of the lens or around the ventilation areas.
3-сүрөт: The projector's 240° tilt mechanism allows for flexible positioning and projection angles.
For best results, project onto a smooth, light-colored surface. The projector can create a screen size of up to 254cm (100 inches).
4-сүрөт: The projector can display images up to 254cm (100 inches) diagonally, creating a large viewтажрыйбасы.
2. Power Connection
Connect the provided power adapter to the DC-IN port on the projector and then plug it into a power outlet.
3. Баштапкы күйгүзүү
Press the power button on the projector or the remote control to turn on the device. The projector will boot up and display the Android smart interface.
Иштөө нускамалары
Алыстан башкаруу
Проектордун интерфейсинде навигациялоо, орнотууларды тууралоо жана медиа ойнотууну башкаруу үчүн камтылган алыстан башкарууну колдонуңуз. Батареялар туура салынганын текшериңиз.
Фокусту тууралоо
Rotate the focus wheel located near the lens to achieve a clear and sharp image on your projection surface.
Auto Keystone Adaptation
The projector features automatic vertical keystone correction. This function automatically adjusts the image to be rectangular even if the projector is placed at an angle. Manual adjustment may be available in settings for fine-tuning.

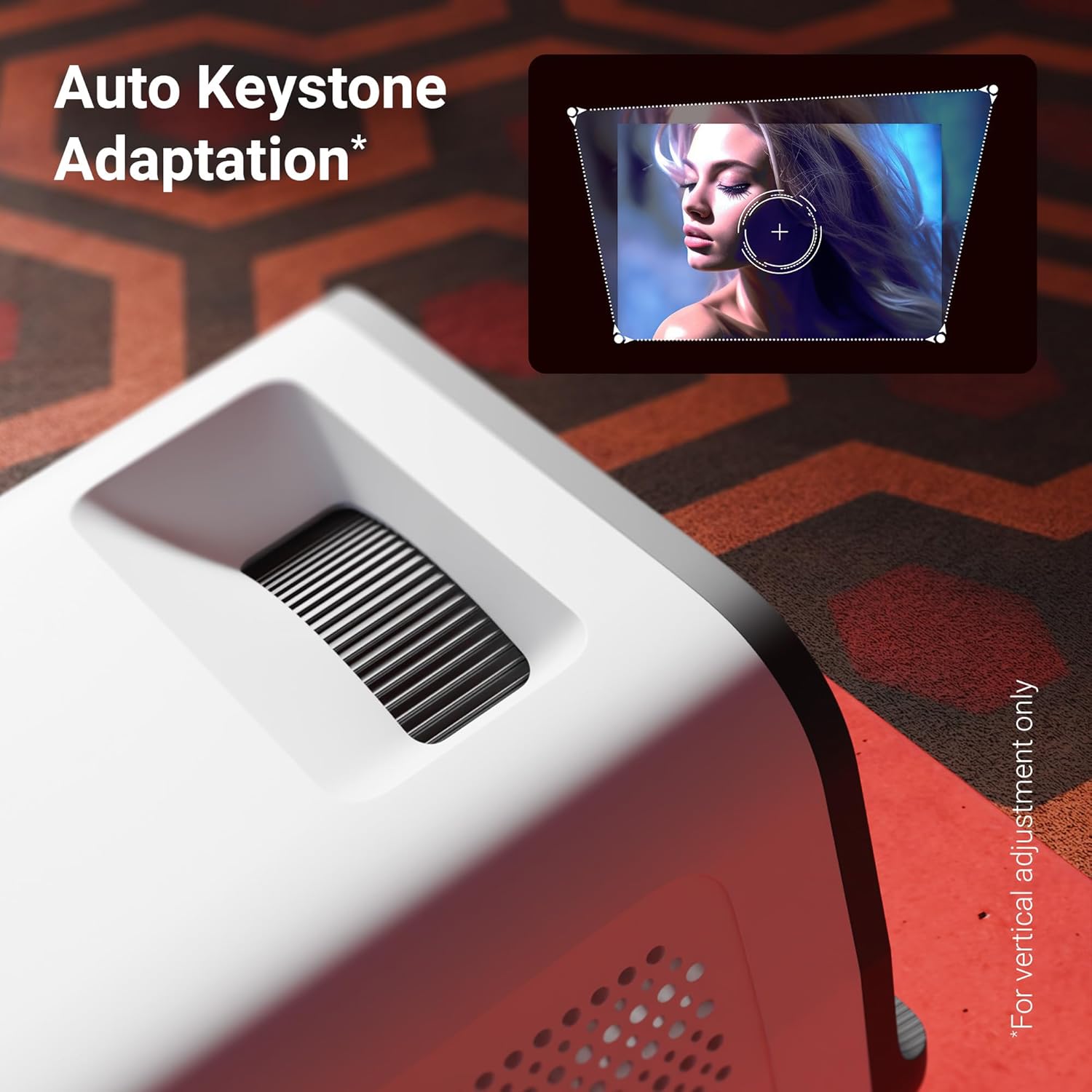

5-сүрөт: The auto keystone adaptation feature corrects vertical image distortion automatically.
Байланыш
- HDMI: Connect external devices such as laptops, gaming consoles, or Blu-ray players using an HDMI cable. Select the HDMI input source from the projector's menu.
- USB: Медиа файлдарды ойнотуу үчүн USB дискти USB портуна салыңыз files (photos, videos, music) directly from the drive.
- Bluetooth v5.4: Pair Bluetooth audio devices like speakers or headphones for enhanced sound. Access Bluetooth settings in the Android interface.
- Wi-Fi (2.4GHz & 5GHz): Connect the projector to your home Wi-Fi network to access online content, streaming apps, and firmware updates.
- Miracast & iOS Screen Mirroring: Wirelessly mirror the screen of your Android or iOS smartphone/tablet to the projector. Follow the on-screen instructions for pairing.
Smart Features (Android OS)
The projector runs on an Android operating system, allowing you to download and use various OTT (Over-The-Top) applications like Netflix and Prime Video directly on the device. Navigate the app store to install desired applications.
Негизги өзгөчөлүктөрү
- 4K UHD Support: Experience high-resolution content with support for 4K Ultra HD input, delivering sharp and detailed images.
- 4000 люмен жарыктыгы: LED lamp provides 4000 lumens, ensuring bright and clear visuals for an immersive viewтажрыйбасы.
- Up to 254cm (100") Screen Size: Project large images suitable for home theater setups.
- 240° Tilt Mechanism: Offers flexible projection angles, reducing glare and improving viewсооронуч.
- Auto Keystone Adaptation: Automatically corrects vertical image distortion for a perfectly rectangular picture.
- Камтылган динамик: Integrated speaker provides audio output for convenience. External audio can be connected via Bluetooth or other ports.
- 30,000-hour LED Lamp Жашоо: Узак мөөнөттүү LED лamp ensures extended usage without frequent replacement.
- Quad-Core Processor: Enhances performance and responsiveness for smooth operation of the Android OS and applications.
- Кош тилкелүү Wi-Fi: Supports both 2.4GHz and 5GHz Wi-Fi for stable and fast wireless connectivity.
- Miracast & iOS Screen Mirroring: Seamlessly cast content from Android and iOS devices.
6-сүрөт: Бүттүview of key features including brightness, connectivity, and processing power.
7-сүрөт: The projector includes a built-in speaker for integrated audio playback.
Техникалык тейлөө
- Линзаны тазалоо: Use a soft, lint-free cloth or the provided cotton swab to gently clean the projector lens. Do not use abrasive cleaners.
- Вентиляция: Regularly check and clean the ventilation grilles to prevent dust buildup, which can affect performance and lifespan.
- Сактагыч: Эгерде проектор көпкө колдонулбаса, аны салкын, кургак, чаңдан жана түз күн нурунан корголгон жерде сактаңыз.
Проблемаларды чечүү
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Сүрөт көрсөтүлгөн жок | Power not connected; Incorrect input source; Lens cap on. | Ensure power is connected and unit is on. Select correct HDMI/USB input. Remove lens cap. |
| Сүрөт бүдөмүк | Фокус туураланган эмес; Проектор экрандан өтө алыс/жакын. | Adjust the focus wheel. Reposition the projector for optimal distance. |
| Үн жок | Үнү өтө төмөн; Үнсүз; Тышкы аудио түзмөк туташкан/жупташтырылган эмес. | Increase volume. Unmute. Check Bluetooth connection or external audio cable. |
| Пульт иштебей жатат | Batteries low/incorrectly inserted; Obstruction between remote and projector. | Replace batteries. Ensure clear line of sight to IR receiver. |
| Wi-Fi туташуу маселелери | Туура эмес сырсөз; Роутер өтө алыс; Тармактык тоскоолдук. | Verify Wi-Fi password. Move projector closer to router. Try connecting to 2.4GHz or 5GHz band. |
Техникалык шарттар
| Бренд | ЗЕБРОНИКА |
| Модел | Zeb-Pixa Play 35 |
| Дисплей технологиясы | LED |
| Дисплей түрү | 4K UHD Support |
| Native Resolution | 1280 x 720 пиксел |
| Сүрөттүн жарыктыгы | 4000 Lumens |
| Сүрөттүн карама-катышы | 1000:1 |
| Аспект катышы | 16:10 |
| Байланыш технологиясы | Bluetooth v5.4, HDMI, USB, Dual-band Wi-Fi (2.4GHz & 5GHz) |
| Шайкеш түзмөктөр | Laptops, Smartphones, Tablets, Gaming Consoles, Blu-ray Players, Media Streaming Devices |
| Продукциянын өлчөмдөрү | 10.5 x 8.8 x 16.5 см |
| Элемент Салмагы | 355 г |
| Монтаж түрү | Столдун үстү |
Кепилдик жана колдоо
The Zebronics Pixaplay 35 Projector comes with a 1 жылдык кепилдик from the date of purchase. For warranty claims, technical support, or service inquiries, please contact Zebronics customer service. Refer to the QR Code Guide included in your package for contact details or visit the official Zebronics webсайт.
Өндүрүүчү: Zebronics India Private Limited компаниясы
