PowerSmart 3800 ватттык кош отун менен иштеген көчмө инвертордук генератордун колдонуу боюнча колдонмосу

1. Киришүү

This manual provides essential information for the safe and efficient operation of your PowerSmart 3800-Watt Dual Fuel Portable Inverter Generator. This generator is designed to provide reliable power for various applications, including RV use, home backup, and outdoor activities. It features dual fuel capability, allowing operation on both gasoline and propane, and incorporates advanced safety features like CO Protect. Please read this manual thoroughly before operating the generator to ensure proper usage and to prevent injury or damage.

Figure 1: PowerSmart 3800-Watt Dual Fuel Portable Inverter Generator. This image displays the generator from a front-side angle, highlighting its red and black casing, control panel, and integrated handle.

2. Коопсуздук маалыматы

Operating a generator safely is paramount. Always follow these guidelines:

• Көмүртек кычкылы (CO) коркунучу: Generator exhaust contains carbon monoxide, a colorless, odorless, poisonous gas that can kill in minutes. Never operate the generator indoors or in partially enclosed areas. Always operate outdoors in a well-ventilated area, away from windows, doors, and vents.
• CO Protect Feature: This generator is equipped with a Carbon Monoxide Auto-Shutdown system. If unsafe levels of CO gas are detected, the unit will automatically shut off. Do not bypass or disable this safety feature.
• Өрт коркунучу: Fuel is highly flammable. Store fuel in approved containers in a well-ventilated area. Do not refuel a hot or running engine.
• Электр коопсуздугу: Генераторду нымдуу шарттарда иштетпеңиз. Бардык туташуулардын бекем жана жерге туташтырылганын текшериңиз.
• Ысык беттер: The generator's engine and muffler become extremely hot during operation. Avoid contact with hot surfaces to prevent burns.

Figure 2: CO Protect Logo. This image shows the CO Protect logo, indicating the generator's carbon monoxide safety feature.

3. Продукт бүтүп калдыview

The PowerSmart 3800-Watt Dual Fuel Portable Inverter Generator is designed for versatility and ease of use. Its compact and lightweight design makes it ideal for various power needs.

Негизги өзгөчөлүктөрү:

• Эки күйүүчү май менен иштөө мүмкүнчүлүгү: Operates on gasoline (3800 starting watts, 3300 running watts) or propane (3500 starting watts, 3100 running watts).
• Узартылган иштөө убактысы: Up to 4.5 hours run time at 50% load on gasoline. Propane run time depends on tank size.
• Тынч иштөө: Operates at 59 dBA from 23 feet at 25% load, and 70 dBA from 23 feet at full load, ensuring minimal noise disruption.
• Көп функциялуу панель: Эки 120V 20 камтыйт Amp NEMA 5-20R розеткалары, бир 120V 30 Amp RV розетка, бир 12V туруктуу ток розеткасы жана эки 5V USB порту.
• Эко режими: Optimizes fuel consumption and reduces noise levels during lighter loads.
• Коопсуздук өзгөчөлүктөрү: Low Oil Shutdown, Overload Reset, and Carbon Monoxide Auto Shutdown.
• Параллелдүү жөндөм: Connect two inverter generators for increased power output.

Figure 3: Key Features. This image highlights the generator's power output (3800W surge, 3300W running on gasoline; 3500W surge, 3100W running on propane), 4.5-hour runtime at 50% load, and CO Protect feature.

Башкаруу панелинин макети:

The control panel provides access to all operational switches, outlets, and indicators.

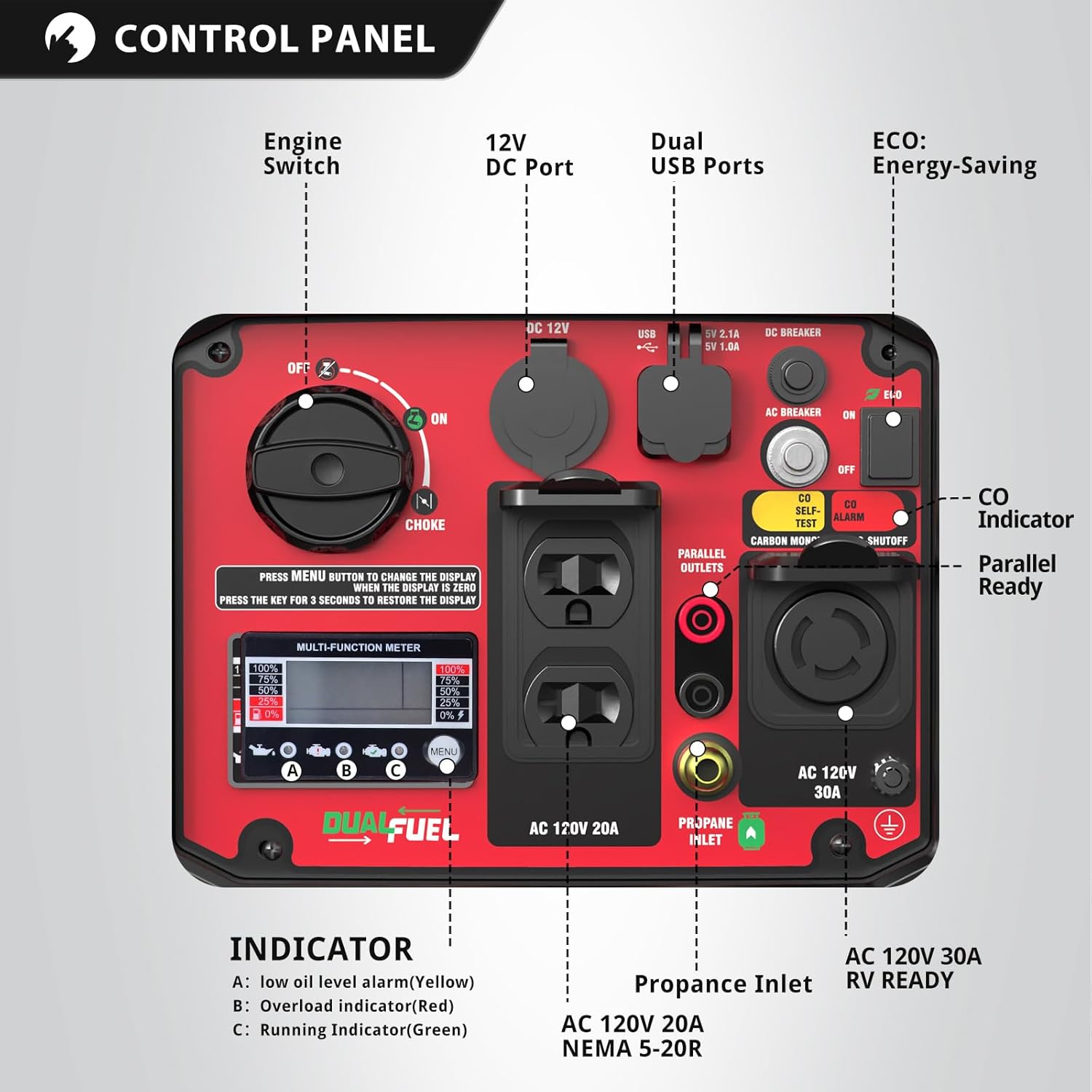

Figure 4: Control Panel. This image provides a detailed view of the generator's control panel, labeling the engine switch, DC ports, USB ports, Eco mode switch, CO indicator, parallel outlets, AC outlets (120V 20A and 120V 30A RV Ready), propane inlet, and multi-function meter.

4. Орнотуу

Before first use, proper setup is crucial for safe and effective operation.

Кутудан чыгаруу жана алгачкы текшерүү:

• Генераторду жана бардык кошумча жабдууларды таңгактан этияттык менен алып чыгыңыз.
• Inspect the unit for any signs of damage during shipping. Contact customer support if any damage is found.
• Ensure all included accessories (instruction manual, propane hose connector, oil funnel, spark plug tool) are present.

Мотор майын кошуу:

The generator is shipped without engine oil. You MUST add oil before the first start. Failure to do so will cause severe engine damage and void the warranty. This model requires approximately 16.2 fluid ounces of 4-cycle SAE 10W-30 oil.

1. Генераторду тегиз жерге коюңуз.
2. Locate the oil fill port on the side of the generator (refer to Figure 4 for location).
3. Май толтуруучу капкакты/ченегичти алып салыңыз.
4. Use the provided funnel to slowly add the recommended oil until the level reaches the edge of the fill opening. Use the dipstick to verify the oil level is within the safe range.
5. Май толтуруучу капкакты коопсуз алмаштырыңыз.

Figure 5: Oil Icon. This image shows an oil can icon, reminding users about the importance of engine oil.

Adding Fuel (Gasoline or Propane):

This generator operates on either gasoline or propane. Ensure the generator is off and cool before adding fuel.

Бензин үчүн:

• Октан саны 87 же андан жогору болгон жаңы, коргошунсуз бензинди колдонуңуз.
• Open the fuel cap and carefully pour gasoline into the fuel tank (capacity: 1.3 gallons). Do not overfill.
• Күйүүчү майдын капкагын бекем жабыңыз.

For Propane:

• Connect one end of the provided propane hose connector to the propane inlet on the control panel.
• Connect the other end of the hose to a standard 20 lb (or larger) propane tank.
• Пропан баллонундагы клапанды акырындык менен ачыңыз.
• Perform a leak check using a leak detector or soapy water solution on all connections. Do not operate if a leak is detected.

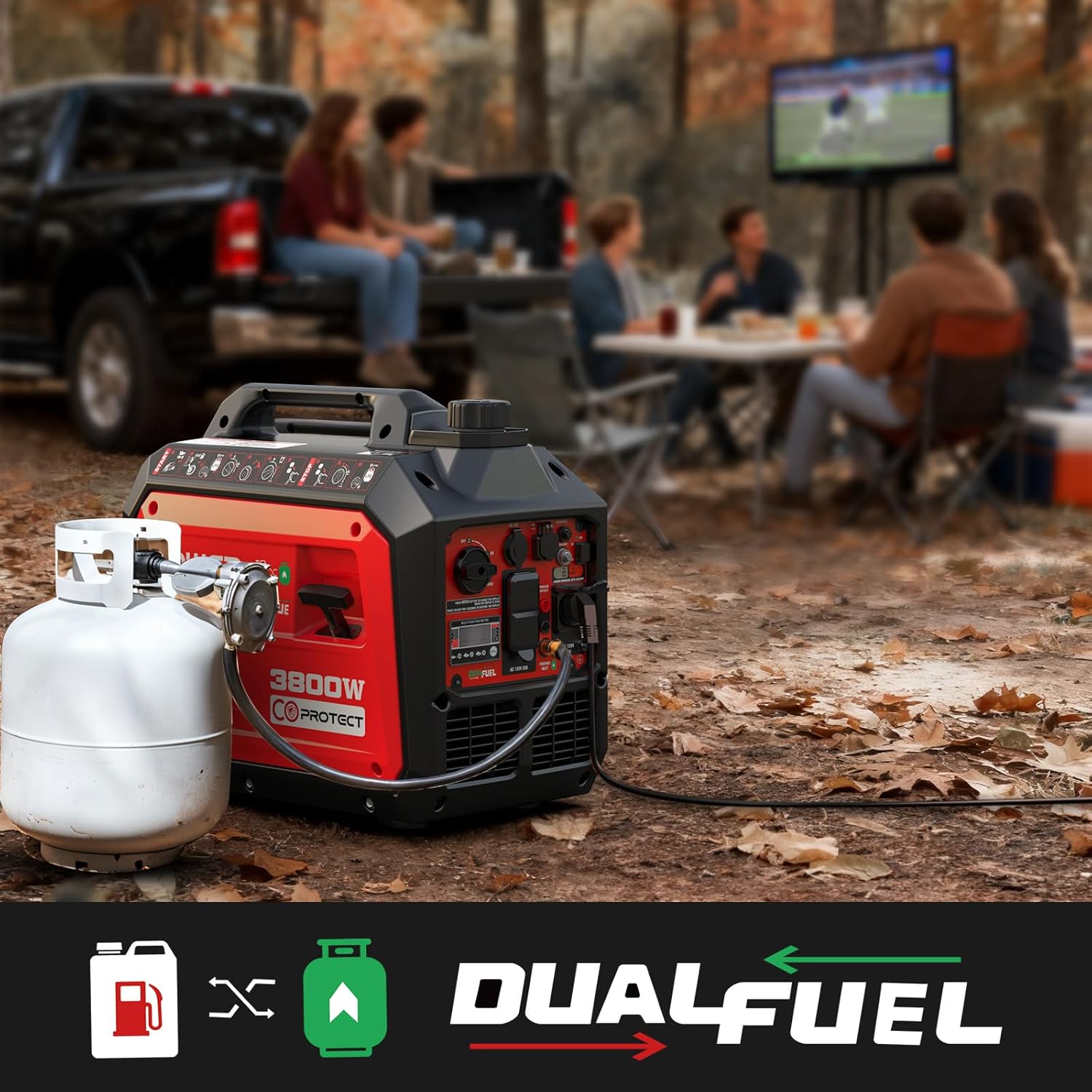

Figure 6: Dual Fuel Capability. This image illustrates the generator connected to a propane tank, emphasizing its dual fuel functionality.

5. Операция

Follow these steps to start and operate your generator.

Генераторду ишке киргизүү:

1. Ensure the generator is on a level, outdoor surface, away from any enclosures.
2. Кыймылдаткычты 'ON' абалына буруңуз.
3. If starting from cold (engine not recently run), turn the switch to 'CHOKE'. If warm, you can go directly to 'ON'.
4. Кыймылдаткыч иштегенге чейин артка кайтуу стартердин туткасын бекем тартыңыз.
5. Once the engine starts, if you used 'CHOKE', slowly move the switch back to 'ON' after a few seconds.

Switching Fuel Types:

The generator automatically prioritizes propane if a propane tank is connected and its valve is open. If both gasoline is in the tank and propane is connected, it will run on propane first. If propane runs out or is disconnected, it will automatically switch to gasoline (if present).

Эко режими:

Flip the 'ECO' switch to 'ON' to activate Eco Mode. This feature adjusts the engine speed based on the load, reducing fuel consumption and noise levels when less power is required. The engine will rev up automatically when more power is drawn.

Туташтыруучу приборлор:

Once the generator is running stably, you can connect your appliances to the appropriate outlets on the control panel. Ensure the total wattage of connected devices does not exceed the running wattagгенератордун э.

• AC 120V 20A розеткалары: Стандарттык тиричилик техникасы үчүн.
• AC 120V 30A RV Receptacle: For RV hookups or larger appliances.
• 12V туруктуу токтун розеткасы: For charging 12V batteries or powering small DC accessories.
• USB Ports (5V): Мобилдик түзмөктөрдү кубаттоо үчүн.

Figure 7: RV Icon. This image shows an RV icon, indicating the generator's suitability for recreational vehicle use.

Параллель операция:

This generator is parallel capable. If you need more power, you can connect two PowerSmart inverter generators using a parallel kit (sold separately) to double your available wattage.

Figure 8: Parallel Capable. This image shows two PowerSmart generators connected in parallel, demonstrating the ability to combine their power output.

Расмий продукт Video:

Video 1: PowerSmart 3800W Dual Fuel Inverter Generator Full Review. This video provides a comprehensive review of the generator, including unboxing, setup, fueling with gasoline and propane, starting procedures, control panel features, Eco Mode, and a demonstration of powering a portable air conditioner.

6. Техникалык тейлөө

Үзгүлтүксүз техникалык тейлөө генераторуңуздун узак иштөөсүн жана оптималдуу иштешин камсыз кылат.

Күнүмдүк текшерүүлөр:

• Ар бир колдонуудан мурун: Check engine oil level. Ensure air filter is clean. Inspect fuel lines for leaks or damage.
• Every 25 Hours of Operation: Check and clean the spark plug. Inspect and clean the air filter.
• Every 50 Hours of Operation: Мотордун майын алмаштырыңыз.

Spark Plug Access:

The spark plug is located under an access panel on the top side of the generator. Use the provided spark plug tool for removal and installation during maintenance.

Сактагыч:

For long-term storage (over 30 days), prepare the generator to prevent fuel degradation and engine issues:

• Add a fuel stabilizer to the gasoline tank and run the engine for a few minutes to circulate it.
• Drain all gasoline from the fuel tank and carburetor.
• Эгерде пропан колдонулса, пропан баллонун сууруп алыңыз.
• Генераторду таза, кургак жана жакшы желдетилген жерде сактаңыз.

7. Кыйынчылыктарды

If you encounter issues with your generator, refer to this section for common solutions. For more complex problems, consult the full instruction manual or contact customer support.

Жалпы маселелер:

• Кыймылдаткыч иштебей жатат: Check fuel level (gasoline or propane connection), oil level, spark plug condition, and ensure the choke is set correctly for a cold start.
• Эч кандай кубаттуулугу жок: Check AC/DC breakers on the control panel. Ensure no overload condition is present (reset if necessary).
• Engine Runs Rough: Check fuel quality, air filter cleanliness, and spark plug condition.

Индикатор жарыктары:

The multi-function meter on the control panel provides visual indicators for various conditions:

• Low Oil Level (Yellow): Indicates the engine oil is low. The generator will shut down to prevent damage.
• Overload Indicator (Red): Illuminates when the generator is overloaded. The unit may shut down. Reduce the load and press the overload reset button.
• Running Indicator (Green): Confirms the generator is operating normally.
• CO сигнализациясы: Activates if carbon monoxide levels are unsafe, triggering an automatic shutdown.

8. Техникалык шарттар

Figure 9: Dimensions. This image provides a visual representation of the generator's dimensions and weight (52 lbs).

Figure 10: Quiet Operation. This image highlights the generator's quiet operation at 59dB from 23 feet, ensuring minimal interference.

9. Кепилдик жана колдоо

PowerSmart stands behind its products with comprehensive warranty and support services.

Кепилдик маалыматы:

Бул PowerSmart генератору төмөнкүлөр менен келет 2 жылдык кепилдик. Кепилдик дооматтары үчүн сатып алганыңыздын далилин сактап коюңуз.

Figure 11: 2 Years Warranty Icon. This image displays an icon indicating a 2-year warranty for PowerSmart products.

Кардарларды колдоо:

For any questions, troubleshooting assistance, or warranty claims, please contact PowerSmart customer support. PowerSmart has over 500 certified repair centers in the U.S. and provides full replacement parts through its Illinois headquarters.

• Телефон: 1-877-888-3180
• Электрондук почта: support@powersmartusa.com
• Webсайт: www.powersmartusa.com
