Patiowell 10 x 14 фут сырткы сактоочу сарайдын колдонуу боюнча колдонмосу

1. Киришүү

This manual provides detailed instructions for the assembly, operation, and maintenance of your Patiowell 10 x 14 FT Outdoor Storage Shed. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

The Patiowell storage shed is designed to provide a durable and secure space for organizing gardening tools, equipment, and other outdoor items, helping to reduce clutter and protect belongings from environmental elements.

Сүрөт 1.1: Сырткы көрүнүш view of the Patiowell 10x14 FT Outdoor Storage Shed.

2. Коопсуздук маалыматы

ЭСКЕРТҮҮ:

• For safety reasons, children are not permitted to climb on or play with this product.
• Do not use the shed as a living space or for activities that could pose safety risks, especially during adverse weather conditions.
• Ensure the shed is assembled on a completely flat and level foundation to maintain structural integrity and prevent instability.
• Always wear appropriate personal protective equipment (PPE) during assembly, such as gloves and eye protection.
• Exercise caution when handling tools and components to avoid injury.

3. Пакеттин мазмуну

Your Patiowell 10 x 14 FT Outdoor Storage Shed is delivered in multiple packages. For the 10x14 FT model, you will receive a total of 12 packages. These packages may arrive in batches. Please verify all contents against the inventory sheets provided in each box before beginning assembly.

Камтылган заттар:

• 1 x Storage shed (components)
• 2 x Tool Gloves
• 1 x Аппараттык комплект
• 1 x Product manual (this document)

Image 3.1: Illustration of package distribution for various shed sizes. The 10x14 FT model typically arrives in 12 boxes, with the manual in box #14 (as per diagram, note the diagram has a slight discrepancy in numbering for 10x14, showing 13 boxes and manual in #14, but product description says 12 packages).

Эскертүү: The numerical labels on the boxes may not be continuous. Refer to the inventory sheets within each box to identify parts. If you receive multiple instruction manuals, use the one corresponding to your purchased size.

4. Сайтты даярдоо

Proper site preparation is crucial for the stability and longevity of your storage shed. Failure to prepare an adequate foundation can lead to structural issues and void warranty claims.

Негизги талаптар:

• Деңгээл беттик: The shed must be installed on a completely flat and level foundation. The plastic flooring is not designed to compensate for uneven ground.
• Foundation Type: Consider a concrete slab, a gravel base with a treated wood frame, or a pressure-treated wood 2x4 grid with plywood on top for optimal support.
• Тазалоо: Ensure adequate clearance around the shed for assembly, maintenance, and door operation.
• Жергиликтүү эрежелер: Check your community's homeowners association (HOA) policies and local building codes to ensure compliance before installation.

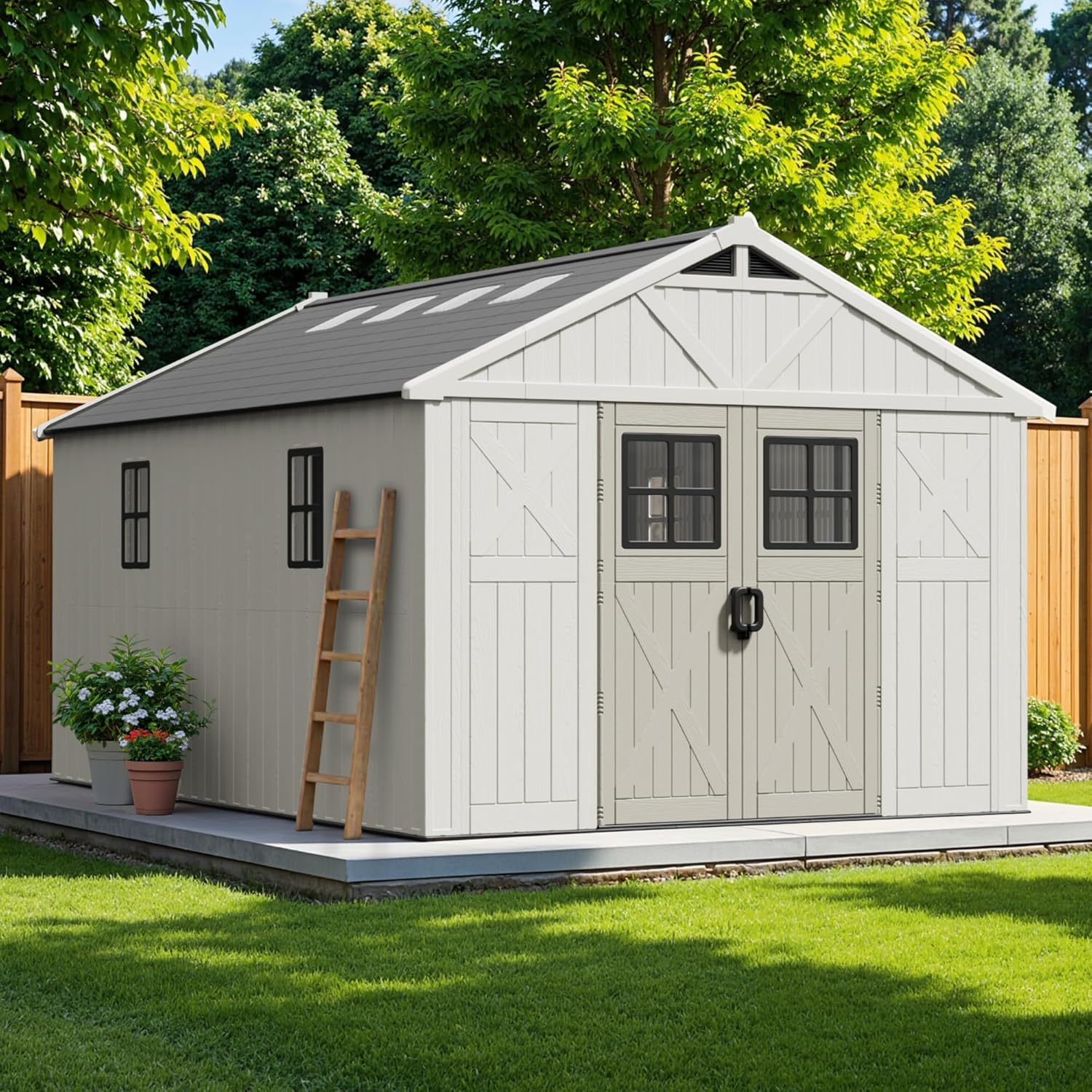

Сүрөт 4.1: Мисample of a Patiowell shed installed on a prepared, level foundation.

5. Монтаждоо боюнча нускамалар

Assembly of the Patiowell storage shed requires careful attention to detail. While designed for streamlined installation, having assistance is recommended. The estimated assembly time is longer than a few hours; plan for a full day or more depending on experience and assistance.

Керектүү куралдар (камтылган эмес):

• Cordless screwdriver with adjustable clutch (essential to prevent stripping plastic components)
• Өлчөө лентасы
• Деңгээл
• Кадам тепкич
• Utility knife or scissors (for opening packages)

Жалпы Ассамблеянын кадамдары:

1. Unpack and Inventory: Open all boxes and lay out components according to their part numbers. Use the inventory sheets in each box to confirm all parts are present. This step is critical and can take 1-2 hours.
2. Негизги Ассамблея: Assemble the floor panels on your prepared, level foundation. Ensure they interlock correctly and form a stable base.
3. Дубал панелин орнотуу: Attach the wall panels to the base, following the numerical sequence in the detailed instruction booklet. The shed's unique mounting design minimizes screw usage for easier setup.
4. Roof Truss Installation: Install the metal roof trusses. These provide significant structural rigidity. Assistance is highly recommended for this step.
5. Чатыр панелин орнотуу: Secure the roof panels, including the skylight sections.
6. Эшик жана терезе орнотуу: Install the double doors and any additional window components. Ensure doors operate smoothly and the locking mechanism functions correctly.
7. Акыркы текшерүүлөр: Review all connections, ensuring screws are tightened appropriately (without overtightening plastic components).

Сүрөт 5.1: Интерьер view of a Patiowell shed, demonstrating potential for organized storage after assembly.

Маанилүү: Refer to the detailed, step-by-step instruction booklet included in your package for specific diagrams and part identification. If any hardware is missing, contact customer support immediately.

6. Операция

Your Patiowell storage shed is designed for convenient and secure storage.

Негизги өзгөчөлүктөрү:

• Lockable Double Doors: The shed features double doors with a lockable handle for enhanced security. Use a padlock (not included) to secure your belongings and deter unauthorized access.
• Multi-Window and Skylight Design: Integrated windows and skylights provide natural light, reducing the need for artificial lighting during the day.
• Circulation Vents: Vents are incorporated to prevent humidity buildup, especially during rainy seasons, and to enhance heat dissipation in summer, keeping stored items fresh.

Image 6.1: Details of the shed's features including UV protection, waterproof roof, ventilation, and the secure locking system.

7. Техникалык тейлөө

Үзгүлтүксүз техникалык тейлөө сиздин Patiowell кампаңыздын узак мөөнөттүү иштешин жана оптималдуу иштешин камсыз кылат.

Тейлөө көрсөтмөлөрү:

• Тазалоо: Сарайдын сыртын мезгил-мезгили менен жумшак самын жана суу менен тазалаңыз. Чайыр материалга зыян келтире турган абразивдүү тазалагычтардан же катуу химиялык заттардан алыс болуңуз.
• UV коргоо: The shed is crafted from thickened double-layer resin with double UV protection to prevent sun fading. No additional UV treatment is typically required.
• Door and Hinge Check: Periodically check door hinges and the locking mechanism for smooth operation. Lubricate if necessary.
• Вентиляция: Ensure the circulation vents remain clear of obstructions to maintain proper airflow and prevent moisture buildup.
• Foundation Inspection: Annually inspect the shed's foundation to ensure it remains level and stable. Address any settling or shifting promptly.

8. Кыйынчылыктарды

Бул бөлүмдө сактагычыңызда кездешүүчү жалпы көйгөйлөр каралат.

Жалпы маселелер жана чечимдер:

• Маселе: Shed appears unstable or doors do not align properly.
  Чечим: This is often caused by an uneven foundation. Re-check the levelness of your base and make adjustments as needed. Ensure all base and wall panels are securely fastened.
• Маселе: Missing parts or hardware during assembly.
  Чечим: Кылдаттык менен review the inventory sheets for each box. If parts are genuinely missing, contact Patiowell customer support with the specific part numbers.
• Маселе: Сарайдын ичинде суу агып жатат.
  Чечим: Ensure all roof panels are correctly installed and sealed. Check for any gaps or unsealed areas, especially around skylights and window frames. Verify that the shed is on a level surface to prevent water pooling against the base.
• Маселе: Difficulty tightening screws into plastic components.
  Чечим: Use a cordless screwdriver with a sensitive clutch setting to avoid overtightening and stripping the plastic. Hand-tighten for final adjustments if necessary.

9. Техникалык шарттар

Image 9.1: Detailed dimensions of the Patiowell 10x14 FT Outdoor Storage Shed.

10. Кепилдик жана колдоо

For specific warranty information, please refer to the documentation included with your product or contact Patiowell customer service directly. Patiowell is committed to providing quality products and support.

Кардарларды колдоо:

If you have any questions regarding assembly, missing parts, or product functionality, please contact Patiowell customer support. You can often find contact information on the product packaging, the official Patiowell webсайты же сатуучу аркылуу.

When contacting support, please have your model number (0781-1014-BG) and purchase details readily available.
