1. Киришүү
Thank you for choosing the Karinear 24 Inch Electric Cooktop. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new appliance. Please read all instructions carefully before use and retain this manual for future reference.
Маанилүү коопсуздук маалыматы
- This cooktop is designed to meet safety specifications and emits no electromagnetic radiation, making it harmless to users.
- For added safety, the Karinear 220V electric cooktop is equipped with over-temperature protection, automatic shutoff, and residual heat warnings.
- Always ensure proper ventilation during use.
- ысык беттерге тийбеңиз. Туткаларды же туткаларды колдонуңуз.
- Шайман колдонулуп жатканда балдарды кылдаттык менен көзөмөлдөңүз.
2. Продукт бүтүп калдыview
The Karinear 24 Inch Electric Cooktop features a sleek black glass surface with four radiant burners and intuitive knob controls. Designed for ease of use and efficient cooking, it offers multiple power levels to suit various culinary needs.

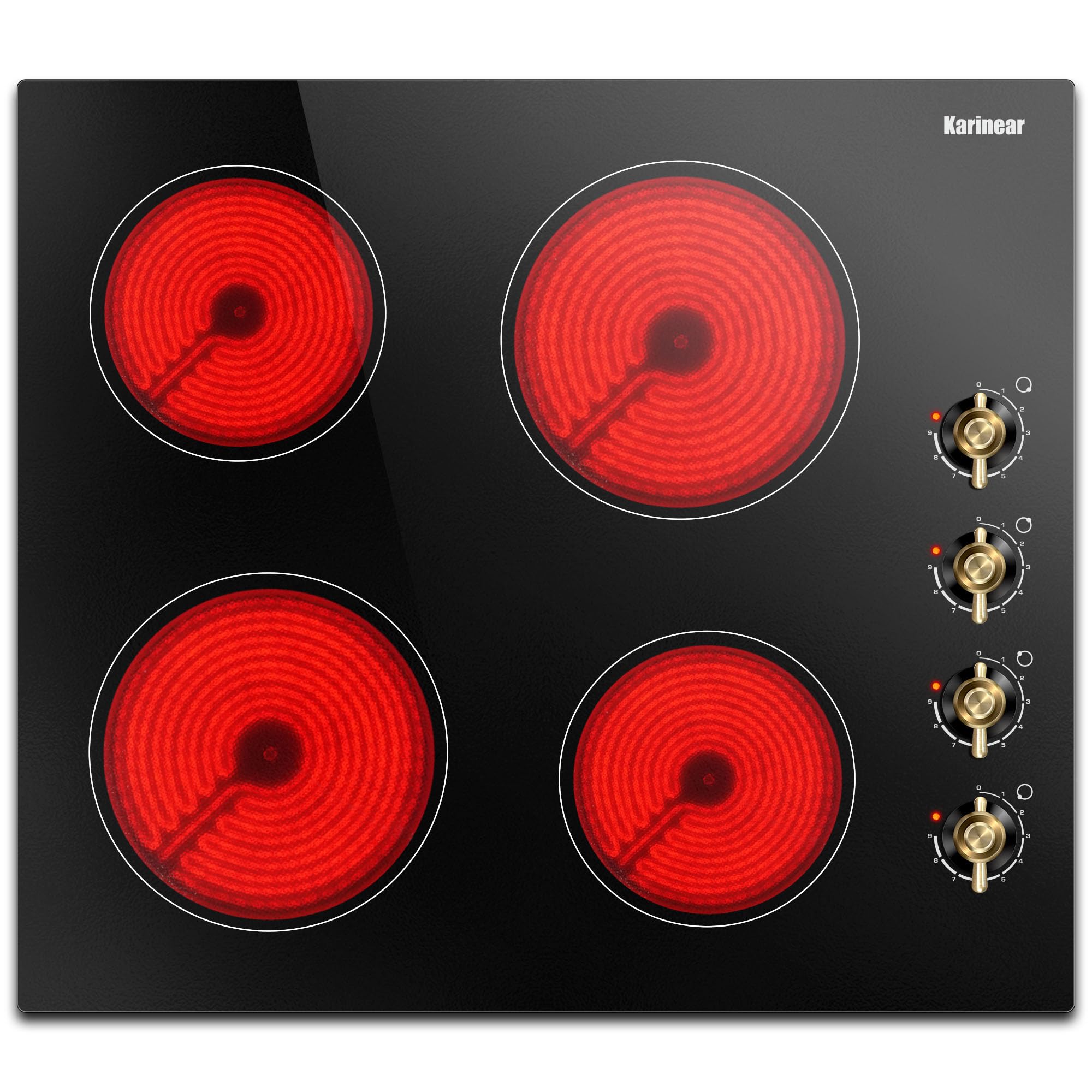

Сүрөт: жогорудан төмөнгө view of the Karinear 24 Inch Electric Cooktop, showcasing its four radiant burners and side-mounted knob controls.
Негизги өзгөчөлүктөрү:
- Knob-Controlled Operation: Each knob is dedicated to controlling a single burner, providing straightforward and simple operation.
- 9 Кубат деңгээлинин жөндөөлөрү: Offers precise temperature control for a variety of cooking methods, from gentle simmering to rapid boiling.
- 6000W Жогорку кубаттуулук: Delivers fast heating performance across all four burners.
- Көптөгөн коргоо функциялары: Includes over-temperature protection, automatic shutoff, and residual heat warnings for enhanced safety.
- Тазалоо оңой: The black glass surface is simple to maintain, requiring only a damp тазалоо үчүн кездеме.
- Universal Cookware Compatibility: Works with any flat-bottomed cookware.
Сүрөт: жакын план view of the cooktop's control panel, highlighting the four gold-colored knobs for individual burner control.
3. Орнотуу жана орнотуу
Proper installation is crucial for the safe and optimal performance of your electric cooktop. It is highly recommended that installation be performed by a qualified electrician.
Электрдик талаптар
- This cooktop requires a 220-240V power supply.
- It is a hardwired model and does not come with a plug.
- 40 жашка арналганamp circuit is typically required to support the 6000W power output. Consult local electrical codes and a professional for specific requirements.
Өлчөмдөр жана кесүү
- Продукциянын өлчөмдөрү: 23.23 x 20.47 x 2.4 дюйм (590 x 520 x 61 мм)
- Cut-out Dimensions: 22.44 x 19.7 inches (570 x 500 mm)
Image: Detailed diagram illustrating the cooktop's overall dimensions, the required countertop cutout dimensions, and a basic electrical wiring schematic for hardwired installation.
Орнотуу бүттүview
The cooktop is designed for drop-in installation into a prepared countertop cutout. Ensure the cutout dimensions match the specifications provided. Secure the cooktop using the provided mounting hardware. Connect the hardwired electrical supply according to local codes and the wiring diagram.
Видео: кутудан чыгуу жана андан ашыкview of the Karinear 4 Burner Electric Cooktop, including a discussion of its features and hardwired installation requirements. This video provides visual context for the product and its setup.
4. Иштөө нускамалары
Your Karinear electric cooktop is designed for simple and efficient cooking. Follow these instructions for safe and effective operation.
Turning On/Off and Adjusting Heat
- Each burner is controlled by its dedicated knob located on the side panel.
- To turn on a burner, rotate the corresponding knob clockwise to the desired power level (1-9). The burner will begin to heat up, and the radiant element will glow red.
- To adjust the heat, simply turn the knob to a higher or lower number.
- To turn off a burner, rotate the knob counter-clockwise back to the 'OFF' position.
Image: The cooktop in use, demonstrating different power levels for various cooking tasks, from simmering to boiling.
Калдык жылуулук көрсөткүчү
After a burner is turned off, a residual heat indicator light will remain illuminated until the surface has cooled to a safe temperature. Do not touch the burner surface while the indicator light is on.
Идиштин шайкештиги
This electric cooktop is compatible with all types of flat-bottomed cookware, including iron, stainless steel, casserole dishes, aluminum, glass, copper, and ceramic pots and pans.
Image: A visual guide showing different types of flat-bottomed cookware, such as iron, stainless steel, and glass, that can be used on the cooktop.
Video: A demonstration of the cooktop's operational features, including turning on burners, adjusting heat levels, and highlighting the residual heat indicator. This video provides a practical guide to using the appliance.
5. Техникалык тейлөө жана тазалоо
Maintaining your Karinear electric cooktop is simple due to its smooth glass surface. Regular cleaning will keep it looking new and functioning efficiently.
Плита бетин тазалоо
- Always ensure the cooktop is cool and all indicator lights are off before cleaning.
- Wipe the black glass surface with a damp кездеме жана жумшак жуугуч.
- For stubborn stains or burnt-on food, use a ceramic cooktop cleaner and a non-abrasive pad or scraper (if provided).
- таза менен жакшылап чайкоо, гamp cloth and dry with a soft towel to prevent streaks.
- Do not use abrasive cleaners, scouring pads, or harsh chemicals as they can damage the glass surface.
Image: A hand wiping the sleek black glass surface of the cooktop with a cloth, demonstrating the ease of cleaning.
6. Кыйынчылыктарды
If you encounter any issues with your cooktop, refer to the following common troubleshooting tips. For problems not listed here, contact customer support.
Жалпы маселелер:
- Плита күйбөй жатат: Check the circuit breaker to ensure power is supplied to the unit. Verify that the cooktop is properly hardwired.
- Күйгүч жылыбайт: Ensure the control knob for the specific burner is turned to an active power level. Check if the cookware is flat-bottomed and making good contact with the burner surface.
- Residual Heat Indicator Remains On: This is normal. The light will turn off once the burner surface has cooled down sufficiently.
- Тегиз эмес жылытуу: Ensure the cookware is centered on the burner and has a flat bottom.
- Биринчи колдонууда өзгөчө жыт: A slight odor may be present during the first few uses as manufacturing residues burn off. This is normal and will dissipate.
7. Техникалык шарттар
| Өзгөчөлүк | Спецификация |
|---|---|
| Бренд | Каринеар |
| Модель номери | KNC-D46003-MG-G |
| Продукциянын өлчөмдөрү | 23.23 x 20.47 x 2.4 дюйм |
| Элемент Салмагы | 22 фунт |
| Жылытуу элементтери | 4 |
| Power Source | Зымдуу электр (зымдуу) |
| Күйүүчү май түрү | Электр |
| Жылыткыч бетинин материалы | Айнек керамикалык |
| Өзгөчөлүктөр | 9 power levels, Overheat protection, Residual heat indication |
| Тtage | 220-240V |
| Жалпы күч | 6000 Вт |
8. Кепилдик жана колдоо
Warranty information for your Karinear Electric Cooktop is typically included with the product packaging or can be found on the manufacturer's official website. Please refer to these documents for details regarding coverage and terms.
Кардарларды колдоо
For any questions, technical assistance, or service inquiries, please contact Karinear customer support. Keep your model number (KNC-D46003-MG-G) and purchase information readily available when contacting support.
Manufacturer: Karinear
