Magic Chef Refrigerator Door Gasket/Seal Replacement Manual

1. Киришүү

This manual provides detailed instructions for the proper installation and maintenance of the replacement door gasket/seal, part number 3020400020, designed for specific Magic Chef refrigerator models. Adhering to these instructions will ensure optimal performance and longevity of your appliance's door seal.

Please read this manual thoroughly before beginning the installation process.

2. Продукт бүтүп калдыview

The replacement door gasket/seal is a critical component for maintaining the internal temperature of your refrigerator. It creates an airtight seal between the refrigerator door and the main unit, preventing cold air from escaping and warm air from entering. This specific gasket is black in color and is designed for a precise fit.

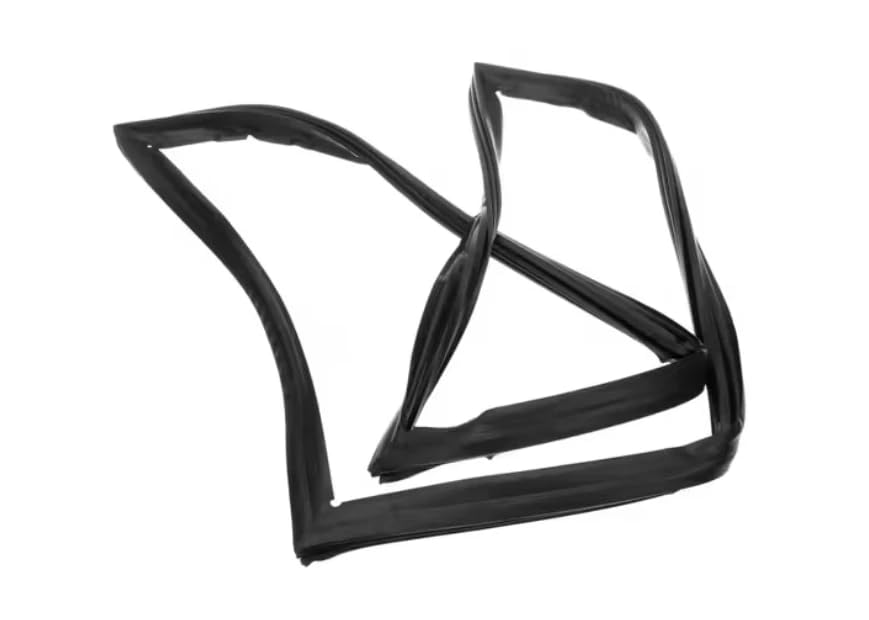

Figure 1: The replacement door gasket/seal, shown in its folded state. This component is essential for maintaining the refrigerator's internal temperature by sealing the door.

3. Шайкештик

This replacement door gasket/seal (part number 3020400020) is specifically designed for Magic Chef refrigerator models:

• HMBR440BE
• HMBR440SE
• HMAR44

Before proceeding with installation, verify that your refrigerator model number matches one of the listed compatible models to ensure proper fit and function.

4. Орнотуу боюнча нускамалар

Керектүү куралдар:

• Жалпак бурагыч же шпаклевка бычак
• Жумшак самын жана суу эритмеси
• Таза кездеме

1. Даярдоо: Unplug the refrigerator from the power outlet to ensure safety. Empty the contents of the refrigerator door shelves if necessary to provide clear access.
2. Эски прокладканы алып салуу: Carefully pry the old gasket away from the door panel. Most gaskets are held in place by a channel or clips. Use a flathead screwdriver or putty knife to gently lift the edges of the gasket, working your way around the entire perimeter of the door.
3. Clean Door Channel: Once the old gasket is removed, thoroughly clean the gasket channel on the refrigerator door with mild soap and water. Remove any debris, food particles, or adhesive residue. Dry the channel completely with a clean cloth.
4. Жаңы прокладканы орнотуу: Begin by aligning one corner of the new gasket with a corner of the refrigerator door channel. Press the gasket firmly into the channel, working your way around the door. Ensure the gasket is seated evenly and securely. Some gaskets may require gentle stretching or manipulation to fit perfectly.
5. Check for Proper Seal: Once installed, close the refrigerator door and check for any gaps or areas where the gasket is not sealing properly. You can perform a "dollar bill test" by closing the door on a dollar bill. If you can easily pull the bill out, the seal in that area may be compromised. Adjust the gasket as needed.
6. Күчтү калыбына келтирүү: Муздаткычты кайра розеткага сайыңыз.

Эскертүү: For optimal sealing, it is sometimes recommended to warm the new gasket slightly before installation (e.g., by soaking it in warm water for a few minutes) to make it more pliable. Ensure it is dry before installation.

5. Техникалык тейлөө

Regular maintenance of your refrigerator door gasket will extend its lifespan and ensure efficient operation of your appliance.

• Тазалоо: Clean the gasket regularly with a mild soap and water solution and a soft cloth. Avoid abrasive cleaners or harsh chemicals, as these can damage the gasket material.
• Текшерүү: Periodically inspect the gasket for cracks, tears, or signs of wear. A damaged gasket can lead to energy loss and inefficient cooling.
• Тоскоолдуктарды болтурбоо: Ensure that food items or containers do not obstruct the gasket when the door is closed, as this can deform the seal over time.

6. Кыйынчылыктарды

If you experience issues after replacing the gasket, consider the following:

• Door Not Sealing Properly:
  • Ensure the gasket is fully seated in the door channel.
  • Check for any twists or kinks in the gasket.
  • Verify that the refrigerator door hinges are properly aligned and not sagging.
• Condensation Around Door: This often indicates a poor seal. Re-inspect the gasket for proper installation and any damage.
• Муздаткыч үзгүлтүксүз иштеп жатат: A faulty seal can cause the compressor to work harder. Check the gasket and ensure the door is closing completely.

7. Техникалык шарттар

8. Кепилдик жана колдоо

For specific warranty information regarding this replacement part, please refer to the documentation provided by the retailer or manufacturer at the time of purchase. For technical support or further assistance with installation, please contact the seller or a qualified appliance technician.

Always ensure to purchase genuine replacement parts to maintain the integrity and warranty of your appliance.
