Introduction
Thank you for choosing the VONROC CH516AC 2500W WiFi Electric Convector Heater. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your new heater. Please read these instructions carefully before use and retain them for future reference.
Маанилүү коопсуздук нускамалары
Always observe basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury to persons. This includes:
- Бул жылыткычты колдонуудан мурун бардык нускамаларды окуп чыгыңыз.
- Бул жылыткычты ваннага, душка же бассейнге жакын жерде колдонбоңуз.
- Do not cover the heater. A warning label "DO NOT COVER" is present on the appliance.
- VoltagРейтингдин этикеткасында көрсөтүлгөн e электр тармагынын томуна туура келетtagсиздин үйүңүздө.
- Балдарды жана үй жаныбарларын жылыткычтан алыс кармаңыз.
- Do not insert any objects into the heater openings.
- Колдонулбаган учурда жылыткычты сууруп коюңуз.
- Эгерде шнур бузулуп калса, коркунучту болтурбоо үчүн аны өндүрүүчү, анын тейлөө агенти же ушул сыяктуу квалификациялуу адамдар алмаштырышы керек.

Продукт өзгөчөлүктөрү
- 2500W heating power.
- Integrated WiFi for smart control via Tuya App.
- Adjustable thermostat (5-50 °C).
- Таймер функциясы.
- Multiple operating modes: Eco, Comfort, Anti-freeze.
- IP24 splash-proof rating.
- Suitable for wall mounting or floor standing.
- Heats areas up to 30 m².
Пакеттин мазмуну
Таңгактан чыгарганда бардык компоненттер бар экенин жана бузулбаганын текшериңиз:
- VONROC CH516AC конвектор жылыткыч
- Feet for floor standing (if applicable)
- Wall mounting kit (screws, anchors)
- User Manual
Орнотуу жана орнотуу
1. Floor Standing Installation
- Carefully unpack the heater and all accessories.
- Attach the provided feet to the bottom of the heater using the screws. Ensure they are securely fastened.
- Place the heater on a flat, stable surface, away from flammable materials and at least 1 meter from furniture or curtains.

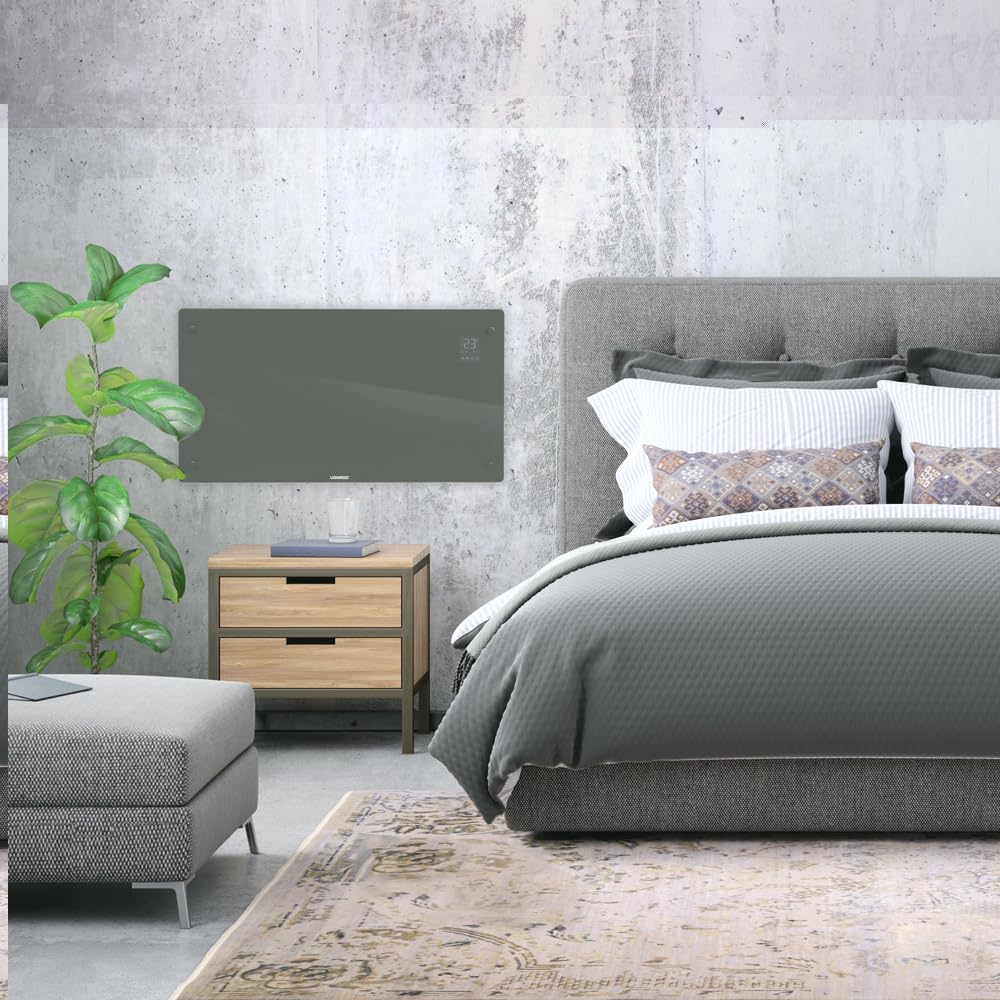

2. Wall Mounting Installation
- Choose a suitable wall location, ensuring sufficient clearance around the heater (at least 15 cm from the floor and ceiling, and 30 cm from side walls).
- Mark the drilling points on the wall using the provided template or by measuring the mounting brackets on the back of the heater.
- Тешиктерди бургула жана дубалга анкерлерди салгыла.
- Secure the wall mounting brackets to the wall with screws.
- Carefully hang the heater onto the wall brackets, ensuring it is securely seated.


Иштөө нускамалары
1. Баштапкы күйгүзүү
Plug the heater into a suitable electrical outlet. The digital display will illuminate.

2. Кол менен башкаруу
- Кубат баскычы: Жылыткычты күйгүзүү/өчүрүү үчүн басыңыз.
- Температураны жөндөө: Use the '+' and '-' buttons on the control panel or app to set the desired temperature between 5°C and 50°C.
- Режим тандоо: Cycle through Eco, Comfort, and Anti-freeze modes using the mode button.
- Таймер: Автоматтык түрдө өчүрүү үчүн таймерди коюңуз.
3. WiFi and App Control (Tuya App)
- Смартфонуңуздун колдонмолор дүкөнүнөн "Tuya Smart" тиркемесин жүктөп алыңыз.
- Катталыңыз же Туя аккаунтуңузга кириңиз.
- Ensure your heater is powered on and the WiFi indicator on the display is blinking (if not, press and hold the WiFi button on the heater for 5 seconds to enter pairing mode).
- In the Tuya app, tap '+' to add a device. Select "Heater" or "Convector Heater" from the list.
- Follow the on-screen instructions to connect the heater to your home WiFi network.
- Once connected, you can control the heater remotely, set schedules, and monitor its status via the app.
Техникалык тейлөө
Үзгүлтүксүз тейлөө сиздин жылыткычыңыздын оптималдуу иштешин жана узак иштөөсүн камсыз кылат.
- Тазалоо: Disconnect the heater from the power supply before cleaning. Wipe the exterior with a soft, damp кездеме. Абразивдүү тазалагычтарды же эриткичтерди колдонбоңуз.
- Сактагыч: If storing the heater for an extended period, unplug it, allow it to cool completely, and store it in a dry, dust-free location.
- Текшерүү: Periodically check the power cord and plug for any signs of damage. If damaged, contact qualified personnel for repair.

Проблемаларды чечүү
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Жылыткыч күйбөйт. | Электр энергиясы жок; Кубат баскычы басылган эмес; Ашыкча ысып кетүүдөн коргоо иштетилди. | Check power connection; Press power button; Unplug and allow to cool for 30 minutes. |
| Жылыткыч эффективдүү жылытылбайт. | Temperature setting too low; Room size too large; Obstruction of air vents. | Increase temperature setting; Ensure heater is appropriate for room size; Clear any obstructions. |
| WiFi туташуу маселелери. | Incorrect WiFi password; Heater too far from router; Router issues; Heater not in pairing mode. | Verify WiFi password; Move heater closer to router; Restart router; Put heater in pairing mode (long press WiFi button). |
| адаттан тыш үндөр же жыттар. | чаң топтоо; Ички күнөө. | Unplug and clean the heater; If problem persists, discontinue use and contact customer support. |
Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | ВОНРОК |
| Модель номери | CH516AC |
| Жылытуу күчү | 2500 Ватт |
| Тtage | 230 вольт |
| Thermostat Temperature Range | 5 - 50 °C |
| Максималдуу Температура орнотуу | 35 °C |
| IP рейтинги | IP24 (чачууга каршы) |
| Control | Digital display, Buttons, Tuya App (WiFi) |
| Монтаждоо параметрлери | Wall-mounted or Floor standing |
| Сунушталган бөлмө өлчөмү | 30 м² чейин |
Кепилдик жана колдоо
VONROC products are manufactured to high quality standards. In the unlikely event of a defect, please contact your retailer or VONROC customer service for assistance. Keep your proof of purchase for warranty claims.
For further support, visit the official VONROC webсайтка же кардарларды тейлөө бөлүмүнө кайрылыңыз.
