ganopterygon TK09 Smart Watch User Manual

1. Киришүү

Thank you for choosing the ganopterygon TK09 Smart Watch. This device is a 1.85-inch HD fitness tracker designed for both men and women, offering features such as call answering and making, over 100 sports modes, sleep monitoring, heart rate monitoring, and IP68 waterproof rating. It is compatible with Android and iOS devices. This manual provides essential information for setting up, operating, and maintaining your smart watch.

2. Пакеттин мазмуну

Пакетиңизде бардык буюмдар бар экенин текшериңиз:

• ganopterygon TK09 Smart Watch
• Заряддоо кабели
• Колдонуучунун Колдонмосу (бул документ)

3. Продукт бүтүп калдыview

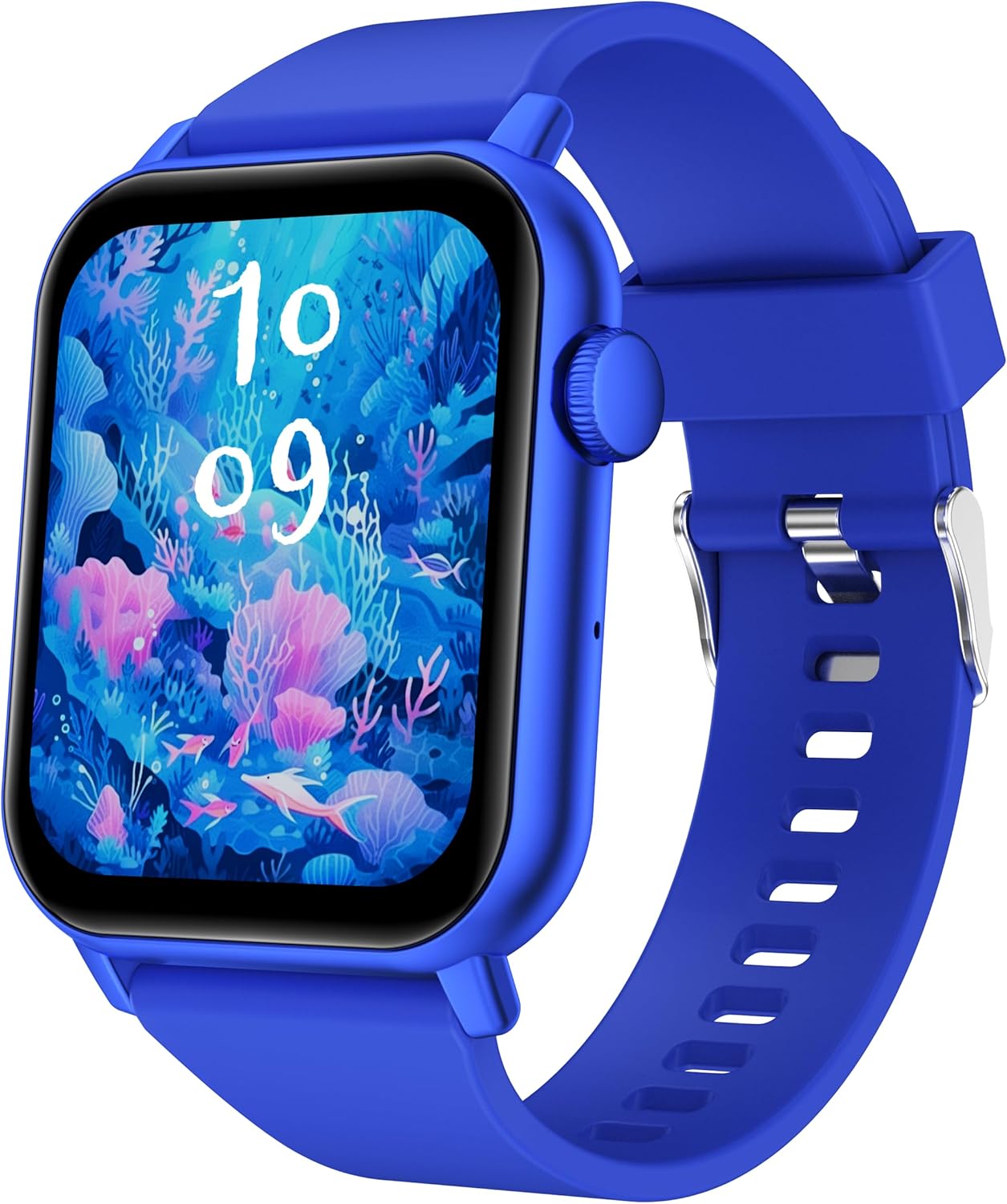

This image displays the ganopterygon TK09 Smart Watch. It features a rectangular screen with a vibrant digital watch face depicting an underwater scene with coral and fish. The watch has a blue silicone strap with a silver buckle. A circular button is visible on the right side of the watch casing.

The ganopterygon TK09 Smart Watch features a 1.85-inch HD display for clear visuals. It includes a side button for navigation and control. The watch is equipped with sensors on the back for health monitoring. The durable silicone strap ensures comfortable wear.

4. Орнотуу

4.1 Аппаратты заряддоо

Before first use, fully charge your smart watch. Connect the magnetic charging cable to the charging contacts on the back of the watch and plug the USB end into a standard USB power adapter (not included) or a computer USB port. The watch display will indicate charging status.

4.2 Кошумча тиркемени жүктөп алуу

To unlock all features, download the dedicated companion app on your smartphone. Scan the QR code provided in the quick start guide or search for the app name (usually found in the quick start guide or on the watch packaging) in the Apple App Store (for iOS) or Google Play Store (for Android).

4.3 Смартфонуңуз менен жупташуу

1. Акылдуу саатыңыз кубатталып, күйгүзүлгөнүн текшериңиз.
2. Смартфонуңузда Bluetooth'ду иштетиңиз.
3. Каттоо эсебин түзүү же кирүү үчүн шерик колдонмосун ачып, экрандагы нускамаларды аткарыңыз.
4. In the app, navigate to the device pairing section and select your TK09 Smart Watch from the list of available devices.
5. Жупташуу өтүнүчүн саатыңызда жана смартфонуңузда ырастаңыз.

5. Иштөө нускамалары

5.1 Негизги навигация

• Сенсордук экран: Менюларды жана функцияларды чабыттоо үчүн солго/оңго, өйдө/ылдый сүрүңүз. Тандоо үчүн таптаңыз.
• Каптал баскычы: Press to wake up the screen, return to the main watch face, or access the app menu. A long press may power on/off the device or activate a specific function.

5.2 Сааттын беттерин өзгөртүү

From the main watch face, long-press the screen to enter the watch face selection menu. Swipe left or right to browse available watch faces and tap to select your preferred one. More watch faces can be downloaded and customized via the companion app.

5.3 Билдируулер

Once paired with your smartphone, the watch can display notifications for calls, messages, and various apps. Ensure notification permissions are enabled in both your phone's settings and the companion app.

6. Өзгөчөлүктөрү

6.1 Ден соолуктун мониторинги

• Жүрөктүн кагышын көзөмөлдөө: The watch continuously or periodically monitors your heart rate. View саат боюнча реалдуу убакыт дайындары же колдонмодогу деталдуу тренддер.
• Уйкунун мониторинги: Tracks your sleep patterns, including deep sleep, light sleep, and wake times. Access sleep analysis in the companion app.

6.2 Спорт режимдери

The TK09 Smart Watch supports over 100 sports modes. Navigate to the 'Sports' or 'Workout' section on your watch, select your activity, and start tracking. Data such as duration, calories burned, and heart rate will be recorded.

6.3 Чалуу функциясы

With its built-in microphone and speaker, the watch allows you to answer and make calls directly from your wrist when connected to your smartphone via Bluetooth. Ensure Bluetooth calling is enabled in the app settings.

6.4 IP68 суу өткөрбөө рейтинги

The device is IP68 rated, meaning it is resistant to dust and can withstand immersion in water up to 1.5 meters for up to 30 minutes. It is suitable for daily use, hand washing, and light rain. Avoid hot water, steam, or prolonged immersion in deep water.

7. Техникалык тейлөө

• Тазалоо: Саатыңызды жана боону жумшак, кургак чүпүрөк менен үзгүлтүксүз тазалап туруңуз. Зарыл болсо, бир азamp кездеме жана жумшак самын, андан кийин жакшылап жууп, кургатуу.
• Химиялык заттардан алыс болуңуз: Катуу химиялык заттарды, тазалоочу эриткичтерди же күчтүү жуугучтарды колдонбоңуз, анткени алар сааттын сыртына жана пломбаларына зыян келтириши мүмкүн.
• Батареяга кам көрүү: To prolong battery life, avoid extreme temperatures. Charge the watch regularly and do not let the battery completely drain for extended periods.

8. Кыйынчылыктарды

9. Техникалык шарттар

10. Кепилдик жана колдоо

For warranty information and customer support, please refer to the documentation included with your purchase or contact ganopterygon customer service through their official website or the contact information provided in the companion app. Please retain your proof of purchase for warranty claims.
