YITAMOTOR Running Boards Side Steps Instruction Manual

1. Продукт бүтүп калдыview жана Шайкештик

This manual provides instructions for the YITAMOTOR 6-inch Black Step Rail Nerf Bars. These running boards are designed to provide a secure and convenient step for vehicle entry and exit.

Унаа шайкештиги:

• 2009-2018 Dodge Ram 1500 Crew Cab
• 2019-2024 Dodge Ram 1500 Classic
• 2010-2026 Dodge Ram 2500/3500 Crew Cab

These running boards are engineered to match manufacturer-set mounting points for a secure, no-drill installation.

Image 1.1: Vehicle compatibility chart. Ensure your vehicle is a Crew Cab and matches the Classic Ram body style for proper fitment.

2. Коопсуздук маалыматы

Before installation and use, please read and understand all instructions. Failure to follow these instructions may result in personal injury or product damage.

• Always ensure all mounting hardware is securely tightened before driving.
• Do not exceed the maximum weight capacity of 500 lbs per side step.
• Жумушчу тактайларды жана бекитүүчү жабдыктарды эскирүүнүн, бузулуунун же бошоп калгандыгынын белгилерин үзгүлтүксүз текшерип туруңуз.
• Exercise caution when stepping on or off the running boards, especially in wet or icy conditions.

3. Кутуда эмне бар

Орнотууну баштоодон мурун бардык компоненттер бар экендигин текшериңиз:

• 2 x Running Boards (Left and Right)
• Монтаждоочу аппараттык комплект
• кашаалар

4. Орнотуу жана орнотуу

Installation of the YITAMOTOR running boards is designed to be a no-drill process, utilizing existing factory mounting points on your vehicle's frame. It is recommended to have a second person assist with the installation.

1. Монтаждоо пункттарын аныктоо: Locate the pre-drilled holes on your vehicle's frame, typically beneath the rocker panels. These are the designated attachment points for the brackets.
2. Кашаларды тиркөө: Secure the provided brackets to the vehicle's frame using the supplied hardware. Ensure all bolts are hand-tightened initially.
3. Position Running Boards: Carefully lift each running board and align it with the attached brackets. The unique slide rail design allows for adjustable positioning forward or backward to achieve your preferred stepping location.
4. Коопсуз чуркоо такталары: Attach the running boards to the brackets using the remaining hardware. Once both running boards are in place and properly aligned, fully tighten all bolts to the manufacturer's recommended torque specifications.
5. Акыркы текшерүү: After tightening, perform a final check to ensure all components are secure and the running boards are stable.

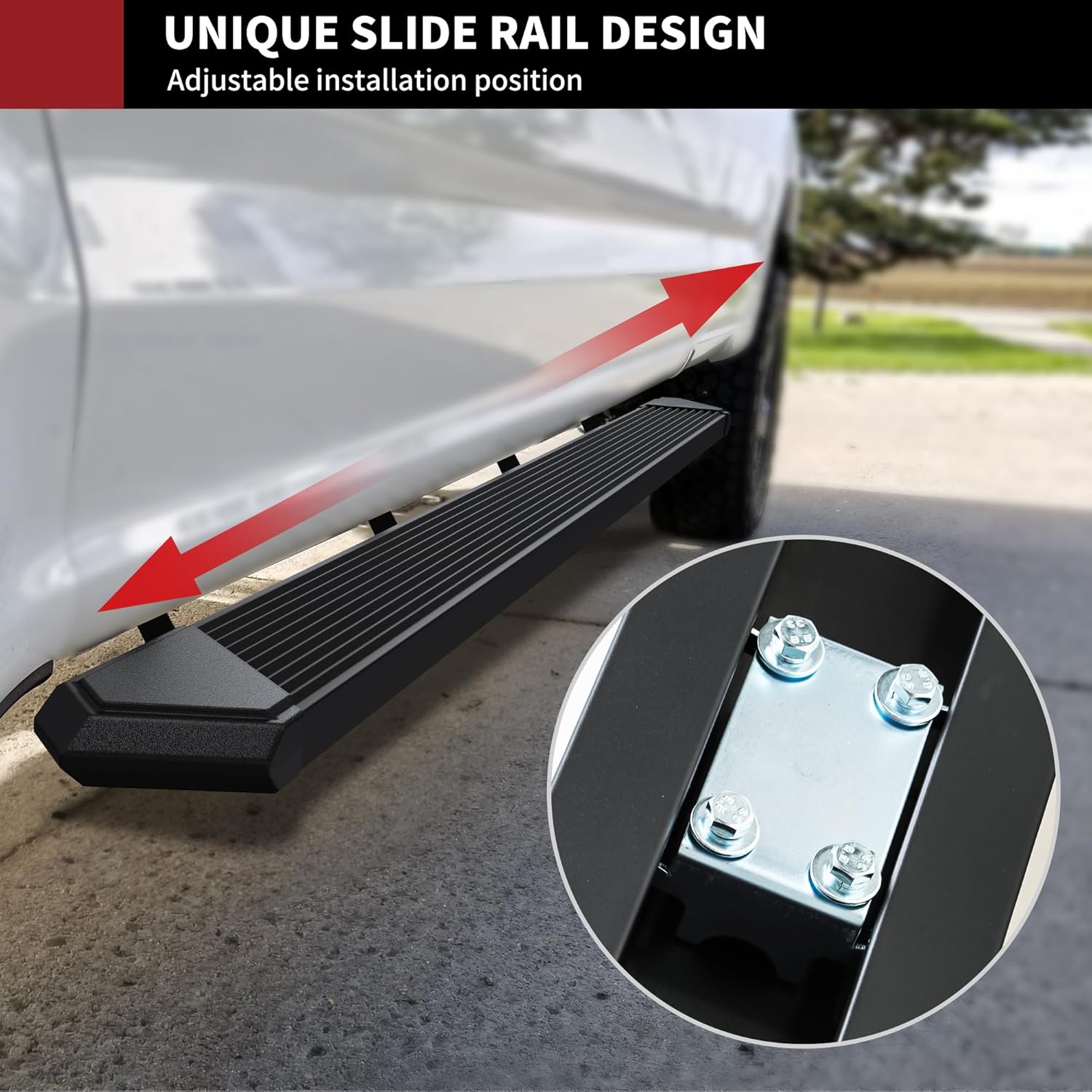

Image 4.1: The unique slide rail design allows for adjustable installation positions.

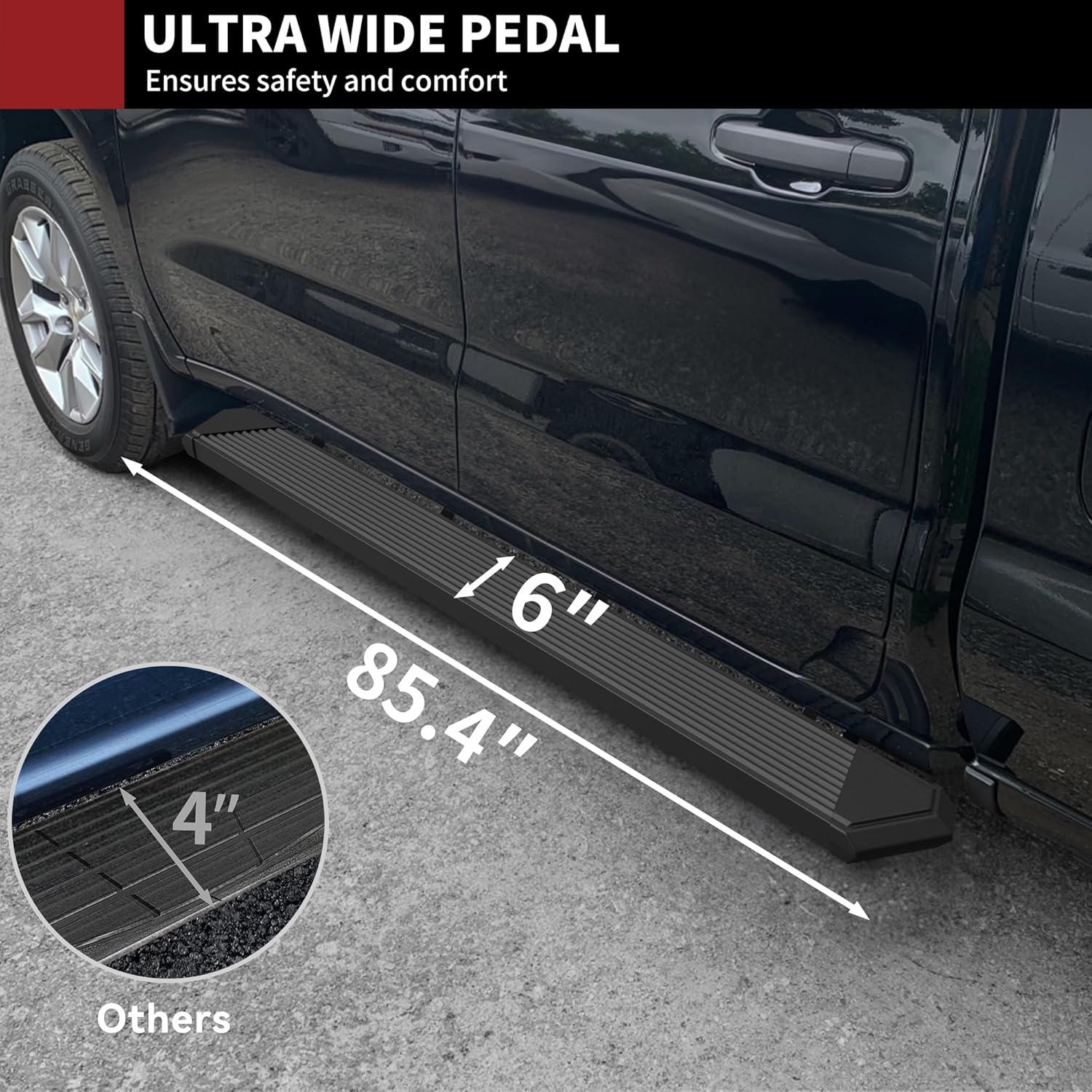

Image 4.2: Ultra-wide pedal for enhanced safety and comfort during use.

5. Иштөө нускамалары

The YITAMOTOR running boards provide a stable and secure platform for easier access to your truck's cabin. The oversized pedal grips offer powerful traction, ensuring safe footing in various conditions.

• Step firmly onto the running board when entering or exiting the vehicle.
• The non-slip surface is designed to maintain grip even when wet, icy, muddy, or dusty.
• The running boards are rated to support up to 500 lbs.

Image 5.1: Demonstrating safe use of the running boards for vehicle entry.

6. Техникалык тейлөө

To ensure the longevity and appearance of your running boards, follow these simple maintenance guidelines:

• Тазалоо: The stainless steel surface is designed for easy cleaning. Wipe clean with a damp cloth and mild soap as needed. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
• Текшерүү: Periodically check all mounting hardware for tightness. Re-tighten any loose bolts to prevent rattling or instability.
• Даттын алдын алуу: The running boards are constructed from rust-resistant stainless steel with a black powder-coated finish. However, regular cleaning, especially after exposure to road salt or harsh weather, will help maintain their condition.

Image 6.1: The running boards feature great salt resistance and anti-slip step pads.

7. Кыйынчылыктарды

If you encounter any issues with your YITAMOTOR running boards, consider the following:

• Loose or Rattling Boards: Check all mounting bolts and brackets. Ensure they are securely tightened. Over time, vibrations can cause bolts to loosen.
• Басуудагы кыйынчылык: If the step position is not ideal, utilize the configurable slider option to adjust the running board's placement.
• адаттан тыш үндөр: Inspect for any contact points between the running board and the vehicle body or other components. Adjust as necessary.

For persistent issues or concerns not addressed here, please contact YITAMOTOR customer support.

8. Техникалык шарттар

9. Кепилдик жана колдоо

For warranty information or technical assistance, please contact YITAMOTOR customer support directly. Refer to your purchase documentation for specific warranty terms and contact details.

You can typically find support information on the official YITAMOTOR webсайт же продукт сатылып алынган сатуучу аркылуу.
