Продукт бүттүview
The Hygger HG201 Adjustable Triple-Power Aquarium Heater is designed to provide precise and stable temperature control for both freshwater and saltwater aquariums. Featuring an external digital controller, this submersible heater offers flexible wattage options and multiple safety protections to ensure a healthy aquatic environment.

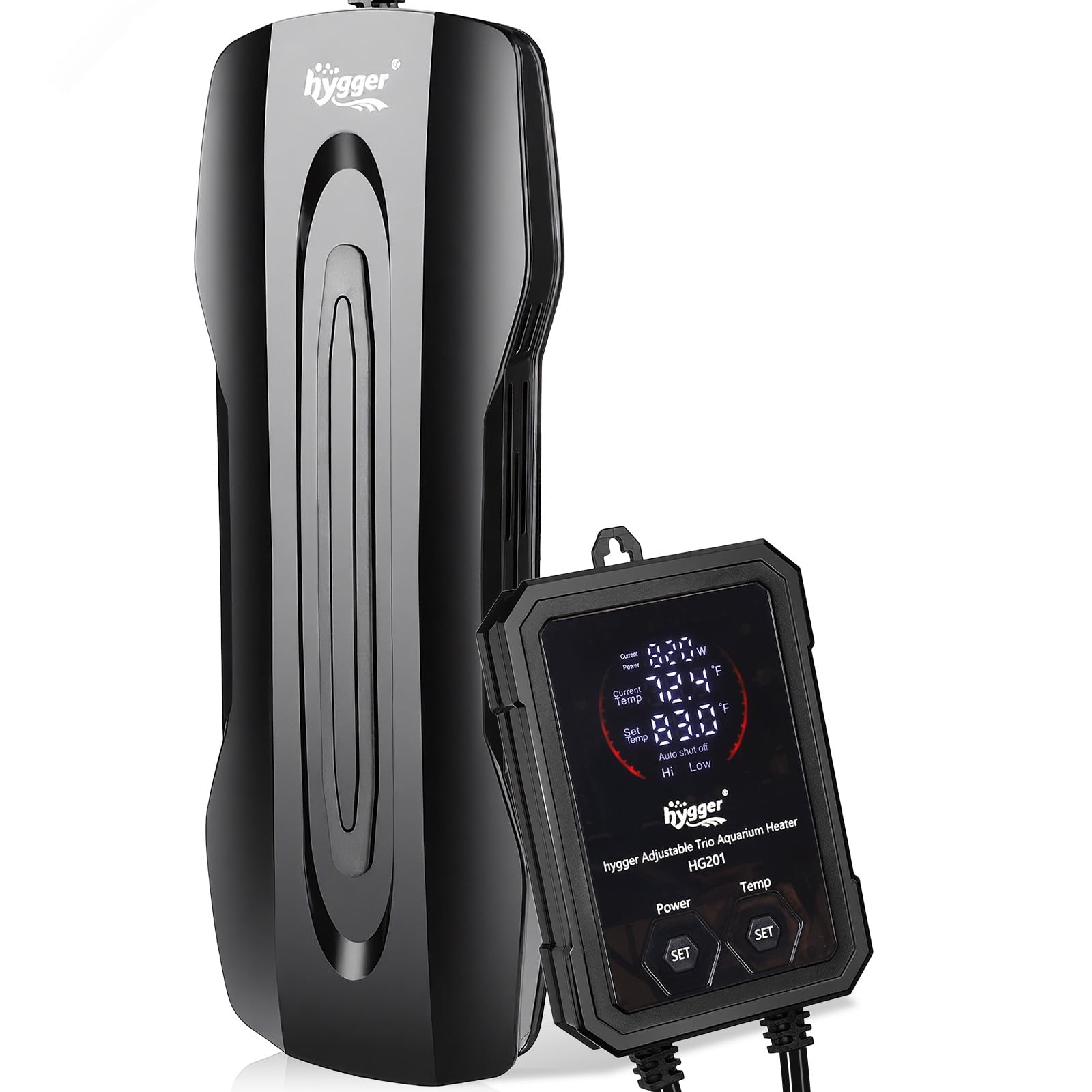

Figure 1: Hygger HG201 Adjustable Triple-Power Aquarium Heater and its external controller.
Негизги өзгөчөлүктөрү:
- External Digital Controller: Displays current temperature, set temperature, and real-time power consumption.
- Triple-Power Options: Жөнгө салынуучу ватtage (400W-800W-1200W for 95-140Gal model) for year-round use and energy efficiency.
- Independent Heating Tubes: Innovative three-tube design ensures continued operation even if one tube fails.
- Dry-Hand Safety Protection: Automatic shutoff with flashing screen and audible beep if removed from water or water level drops.
- Туруктуу температураны көзөмөлдөө: Integrated sensor maintains precise temperature within ±1°F (±1°C) of the set point.
- Эстутум функциясы: Retains previous temperature settings after a power outage.
- Жогорку сапаттагы курулуш: Premium quartz tube with sturdy plastic outer casinбышыктыгы үчүн g.
- Ар тараптуу колдонуу: Suitable for both freshwater and saltwater aquariums.
Коопсуздук нускамалары
- Always unplug the heater and controller from the power outlet before performing any maintenance, cleaning, or handling the heater.
- Ensure the heater is fully submerged in water at all times during operation. The dry-hand safety protection will activate if the heater is exposed to air.
- Regularly inspect the power cords and heater unit for any signs of damage. Do not use if damaged.
- Keep all electrical connections and the controller dry. The controller is not waterproof.
- Do not attempt to repair or modify the heater or controller. Refer to qualified personnel for service.
- Бул шайман үй ичинде гана колдонууга арналган.
Орнотуу колдонмосу
- Компоненттерди таңгактан чыгаруу: Carefully remove the heater, external controller, suction cups, and any mounting accessories from the packaging.
- Сорох чөйчөктөрдү тиркөө: Securely attach the provided suction cups to the heater unit.
- Позиция жылыткыч: Place the heater vertically or horizontally inside your aquarium, ensuring it is fully submerged in an area with good water circulation. Avoid placing it directly in the substrate.
- Монтаждоочу: Mount the external controller in a dry, easily accessible location outside the aquarium. Use the provided mounting bracket with adhesive or screws.
- Connect Heater to Controller: Plug the heater's power cord into the designated port on the external controller.
- Күйгүзүү: Plug the controller's power cord into a suitable electrical outlet. The digital display will illuminate.
Figure 2: Heater dimensions and internal quartz heating rods for efficient heating.
Видео 1: Бүттүview of the Hygger Aquarium Heater's features and basic setup in an aquarium environment.
Иштөө нускамалары
Температураны орнотуу:
- Press the "Temp SET" button on the controller. The set temperature will flash.
- Use the up/down arrows (often integrated with the "SET" button or separate) to adjust the desired temperature between 59°F and 93°F (15°C and 34°C).
- Press the "Temp SET" button again to confirm your selection. The display will stop flashing.
- To switch between Fahrenheit (°F) and Celsius (°C), press and hold the "Temp SET" button for 8 seconds.
Орнотуу Wattage:
- Press the "Power SET" button on the controller. The current wattage setting will flash.
- Cycle through the available wattage options (400W, 800W, 1200W for this model) by pressing the "Power SET" button.
- Тандалган ватtage will determine how many of the internal heating tubes are active (e.g., 400W for one tube, 800W for two, 1200W for three).
- The heater will automatically adjust its power output based on the difference between current and set temperatures, optimizing energy use.

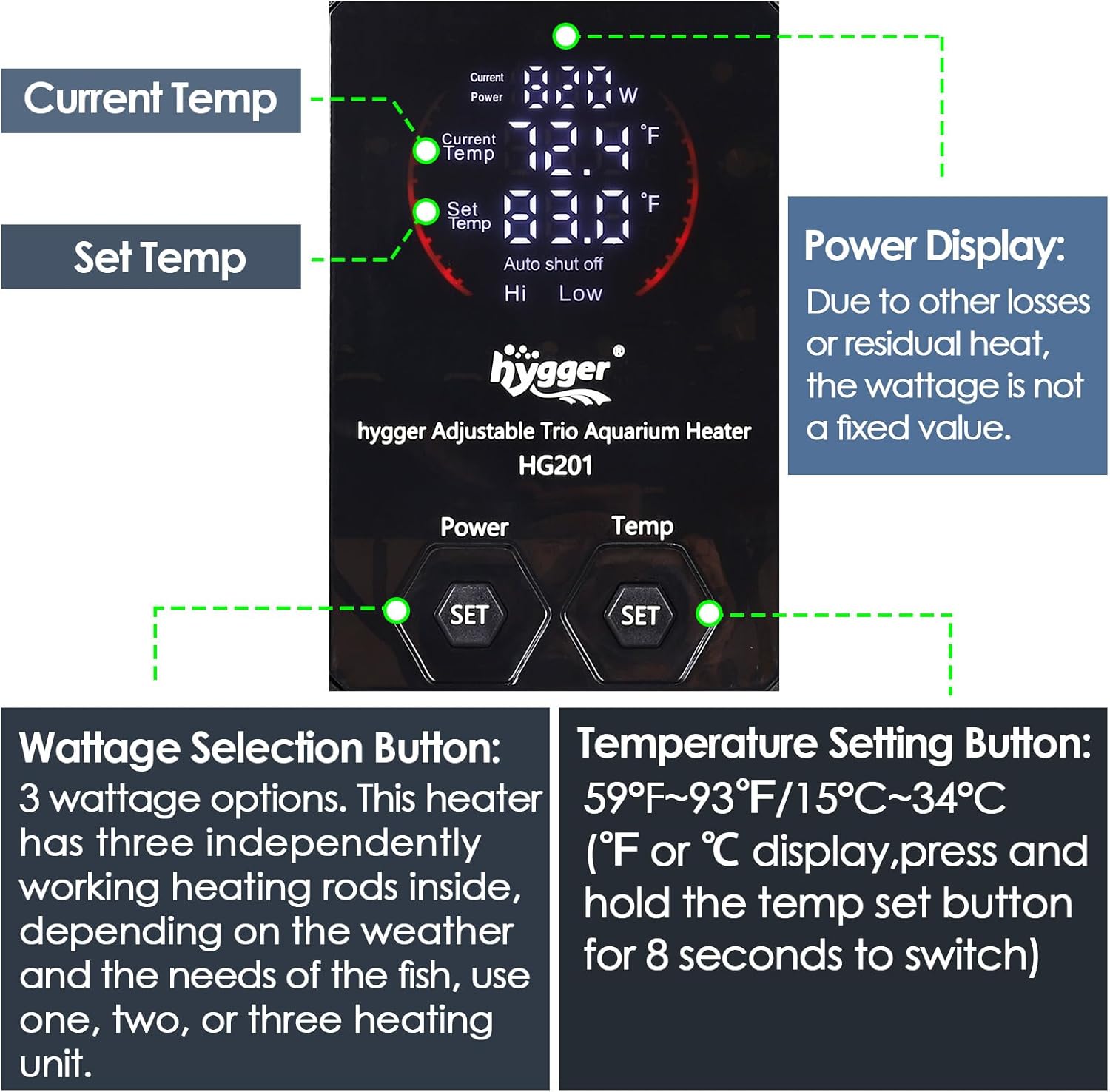

3-сүрөт: Детальдуу view of the external digital controller, showing current temperature, set temperature, power display, and control buttons.

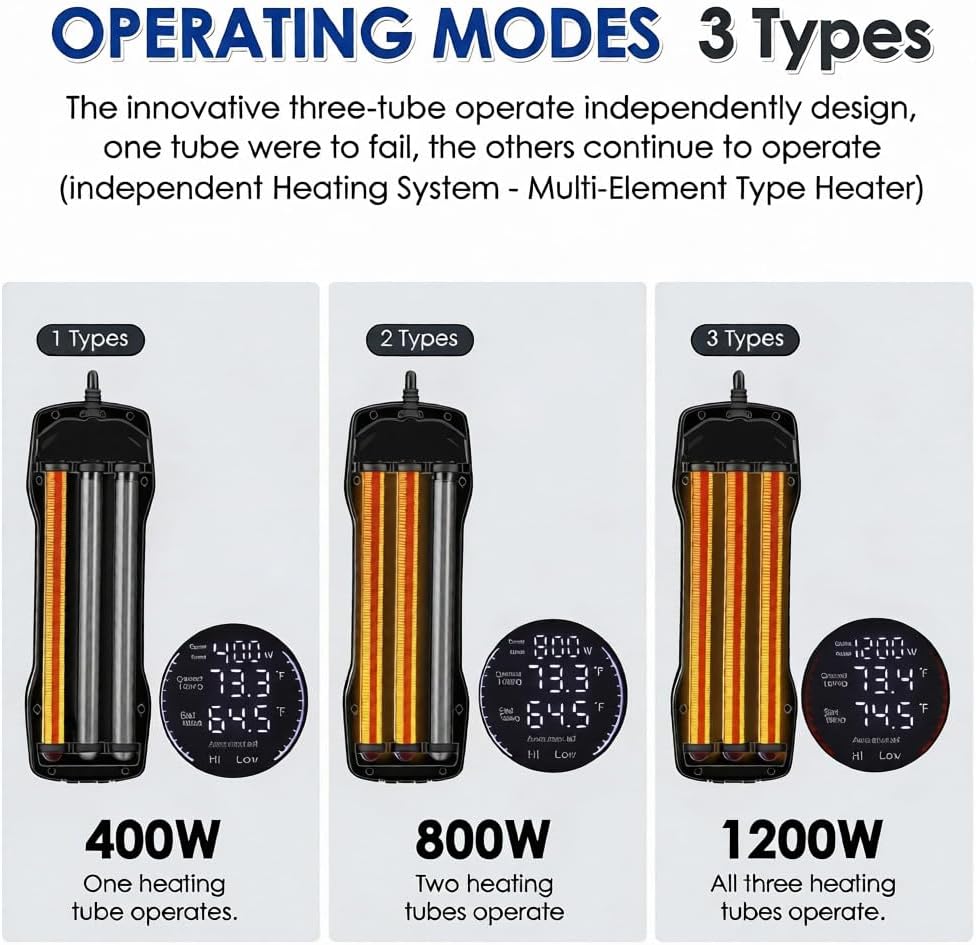

Figure 4: Illustration of the three operating modes (400W, 800W, 1200W) based on the number of active heating tubes.
Дисплейди түшүнүү:
- Current Power (W): Shows the real-time wattage being used by the heater.
- Current Temp (°F/°C): Displays the actual water temperature in the aquarium.
- Set Temp (°F/°C): Shows your desired target temperature.
- Auto Shutoff (Hi/Low): Indicates if the heater has shut off due to high or low water levels.
Техникалык тейлөө
- үзгүлтүксүз тазалоо: Periodically unplug the heater and gently wipe the exterior of the heating unit to remove any algae or debris. Do not use harsh chemicals.
- Суунун деңгээли: Always ensure the heater remains fully submerged. Evaporation can lower water levels, potentially triggering the dry-hand safety feature.
- Шнур текшерүү: Routinely check the power cords for any fraying, cuts, or damage. Replace the unit if any damage is found.
- Controller Care: Keep the external controller dry and clean. Avoid splashing water on it.
Проблемаларды чечүү
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Heater not heating / Display shows 0W | Heater reached set temperature; Power outage; Dry-hand safety activated; Incorrect wattage жөндөө. | Check if current temp matches set temp. Verify power supply. Re-submerge heater if dry-hand safety is active. Adjust wattagзарыл болсо, e жөндөөсүн тандаңыз. |
| Display shows "LL" (Low Temperature Warning) | Water temperature is significantly below set point. | Ensure heater is functioning and wattage is appropriate for tank size/ambient temperature. |
| Display shows "HH" (Overheat Warning) | Water temperature is significantly above set point. | Check ambient room temperature. Reduce wattage if necessary. Ensure proper water circulation. |
| Display shows "Sensor Fault" | Internal sensor malfunction. | Unplug and replug the unit. If error persists, contact customer support. |
| Dry-Hand Safety Activated (flashing screen, audible beep) | Heater is not fully submerged or water level is too low. | Immediately unplug the heater. Add water to the aquarium until the heater is fully submerged. Re-plug the unit. |
Figure 5: Visual representation of various safety warnings on the controller display.
Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Модель номери | HG201 |
| Бренд | гиггер |
| Кубат параметрлери | 400 Вт / 800 Вт / 1200 Вт |
| Колдонула турган танктын өлчөмү | 95Gal ~ 140Gal |
| Тtage / Frequency | AC110-120V / 60Hz |
| Температураны көзөмөлдөө диапазону | 59 ° F ~ 93 ° F (15 ° C ~ 34 ° C) |
| Температуранын тактыгы | 0.5°F (0.5°C) |
| Temperature Tolerance Range | ± 1 ° F (± 1 ° C) |
| Heater Rod Material | Premium Quartz Tube |
| Контроллердин шнурунун узундугу | 3.9 ft (from plug to controller) |
| Heater Cord Length | 6.2 ft (from controller to heater) |
| Элемент Салмагы | 3.1 фунт |
| Элементтин пакетинин өлчөмдөрү | 13.35 x 5.08 x 5 дюйм |
Figure 6: Applicable tank size and key technical specifications for the Hygger HG201 heater.
Кепилдик маалымат
The Hygger HG201 Adjustable Triple-Power Aquarium Heater comes with a 2 жылдык кепилдик сатып алынган күндөн тартып. Бул кепилдик өндүрүштүк кемчиликтерди жана нормалдуу колдонуудагы бузулууларды камтыйт. Кепилдик дооматтары үчүн сатып алганыңыздын далилин сактап коюңуз.
Кардарларды колдоо
For further assistance, troubleshooting, or warranty claims, please contact Hygger customer support through their official website or the contact information provided in your product packaging. When contacting support, please have your model number (HG201) and proof of purchase ready.
