Aerogogo GIGA насосу 4 мини аба насосу 4.2 кПа C мененampLantern колдонуучусунун инструкциясы

Introduction

The Aerogogo GIGA Pump 4 Mini Air Pump is a compact, multi-functional device designed for inflating and deflating various items, as well as providing illumination. This manual provides detailed instructions for its safe and efficient use.

Пакеттин мазмуну

• Aerogogo GIGA Pump 4 Mini Air Pump
• 5 Different Air Nozzles
• USB-C заряддоо кабели
• Сактоочу баштык
• Колдонуучунун Колдонмосу (бул документ)

Image: Aerogogo GIGA Pump 4 Mini Air Pump and its various accessories.

Продукт өзгөчөлүктөрү

• Ultra-light and Compact: Weighs approximately 3.5 ounces (100g), making it highly portable.
• High Pressure & Airflow: Delivers 4.2kPa pressure and 220 L/min airflow for efficient inflation and deflation.
• 3-ин-1 Функциясы: Serves as an air pump (inflation/deflation), vacuum pump, and campчырак.
• Интеграцияланган Campфонарь: Features 8 LEDs with 3 adjustable brightness levels (40lm, 160lm, 400lm).
• Ар тараптуу саптамалар: Includes 5 different nozzles to fit various inflatable products.
• Кайра заряддалуучу батарея: Equipped with a Type-C charging port and a low battery indicator.
• Туруктуу дизайн: IPX4 waterproof rating, concealed hook, and magnetic design for convenient use.

Image: Key features of the GIGA Pump 4, including its compact size, pressure, and airflow capabilities.

Жайгашуу

1. Аппаратты заряддоо: Before first use, fully charge the GIGA Pump 4 using the provided USB-C cable. The indicator light will show charging status.
2. Select Appropriate Nozzle: Identify the correct nozzle from the 5 included options that matches the valve of the item you intend to inflate or deflate.
3. Соплолорду бекитүү: Securely attach the selected nozzle to either the inflation port (for blowing air out) or the deflation port (for sucking air in) of the pump.

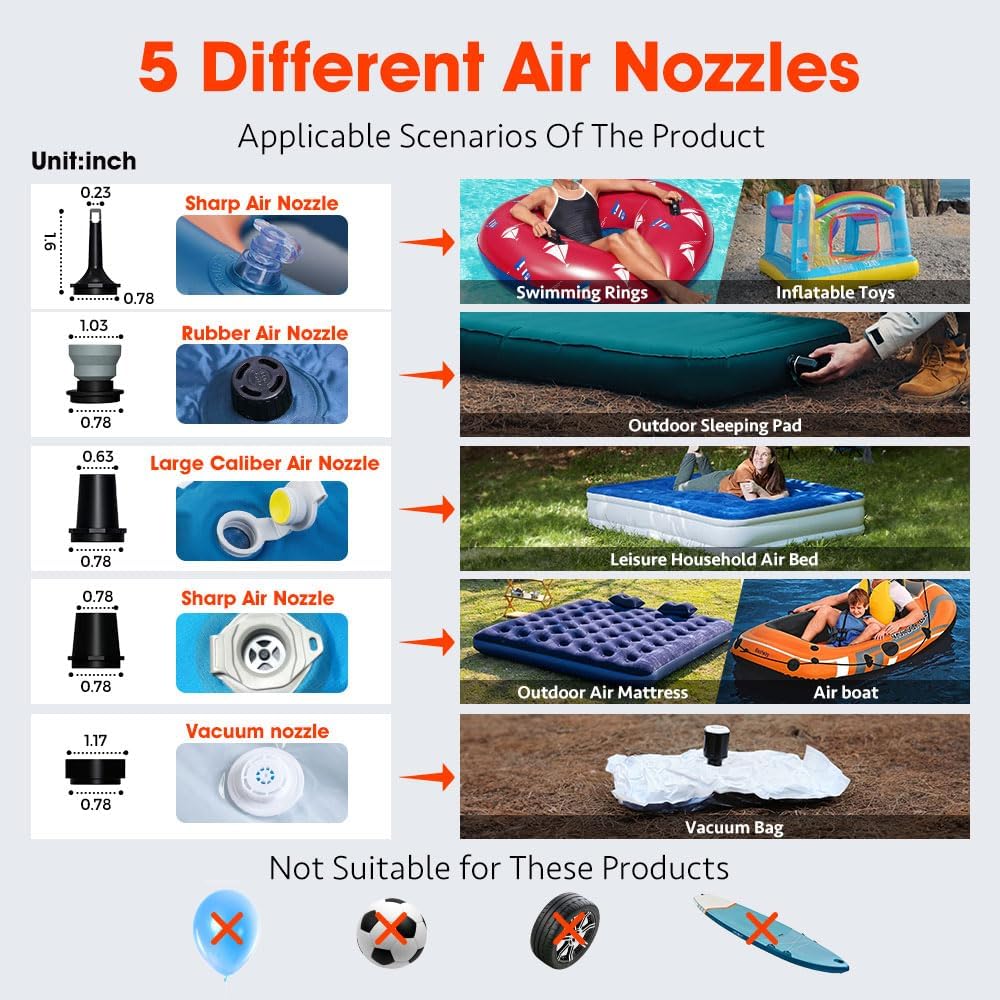

Image: Various nozzles included with the GIGA Pump 4 for different inflation/deflation needs.

Иштөө нускамалары

1. Инфляция

1. Attach the appropriate nozzle to the inflation port (top of the pump).
2. Үтүктү үйлөтүлүүчү буюмдун клапанына бекем киргизиңиз.
3. Double-click the power button to start inflation. The pump has two gear pressure modes.
4. Monitor the inflation process and double-click the power button again to stop once the desired firmness is reached.

Image: The GIGA Pump 4 in use, inflating an air mattress.

2. Deflation (Vacuum Storage)

1. Attach the appropriate nozzle to the deflation port (bottom of the pump).
2. Insert the nozzle firmly into the valve of the item to be deflated (e.g., a vacuum storage bag).
3. Double-click the power button to start deflation.
4. Allow the pump to extract air until the item is fully deflated. Double-click the power button to stop.

Image: The GIGA Pump 4 in use, deflating a vacuum storage bag.

3. Campчырак

1. Press and hold the light button to turn on the lantern.
2. Press the light button repeatedly to cycle through the 3 brightness levels (40lm, 160lm, 400lm).
3. To turn off the lantern, press and hold the light button again.
4. Utilize the concealed hook or magnetic design to position the lantern as needed.

Image: The GIGA Pump 4's integrated lantern with adjustable brightness levels.

Техникалык тейлөө

• Заряддоо: After receiving the product, charge it initially. For optimal battery life, recharge the air pump every three months to prevent low battery voltage and ensure it remains operational.
• Сактагыч: Store the pump and all accessories in the provided storage pouch in a cool, dry place when not in use.
• Тазалоо: Насостун сыртын жумшак менен сүртүңүз, гamp кездеме. Насосту сууга батырбаңыз.

Проблемаларды чечүү

• Насос күйбөйт: Ensure the device is charged. The low battery indicator will flash red if power is low.
• Insufficient Airflow/Pressure: Check that the correct nozzle is securely attached and fully inserted into the item's valve. Ensure the pump is fully charged.
• Lantern Not Working: Verify the device is charged. Press and hold the light button to activate.

Техникалык шарттар

Кепилдик жана колдоо

From the moment you purchase your Aerogogo GIGA Pump 4, you are entitled to a 5 жылдык сатуудан кийинки тейлөө (for the pump only) for non-human-induced quality issues. We are committed to providing top-notch service and support to every customer.

Кошумча жардам же суроо үчүн, дарегине кайрылыңыз Aerogogo Store on Amazon.
