JOROTO F20PRO Folding Treadmill User Manual

1. Коопсуздук боюнча маанилүү маалымат

Please read this entire manual carefully before assembling or operating the JOROTO F20PRO Folding Treadmill. Retain this manual for future reference. Failure to follow these instructions could result in injury or damage to the product.

• Кандайдыр бир көнүгүү программасын баштоодон мурун ар дайым дарыгер менен кеңешиңиз.
• Иш учурунда балдарды жана үй жаныбарларын чуркоо жолунан алыс кармаңыз.
• Чуркоо жолун тегиз, туруктуу бетке, анын айланасында жетиштүү боштук бар жерге коюңуз (артынан кеминде 2 метр жана эки тарабынан 0.6 метр).
• Ensure the safety key is properly attached before starting the treadmill. In case of emergency, pull the safety key to stop the machine immediately.
• ылайыктуу спорттук бут кийим жана кийим кийүү.
• Do not use the treadmill if it is damaged or malfunctioning.
• Maximum user weight capacity is 130 kg (286 lbs). Do not exceed this limit.
• Unplug the treadmill from the power outlet when not in use, before cleaning, or before performing maintenance.

Image 1.1: The JOROTO F20PRO Treadmill in use, demonstrating its suitability for home fitness.

2. Продукт бүтүп калдыview

The JOROTO F20PRO is a compact and powerful folding treadmill designed for home use, offering a range of features to support your fitness journey.

Негизги өзгөчөлүктөрү:

• Кубаттуу 2.5 аттын күчүндөгү мотор: Provides consistent power for walking, jogging, and running with a low noise level (below 45 dB).
• Жөнгө салынуучу ылдамдык: Ranges from 1 to 12 KM/H (0.6 to 7.5 MPH) to suit various fitness levels and workout intensities.
• 8% кол менен жантайыңкылык: Manually adjustable incline to intensify workouts and increase calorie burn.
• Кең чуркоо куру: A 40 cm (16-inch) wide running surface with a 6-layer anti-slip belt for stable and comfortable exercise.
• Интеграцияланган туткалары: Provides essential stability and safety during use.
• LED Display with Bluetooth: Clearly shows time, speed, distance, and calories. Connects to fitness apps via Bluetooth for detailed workout analysis.
• Бүктөлүүчү Дизайн: Vertical folding mechanism and integrated transport wheels for easy storage and repositioning.
• Мыкты курулуш: Reinforced running deck and integrated cushioning system support users up to 130 kg (286 lbs).

Image 2.1: The powerful and quiet 2.5 HP motor, designed for consistent performance.

Image 2.2: The 8% manual incline feature, enhancing calorie burn and muscle engagement.

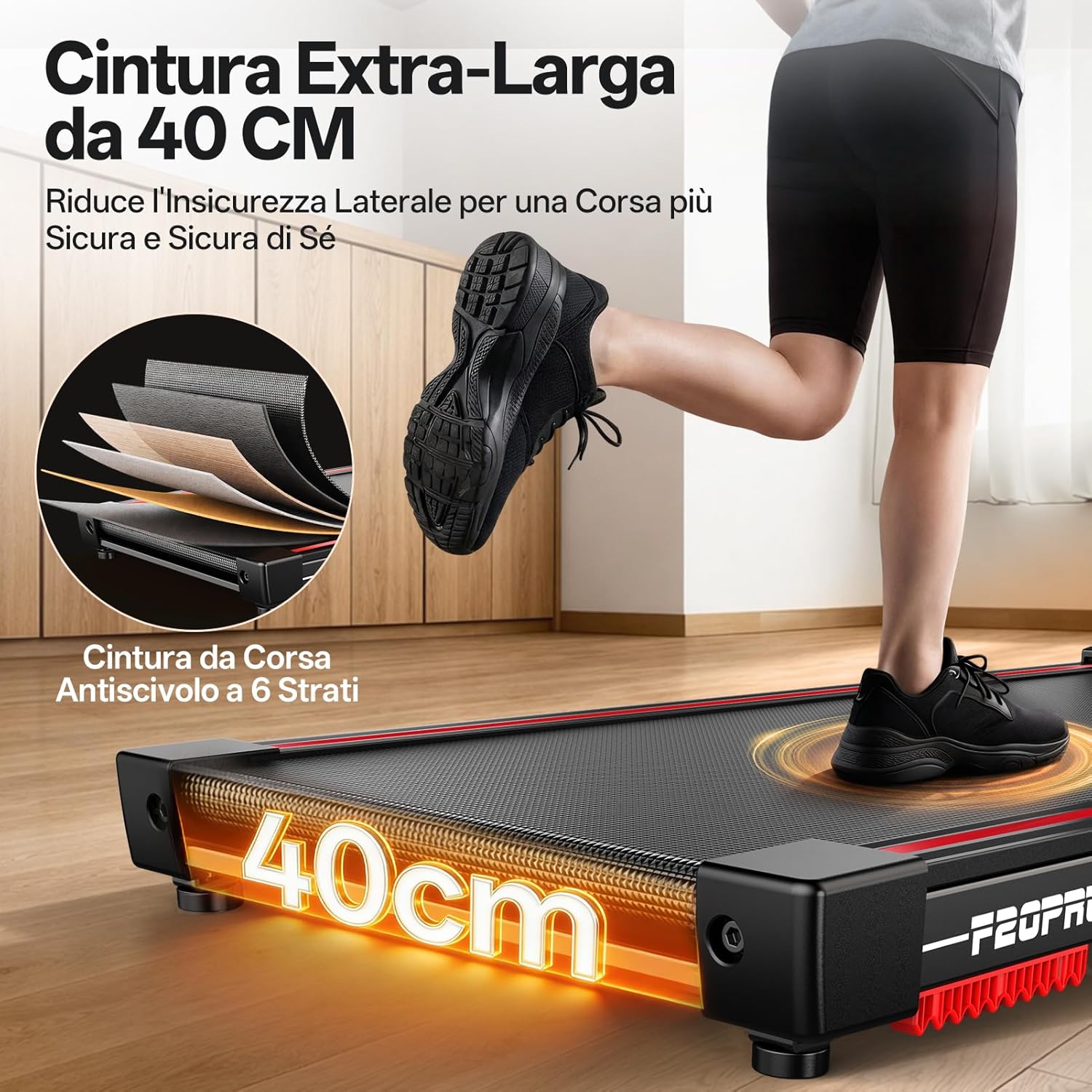

Image 2.3: The 40 cm extra-wide, 6-layer anti-slip running belt for enhanced safety and comfort.

Image 2.4: The robust construction supports users up to 130 kg (286 lbs).

3. Орнотуу жана чогултуу

The JOROTO F20PRO treadmill is designed for quick and straightforward assembly. Please follow these steps carefully.

1. Пакеттен чыгаруу: Carefully remove all components from the packaging. Ensure all parts listed in the packing list (refer to the separate packing list document) are present.
2. Жайгашкан жери: Choose a suitable location for your treadmill. Ensure it is on a level surface and has sufficient clear space around it for safe operation and folding.
3. Ачылууда:
   • Gently lift the running deck from its folded position.
   • Lower the running deck slowly until it locks into the flat operating position. Ensure it is securely locked before use.
4. Handlebar Assembly (if required): Attach the handlebars to the main frame using the provided screws and tools. Ensure they are tightened securely.
5. Кубат туташуу: Электр шнурын жерге туташтырылган электр розеткасына сайыңыз.
6. Коопсуздук ачкычы: Attach the safety key to the console and clip the other end to your clothing. The treadmill will not operate without the safety key in place.

Image 3.1: The JOROTO F20PRO treadmill demonstrating its compact folding design for easy storage.

4. Иштөө нускамалары

Машыгууну баштоодон мурун башкаруу панели жана функциялары менен таанышып алыңыз.

4.1 Башкаруу панелинин үстүнөview

The LED display shows essential workout metrics. Buttons allow for speed adjustment, start/stop, and mode selection.

Image 4.1: The LED display and control panel, featuring Bluetooth connectivity for fitness apps.

4.2 Машыгууну баштоо

1. Ensure the treadmill is plugged in and the safety key is correctly placed on the console and clipped to your clothing.
2. басыңыз START button. The belt will begin to move at a low speed (e.g., 1 KM/H).
3. колдонуу менен ылдамдыкты акырындык менен жогорулатыңыз SPEED + button to your desired pace.
4. To adjust the incline, manually lift the rear of the treadmill and adjust the support mechanism to the desired 8% incline level. Ensure it is securely locked before continuing your workout.

4.3 Ылдамдыкты жана жантайыңкылыкты жөндөө

• Ылдамдыгы: колдонуу SPEED + жана ЫЛДАМ - buttons on the console to increase or decrease the running belt speed. The speed range is 1-12 KM/H.
• Жантайма: The incline is manually adjustable up to 8%. To change the incline, stop the treadmill, carefully lift the rear of the running deck, and reposition the incline support to the desired level. Ensure it is stable before resuming your workout.

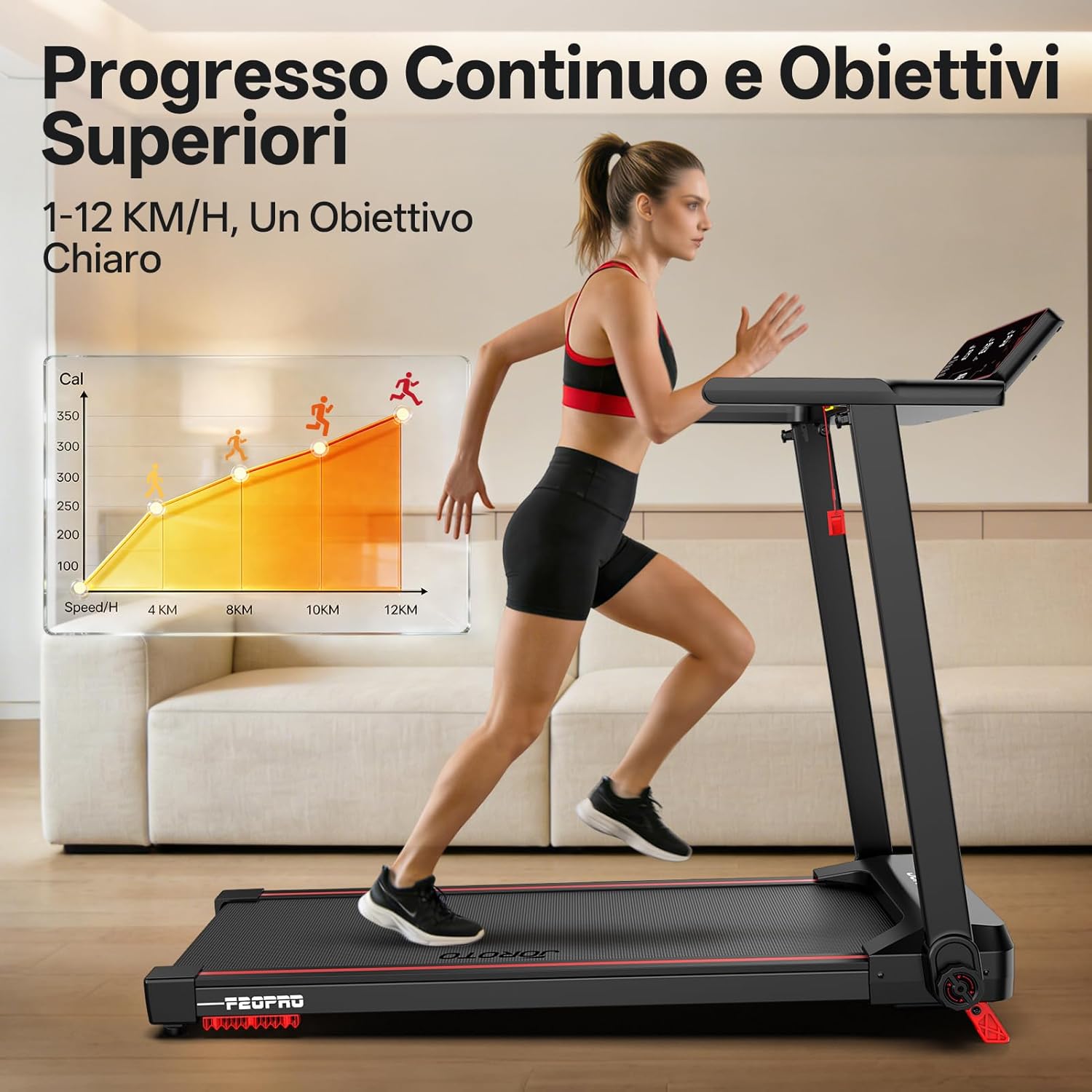

Image 4.2: Visual representation of speed progression from 1 KM/H to 12 KM/H.

4.4 Машыгууну токтотуу

• басыңыз ТОКТОТ чуркоо жолундагы курду акырындык менен жайлатуу жана токтотуу баскычын басыңыз.
• Alternatively, pull the safety key from the console for an immediate emergency stop.

4.5 Bluetooth and App Connectivity

The JOROTO F20PRO treadmill can connect to compatible fitness applications via Bluetooth for enhanced tracking and workout programs.

1. Download the recommended fitness app (e.g., Kinomap, FTMS compatible apps) from your device's app store.
2. Смартфонуңузда же планшетиңизде Bluetooth иштетилгенин текшериңиз.
3. Open the fitness app and follow the in-app instructions to search for and connect to your JOROTO F20PRO treadmill.
4. Once connected, the app will display real-time workout data and allow control over certain treadmill functions.

5. Техникалык тейлөө

Regular maintenance ensures the longevity and optimal performance of your JOROTO F20PRO treadmill.

• Тазалоо:
  • Ар бир колдонгондон кийин, консольду жана башка беттерди спрей менен сүртүңүзamp терди жана чаңды тазалоо үчүн кездеме. Абразивдүү тазалагычтардан алыс болуңуз.
  • Чаңдын топтолушу мотордун иштешине таасирин тийгизбеш үчүн чуркоо жолунун астын мезгил-мезгили менен вакуумдап туруңуз.
• Белди майлоо: The running belt requires periodic lubrication to reduce friction and extend its lifespan. Refer to the separate lubrication guide or contact customer support for specific instructions and recommended lubricant.
• Кур чыңдоо жана тегиздөө: Over time, the running belt may require adjustment for tension or alignment. If the belt slips or drifts to one side, refer to the troubleshooting section or contact customer support for guidance.
• Электр шнурунун текшерүүсү: Regularly inspect the power cord for any damage. If damaged, discontinue use and contact customer support for replacement.

6. Кыйынчылыктарды

If you encounter any issues with your JOROTO F20PRO treadmill, refer to the common problems and solutions below. If the problem persists, contact customer support.

7. Техникалык шарттар

8. Кепилдик жана колдоо

JOROTO is committed to providing reliable products and excellent customer service.

• Кепилдик: The JOROTO F20PRO treadmill comes with a comprehensive 2-year warranty on main components. This warranty covers defects in materials and workmanship under normal use.
• Кардарларды колдоо: For any questions, technical assistance, warranty claims, or to order replacement parts, please contact JOROTO customer support. Our dedicated team is available to provide reliable assistance.
• Байланыш маалыматы: Please refer to the contact details provided on the JOROTO official webсайт же сатып алуу документтери.
