1. Киришүү
This manual provides essential information for setting up, operating, and maintaining your BOSGAME E5 Multi-Functional Mini PC. The BOSGAME E5 is equipped with a Ryzen 3 5300U 4-core 8-thread processor, 16GB DDR4 RAM, and a 1TB PCIe 3.0x4 SSD, offering robust performance for various tasks. It supports triple display output via HDMI, DisplayPort, and USB-C, and features Wi-Fi 5 and Bluetooth 5.0 connectivity.
Image 1.1: The BOSGAME E5 Mini PC, a compact and powerful desktop computer.
2. Кутуда эмне бар
Орнотууну улантуудан мурун пакетте бардык элементтер бар экенин текшериңиз.
- BOSGAME E5 Mini PC x1
- Колдонуучунун колдонмосу x1
- HDMI 2.0 кабели x1
- 19V 3.42A Power адаптер x1
- VESA Mount & Screws x1
Image 2.1: Contents of the BOSGAME E5 Mini PC package, including the device, cables, power adapter, and VESA mount.
3. Орнотуу нускамалары
3.1 Перифериялык түзүлүштөрдү туташтыруу
- Дисплейди туташтыруу: Use the provided HDMI 2.0 cable to connect your monitor to the HDMI port on the Mini PC. Alternatively, use a DisplayPort or USB-C cable for compatible displays. The Mini PC supports up to three displays simultaneously at 4K@60Hz.
- Баскычтоп менен чычканды туташтыруу: Plug your USB keyboard and mouse into the available USB 3.2 Type-A ports on the front or rear of the Mini PC.
- Тармакка туташуу (милдеттүү эмес): For a wired internet connection, connect an Ethernet cable from your router to one of the 1000Mbps RJ45 LAN ports on the rear. For wireless connectivity, the device supports Wi-Fi 5.
- Туташуу кубаты: Plug the 19V 3.42A power adapter into the DC-in port on the rear of the Mini PC, then plug the adapter into a power outlet.
3.2 Биринчи жүктөө жана операциялык системаны орнотуу
- Күйгүзүү: Mini PCтин алдыңкы бетинде жайгашкан кубат баскычын басыңыз. Кубат индикатору күйөт.
- Баштапкы орнотуу: Follow the on-screen instructions to complete the Windows 11 Pro operating system setup. This includes selecting your language, region, and creating a user account.
- Тармак конфигурациясы: During the OS setup, you will be prompted to connect to a network. If using Wi-Fi, select your network and enter the password. If using a wired connection, it should connect automatically.
Сүрөт 3.1: Бүттүview of the BOSGAME E5 Mini PC's front and rear ports, highlighting various connectivity options.
4. Иштөө нускамалары
4.1 Күйгүзүү/өчүрүү
- Күйгүзүү: Алдыңкы панелдеги кубат баскычын басыңыз.
- Өчүрүү: In Windows, click the Start button, then Power, and select 'Shut down'.
- Кайра баштоо: In Windows, click the Start button, then Power, and select 'Restart'.
4.2 Дисплейдин конфигурациясы
The BOSGAME E5 supports up to three independent displays at 4K@60Hz. Connect your monitors using the HDMI 2.0, DisplayPort, and USB-C outputs. Once connected, Windows will automatically detect the displays. You can configure display settings (resolution, orientation, extended/duplicated desktop) via the Windows Display Settings.
Image 4.1: Illustration of the BOSGAME E5 Mini PC supporting a triple display setup for enhanced productivity.
4.3 Network and Wireless Connectivity
- Зымдуу LAN: Utilize the dual 1000Mbps RJ45 LAN ports for high-speed, stable wired network connections.
- Wi-Fi 5: Connect to wireless networks using the integrated Wi-Fi 5 module. Access Wi-Fi settings through the Windows taskbar network icon.
- Bluetooth 5.0: Pair Bluetooth-enabled devices such as keyboards, mice, headphones, or speakers via the integrated Bluetooth 5.0. Manage Bluetooth devices in Windows Settings.
Image 4.2: Visual representation of the BOSGAME E5 Mini PC's wireless capabilities, including Wi-Fi 5 and Bluetooth 5.0 for various peripherals.
5. Техникалык тейлөө
5.1 Memory and Storage Upgrade
The BOSGAME E5 comes with 16GB DDR4 RAM and a 1TB M.2 2280 PCIe SSD. The storage is expandable up to 4TB. For detailed instructions on upgrading RAM or SSD, please refer to the official BOSGAME support resources or consult a qualified technician.

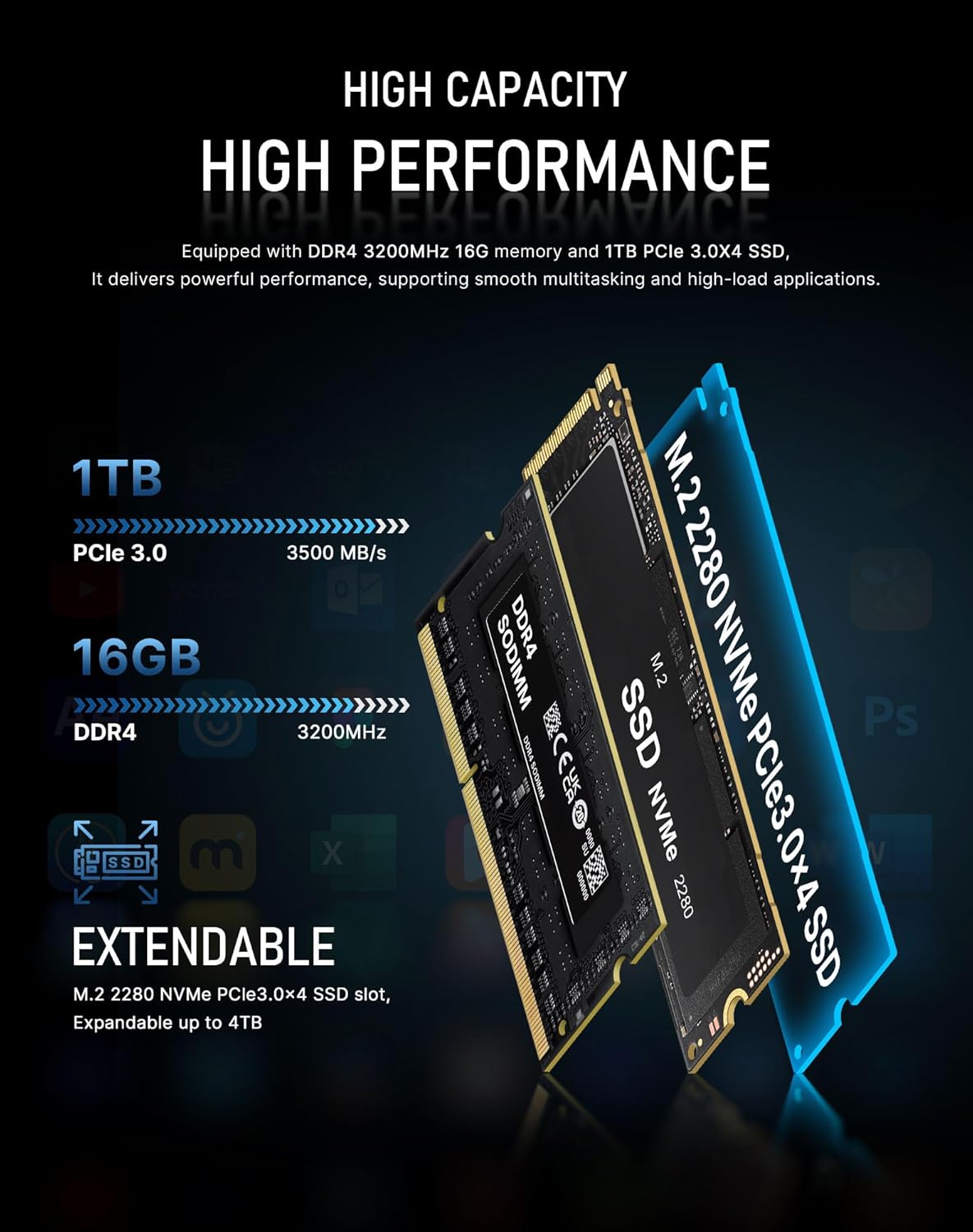

Image 5.1: Illustration of the internal memory (DDR4) and M.2 NVMe PCIe SSD components of the BOSGAME E5 Mini PC.
5.2 Internal Structure Overview
Understanding the internal layout can assist with maintenance and upgrades. The Mini PC features a plastic base, SSD heatsink, SYS Fan, SO-DIMM DDR4 3200MHz slots, motherboard, CPU, heat conducting phase change material, M.2 2280 NVMe PCIe3.0 slot, heat sink with double heatpipe and single air vent, CPU Smart Fan, and a plastic body.
Сүрөт 5.2: Жарылып кеткен view diagram illustrating the internal components and structure of the BOSGAME E5 Mini PC.
6. Кыйынчылыктарды
- Дисплей жок: Ensure the monitor is powered on and correctly connected to the Mini PC via HDMI, DisplayPort, or USB-C. Try a different cable or display port.
- Кубат жок: Verify the power adapter is securely connected to both the Mini PC and a working power outlet. Check if the power indicator light is on.
- Интернет байланышы жок: For wired connections, check the Ethernet cable and router status. For Wi-Fi, ensure the correct network is selected and the password is entered accurately. Restart the Mini PC and your router.
- Жай аткаруу: Керексиз тиркемелерди жабыңыз. Фондук жаңыртууларды текшериңиз. жетиштүү бош орун камсыз кылуу.
- Перифериялык түзмөк аныкталган жок: Try connecting the peripheral to a different USB port. Ensure drivers are up to date.
7. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|

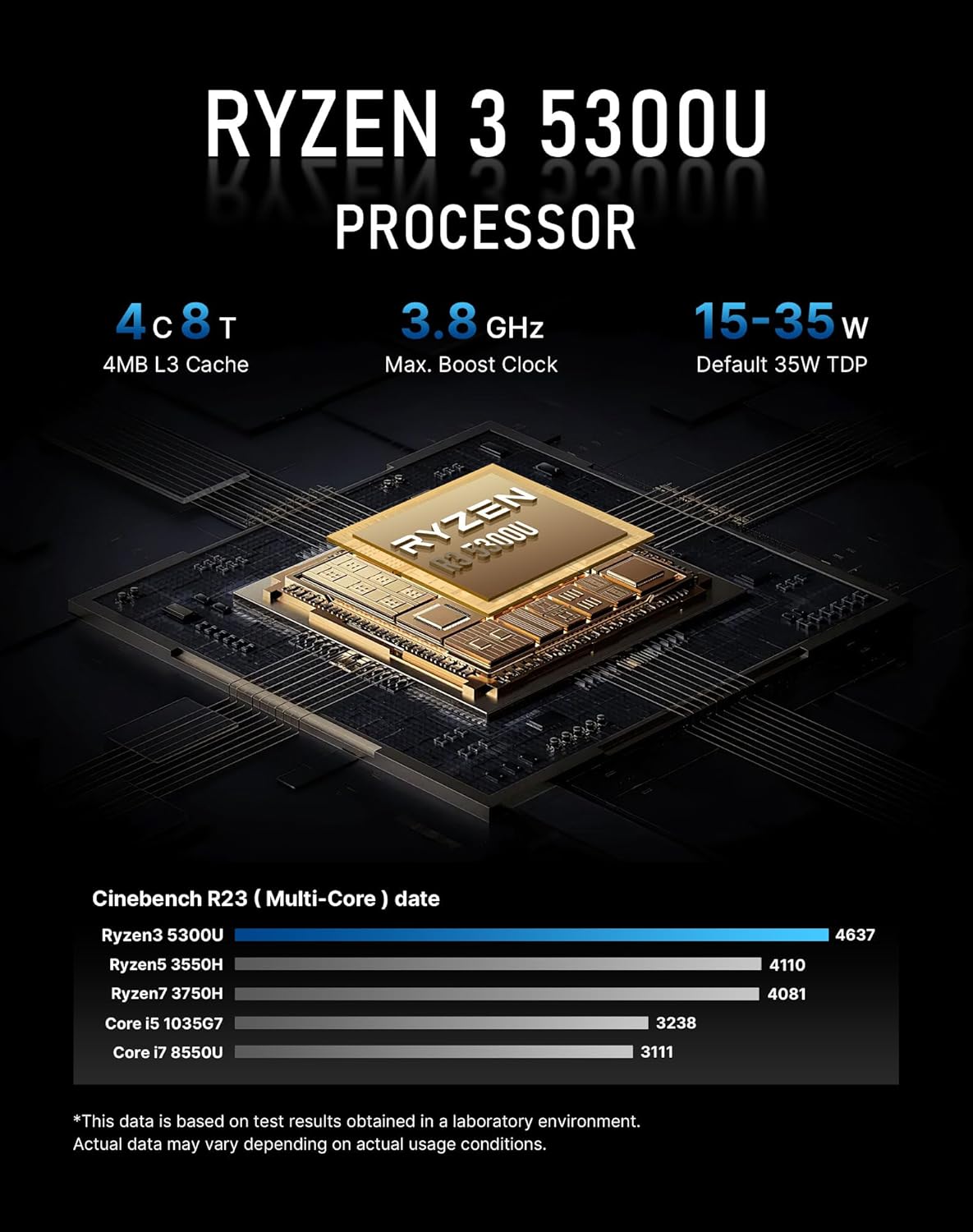

| Процессор | AMD Ryzen 3 5300U (4-core, 8-thread, up to 3.8GHz) |
| Графика | Radeon Graphics (Max Graphics Frequency 1500MHz) |
| RAM | 16 ГБ DDR4 |
| Сактагыч | 1TB M.2 2280 PCIe 3.0x4 SSD (Expandable up to 4TB) |
| Display Output | 1x HDMI 2.0, 1x DisplayPort, 1x USB-C (Triple Display 4K@60Hz) |
| USB порттору | 3x USB 3.2 Type-A, 1x USB 2.0 Type-A, 1x USB-C |
| Network | 2x 1000Mbps RJ45 LAN, Wi-Fi 5 |
| Bluetooth | Bluetooth 5.0 |
| Аудио | 3.5mm Combo Jack (CTIA specifications) |
| Операция системасы | Windows 11 Pro |
| Өлчөмдөр | 6.54 x 6.38 x 4.21 дюйм (Пакет) |
| Салмагы | 2.42 фунт |
8. Кепилдик жана колдоо
BOSGAME provides free and reliable lifetime after-sales service for the E5 Mini PC. All products hold FCC, ROHS, and CE certifications. Additionally, a 1-year professional factory support and 24/7 online customer service are available to assist with any inquiries or issues.
For further assistance, please visit the official BOSGAME webсайтка же кардарларды колдоо менен түздөн-түз байланышыңыз.
