Braun Series 9 PRO+ Electric Razor 9617s Instruction Manual

1. Продукт бүтүп калдыview

The Braun Series 9 PRO+ Electric Shaver is engineered for men seeking exceptional closeness and superior skin protection. This advanced electric shaver features Ultra Thin Precision Blades and 5+1 Technology, which seamlessly integrates various cutting elements to manage even the toughest beards. The Pro SensoAdapt system intelligently adjusts shaving power based on beard density, ensuring a personalized and efficient experience. Designed for versatility, it is 100% waterproof for both wet and dry use, and boasts a long-lasting Li-ion battery.

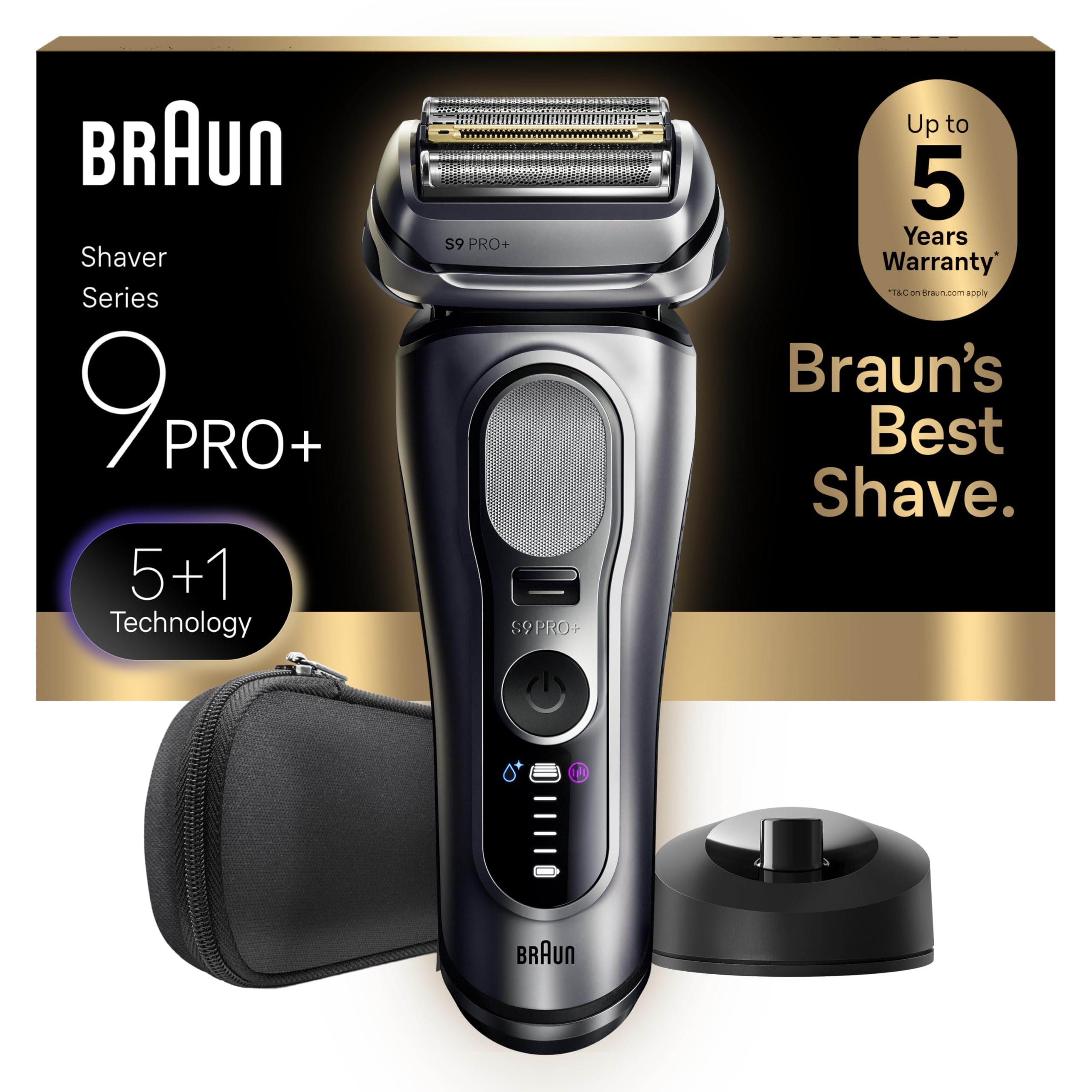

Image 1: The Braun Series 9 PRO+ Electric Razor, a premium foil shaver designed for men.

2. Негизги өзгөчөлүктөрү

• 5+1 Technology: Features Ultra Thin Precision Blades, Direct&Cut Blade, ProTrimmer, OptiFoil, SkinGuard, and titanium-coated ProLift Blade for a comprehensive shave.
• Exceptional Skin Protection: Designed to prevent pulling or lifting hair before cutting, ensuring a comfortable shave with minimal irritation.
• Pro SensoAdapt System: High-precision sensors analyze beard density 300 times per second, automatically adjusting shaving power for optimal efficiency.
• Integrated ProTrimmer: Provides pinpoint precision for shaping beards, sideburns, and hard-to-reach areas.
• 100% суу өткөрбөйт: Suitable for both wet and dry shaving, allowing for use with foam, gel, or in the shower.
• Узак мөөнөттүү батарея: Equipped with a Li-ion battery providing up to 60 minutes of cordless shaving on a full charge, with a 5-minute quick charge option.
• Германияда жасалган: Crafted from high-quality materials with attention to detail for durability and performance.

Image 2: Visual representation of the Braun Series 9 PRO+ key technologies and features, including 5+1 shaving elements, 40° adaptive head, Pro SensoAdapt, 100% waterproof design, 60-minute run time, and 5-minute quick charge.

Сүрөт 3: деталдуу view of the Ultra Thin Precision Blades and other cutting elements of the Braun Series 9 PRO+ shaver head.

3. Кутуда эмне бар

Your Braun Series 9 PRO+ package includes the following items:

• Braun Series 9 PRO+ Electric Shaver
• SmartCare Center (Charging & Cleaning Station)
• Smart Plug (Power Adapter)
• Travel Case (PowerCase)
• Тазалоочу щетка
• Cleaning Cartridge (for SmartCare Center)
• Extra Shaver Head (to restore 100% performance)

Image 4: All components included in the Braun Series 9 PRO+ package: the shaver, travel case, charging stand, smart plug, and cleaning brush.

4. Орнотуу

1. Баштапкы төлөм: Before first use, fully charge your shaver. Connect the Smart Plug to the shaver or the SmartCare Center, and then plug it into a power outlet. A full charge takes approximately 60 minutes and provides up to 60 minutes of shaving time. A 5-minute quick charge is sufficient for one shave.
2. SmartCare борборун орнотуу: Open the SmartCare Center by pressing the button on the side. Insert a fresh cleaning cartridge into the base until it clicks into place. Close the SmartCare Center.

5. Иштөө нускамалары

5.1 Сакал алуу

For optimal results, ensure your skin is dry before shaving. For a wet shave, apply shaving foam or gel. Hold the shaver at a right angle (90°) to your skin and shave against the direction of hair growth. Apply gentle, even pressure.

Image 5: A man demonstrating the use of the Braun Series 9 PRO+ electric razor on his face, highlighting its ergonomic design and flexible head for contour adaptation.

5.2 Precision Trimmer колдонуу

Slide the precision trimmer upwards from the back of the shaver. Use it to trim sideburns, mustaches, or to define beard lines with precision.

5.3 Locking the Shaver Head

The shaver head can be locked in various positions to provide more control in difficult areas. Use the slider on the side of the shaver to lock the head at your desired angle.

Safety Note: Avoid using the shaver while it is plugged into a power outlet to prevent electrical hazards.

6. Техникалык тейлөө жана тазалоо

6.1 Кол менен тазалоо

After each shave, detach the shaver head by pressing the release buttons on the sides. Tap out any loose hair. Use the provided cleaning brush to remove hair from the shaver head and the inner parts of the shaver. The shaver head can also be rinsed under warm running water.

6.2 SmartCare Center Cleaning

For thorough cleaning, lubrication, and charging, place the shaver head-down into the SmartCare Center. Press the power button on the SmartCare Center to initiate a cleaning cycle. The system will automatically clean, dry, lubricate, and charge your shaver.

6.3 Replacing Cleaning Cartridge

Replace the cleaning cartridge when the indicator light on the SmartCare Center signals it's empty, or approximately every 3 weeks with daily use. Open the SmartCare Center, remove the old cartridge, and insert a new one.

6.4 Replacing Shaver Head

For optimal performance, replace the shaver head (cassette) approximately every 18 months. An extra shaver head is included in your travel shaver kit to restore 100% performance.

7. Кыйынчылыктарды

• Устара күйгүзбөй жатат: Ensure the shaver is fully charged. If using the SmartCare Center, check if it's plugged in correctly.
• Төмөндөтүлгөн кыруу натыйжалуулугу: Clean the shaver head thoroughly. If performance does not improve, consider replacing the shaver head.
• Сакал алгандан кийин кыжырдануу: Ensure you are shaving against the grain and applying gentle pressure. For sensitive skin, try wet shaving with foam or gel.
• SmartCare Center not cleaning: Check if the cleaning cartridge is properly inserted and contains sufficient cleaning fluid. Ensure the SmartCare Center is plugged in.

8. Техникалык шарттар

9. Кепилдик жана колдоо

The Braun Series 9 PRO+ Electric Shaver comes with up to a 5-year warranty. For full terms and conditions, please refer to the official Braun website. For additional support, troubleshooting, or to purchase replacement parts, visit the Braun customer service portal or contact their support line.

Сүрөт 6: Алдыңкы view of the Braun Series 9 PRO+ Electric Shaver packaging, highlighting key features and branding.

Сүрөт 7: Детальдуу view of the Braun Series 9 PRO+ Electric Shaver packaging, showcasing additional features like 40,000 cutting actions/min and 40° contour adaptation.
