1. Продукт бүтүп калдыview
The Vivi F26FUL is an electric fat tire bike designed for adults, featuring a powerful motor and a long-lasting removable battery. It is built for various terrains, offering a versatile riding experience.

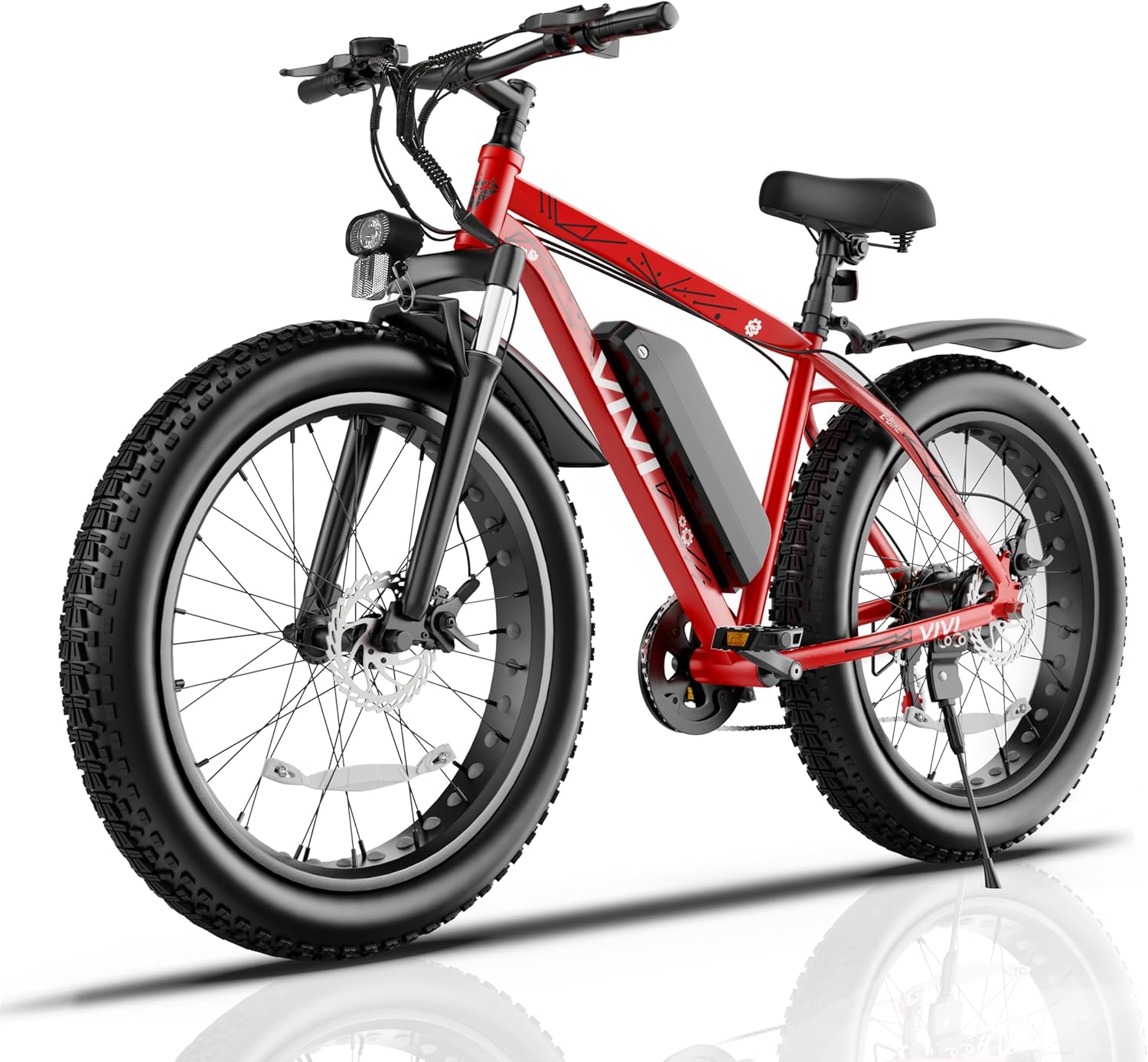

Image 1.1: The Vivi F26FUL Electric Bike, showcasing its robust design and fat tires.
2. Коопсуздук маалыматы
Your safety is paramount. Please read this manual thoroughly before operating the Vivi F26FUL Electric Bike. Always wear a helmet and appropriate safety gear. Adhere to all local traffic laws and regulations.
2.1. UL2849 Certification
The Vivi F26FUL Electric Bike is SGS certified to UL2849 (Certificate Number: SGSNA/24/SZ/00108), ensuring compliance with safety standards for electrical systems of e-bikes. For more details, refer to the official certificate:
Image 2.1: SGS UL2849 Certificate of Compliance for Vivi Electric Bikes, highlighting safety and quality assurance.
3. Чогултуу жана орнотуу
This section provides step-by-step instructions for assembling your Vivi F26FUL Electric Bike. For a visual guide, please refer to the installation video below.
Video 3.1: Detailed installation guide for the Vivi F26F Electric Bike, demonstrating assembly steps.
3.1. Рулду орнотуу
- Loosen the bolts on the handlebar stem using the provided Allen wrench.
- Position the handlebar into the stem, ensuring it is centered and aligned.
- Болтторду бекем тартыңыз.
3.2. Алдыңкы дөңгөлөктү орнотуу
- Carefully align the front wheel with the fork dropouts.
- Insert the axle into the dropouts.
- Secure the axle nuts using a wrench. Ensure the wheel spins freely and is centered.
3.3. Headlight and Mudguard Installation
- Attach the headlight to the designated mounting point on the front fork.
- Secure the front mudguard to the fork using the provided screws.
3.4. Saddle Assembly and Installation
- Attach the saddle to the seat post using the provided tools.
- Insert the assembled seat post into the bike's seat tube.
- Adjust the saddle height to your preference and secure it with the quick-release lever or bolt.
3.5. Rear Fender Installation
- Attach the rear fender to the seat post or frame using the provided mounting hardware.
- Adjust its position to ensure adequate clearance over the rear wheel.
3.6. Батареяны орнотуу
- Slide the 48V 13Ah removable battery into its designated slot on the bike frame.
- Ensure it clicks securely into place and lock it with the key.
3.7. Foot Pedal Installation
- Сол (L) жана оң (R) педалдарын аныктаңыз.
- Thread the pedals into the crank arms (left pedal counter-clockwise, right pedal clockwise).
- Tighten them firmly with a wrench.
4. Иштөө нускамалары
Familiarize yourself with the controls and functions of your Vivi F26FUL Electric Bike for an optimal riding experience.
4.1. Күйгүзүү / Өчүрүү
To power on the bike, press and hold the power button on the LCD display. Repeat to power off.
4.2. LCD Display Functions
The LCD display provides essential riding information, including speed, battery level, odometer, and pedal assist level. You can switch between miles per hour (MPH) and kilometers per hour (KM/H) by pressing the '+' and '-' buttons simultaneously when the display is on.
Video 4.1: Demonstration of the LCD display, showing speed readings and unit switching.
Image 4.2: Close-up of the LCD display, indicating battery, speed level, riding speed, and mileage.
4.3. Pedal Assist Levels
The bike offers multiple pedal assist levels. Use the '+' and '-' buttons on the display to adjust the level of motor assistance while pedaling. Higher levels provide more assistance.
4.4. Throttle Usage
The throttle provides power on demand without pedaling. Gently twist the throttle on the handlebar to engage the motor. Release the throttle to disengage.
4.5. Тиштүү дөңгөлөктү которуу
The Vivi F26FUL is equipped with a 7-speed Shimano gear system. Use the shifter on the handlebar to change gears according to terrain and desired speed. Shift smoothly to avoid strain on the drivetrain.
Сүрөт 4.3: Детальдуу view of the Shimano 7-speed gear system and shifter.
4.6. Тормоздоо
The bike features dual disc brakes for reliable stopping power. Apply both brake levers evenly for controlled deceleration. Avoid sudden, hard braking, especially at high speeds.
5. Техникалык тейлөө
Үзгүлтүксүз техникалык тейлөө сиздин электр велосипедиңиздин узак мөөнөттүү жана коопсуз иштешин камсыздайт.
5.1. Батареяга кам көрүү
- Charge the 48V 13Ah Lithium-Ion battery regularly, especially after each ride.
- Батареяны толугу менен түгөтүп жибербеңиз.
- Батареяны колдонбогондо салкын, кургак жерде сактаңыз.
- The battery is IP65 waterproof, but avoid submerging it.
Image 5.1: The 48V 13Ah Lithium-Ion battery, highlighting its removable design and IP65 waterproof rating.
5.2. Шина басымы
Check tire pressure before each ride. The 26" x 4.0" fat tires require specific pressure for optimal performance and comfort on different terrains. Refer to the tire sidewall for recommended pressure ranges.
Image 5.2: Detail of the 4-inch wide fat tire, suitable for various terrains.
5.3. Тормозду текшерүү
Regularly inspect the dual disc brakes for wear and proper function. Ensure brake pads are not excessively worn and brake levers respond firmly.
5.4. Чынжырды майлоо
Keep the chain clean and lubricated to ensure smooth gear changes and prevent premature wear.
5.5. Жалпы тазалоо
Велосипедиңизди жарнама менен үзгүлтүксүз тазалаңызamp кездеме. Жогорку басымдагы шайбаларды түздөн-түз электрдик тетиктерге колдонуудан алыс болуңуз.
6. Кыйынчылыктарды
This section addresses common issues you might encounter with your electric bike.
- Велосипед күйгүзүлбөйт: Check if the battery is fully charged and properly seated. Ensure the key is in the 'ON' position if applicable.
- Мотор жардам бербейт: Verify the pedal assist level on the LCD display. Ensure all electrical connections are secure.
- Тормоздордун чыңылдашы: This can be normal for new disc brakes. If persistent, check for contamination on the rotors or worn pads.
- адаттан тыш үндөр: Inspect the chain, gears, and wheels for any obstructions or loose components.
Бул жерде каралбаган маселелер боюнча кардарларды колдоо бөлүмүнө кайрылыңыз.
7. Техникалык шарттар
Detailed technical specifications for the Vivi F26FUL Electric Bike.
| Өзгөчөлүк | Спецификация |
|---|---|
| Модель аты | F26FUL |
| Велосипед түрү | Mountain Bike |
| Жаш аралыгы | бойго жеткен |
| Бренд | Vivi |
| Мотор | 500W Rated (1000W Peak) |
| Эң жогорку ылдамдык | Up to 25 Mph |
| Батарея | 48V 13Ah Removable Lithium-Ion (624 Watt Hours) |
| Диапазон | Up to 60 Miles (Pedal Assist) |
| Wheel Size | 26 дюйм |
| Шиналар | 26" x 4.0" Fat Shinas |
| Frame Material | Алюминий |
| Суспензия түрү | Front (Carbon Steel Shock-Absorbing Fork) |
| Тормоз стили | Кош диск тормоздору |
| Ылдамдыктын саны | 7 (Shimano Gear System) |
| Өзгөчө өзгөчөлүк | LCD-дисплей |
| Камтылган компоненттер | Charger, Electric bike, Lithium-Ion Battery, Tool, User's Guide |
| Ассамблея талап кылынат | Ооба |
| Сунушталган колдонуучунун бийиктиги | 5'5"-6'5" |
| Load Capacity Max | 300 LBS |
| Велосипед Салмагы | 74 LBS |
Image 7.1: Diagram illustrating key dimensions and weight specifications of the Vivi F26FUL Electric Bike.
8. Кепилдик жана колдоо
8.1. Кепилдик маалыматы
The Vivi F26FUL Electric Bike comes with a 1 жылдык Чектелген Кепилдик. Кепилдик дооматтары үчүн сатып алганыңыздын далилин сактап коюңуз. Кепилдик нормалдуу колдонуу шарттарында өндүрүштүк кемчиликтерди камтыйт.
8.2. Кардарларды колдоо кызматы
For any questions, concerns, or technical assistance, please contact Vivi customer service:
- Телефон: +1 888 639 8191
- Иш убактысы: 9:00 AM - 6:00 PM EST (Monday-Friday)
Image 8.1: Vivi customer service details, including phone number and operating hours.
