1. Киришүү
Thank you for choosing the Klarstein Velaire 80cm Induction Hob with Integrated Extractor. This appliance combines a high-performance induction cooktop with an efficient extractor hood, designed to enhance your kitchen with modern functionality and elegant aesthetics. This manual provides essential information for the safe installation, operation, and maintenance of your new appliance. Please read it thoroughly before use and keep it for future reference.
Image: The Klarstein Velaire Induction Hob with Integrated Extractor in a modern kitchen, showcasing анын кооз дизайны.
2. Коопсуздук нускамалары
Жалпы коопсуздук:
- Шайманды колдонуудан мурун бардык нускамаларды окуп чыгыңыз.
- Жабдуунун квалификациялуу техник тарабынан туура орнотулганын текшериңиз.
- Эгер шайман бузулса, аны иштетпеңиз.
- Балдарды шайманды иштетип жатканда жана ал муздаганда алыс кармаңыз.
- Тез күйүүчү материалдарды плитанын жанында сактабаңыз.
- Always use appropriate cookware for induction hobs.
- Эч качан бышыруу процессин кароосуз калтырбаңыз, өзгөчө жогорку жылуулук параметрлерин колдонгондо.
Электр коопсуздугу:
- The appliance must be connected to a properly grounded electrical outlet.
- Узарткычтарды же адаптерлерди колдонбоңуз.
- Тазалоо же техникалык тейлөө иштерин жүргүзүүдөн мурун электр кубатынан ажыратыңыз.
Extractor Safety:
- Ensure adequate ventilation in the room when the extractor is in use.
- Өрт коркунучун алдын алуу үчүн май чыпкаларын дайыма тазалап туруңуз.
- Сорттоочу капоттун астында күйбөңүз.
3. Продукт бүтүп калдыview
3.1. Компоненттери жана өзгөчөлүктөрү
The Klarstein Velaire induction hob features a sleek design with an integrated extractor. Key components include:
- Индукциялык бышыруу зоналары: Four high-power zones for efficient cooking.
- Integrated Extractor: Centrally located for effective fume and odor removal.
- Сенсордук башкаруу панели: Intuitive slider controls for precise adjustments.
- Калган жылуулук көрсөткүчтөрү: Safety feature to show hot zones after use.
- Балдар кулпусу: Кокусунан иштөөнүн алдын алат.
- Таймер функциясы: Так бышыруу убактысы үчүн.
- Flexible Zone: Ability to combine two zones for larger cookware.
Сүрөт: Жогорку view of the induction hob, illustrating the four cooking zones with individual power ratings (1.8 kW, Boost 2.1 kW) and a flexible zone (3.0 kW, Boost 3.6 kW).

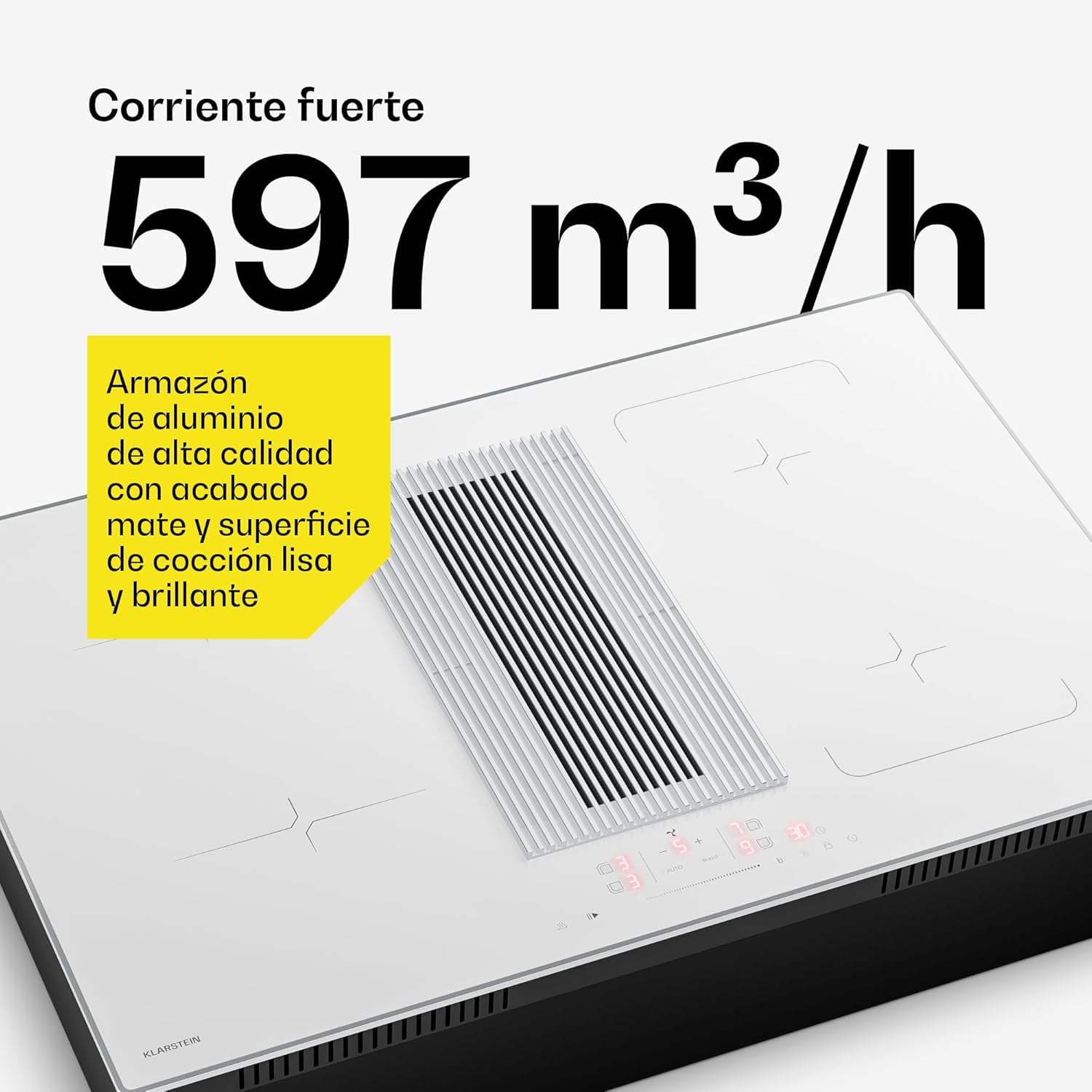

Image: Detail of the hob's surface, highlighting the central extractor grill with a powerful airflow of 597 m³/h and the sleek touch control interface.
4. Орнотуу жана орнотуу
Proper installation is crucial for the safe and efficient operation of your appliance. It is recommended that installation be performed by a qualified professional.
4.1. Өлчөмдөр жана кесүү
The overall dimensions of the appliance are 80 cm (width) x 52 cm (depth) x 22.8 cm (height). Ensure your countertop cut-out and cabinet space accommodate these dimensions, along with the necessary clearance for the extractor ducting.
Image: Technical drawing indicating the product dimensions: 80 cm width, 52 cm depth, and 22.8 cm height, with additional measurements for installation space (49 cm depth, 76 cm width for the base unit).
4.2. Орнотуу параметрлери
The integrated extractor can be configured for two types of operation:
- Air Extraction Mode: Air is drawn through grease filters and expelled outside via ducting.
- Рециркуляция режими: Air is cleaned by grease and active carbon filters, then returned to the kitchen.
Image: Schematic showing two installation methods for the integrated extractor: one for external air extraction and another for internal air recirculation using carbon filters.
4.3. Орнотуу үчүн кошулган компоненттер
The product package includes the following for installation:
- Интегралдык экстрактору бар индукциялык плита
- Көмүртек чыпкасы
- 2 straight ducts
- 2 elbow ducts
- Орнотуу комплекти
- Көп тилдүү колдонмо

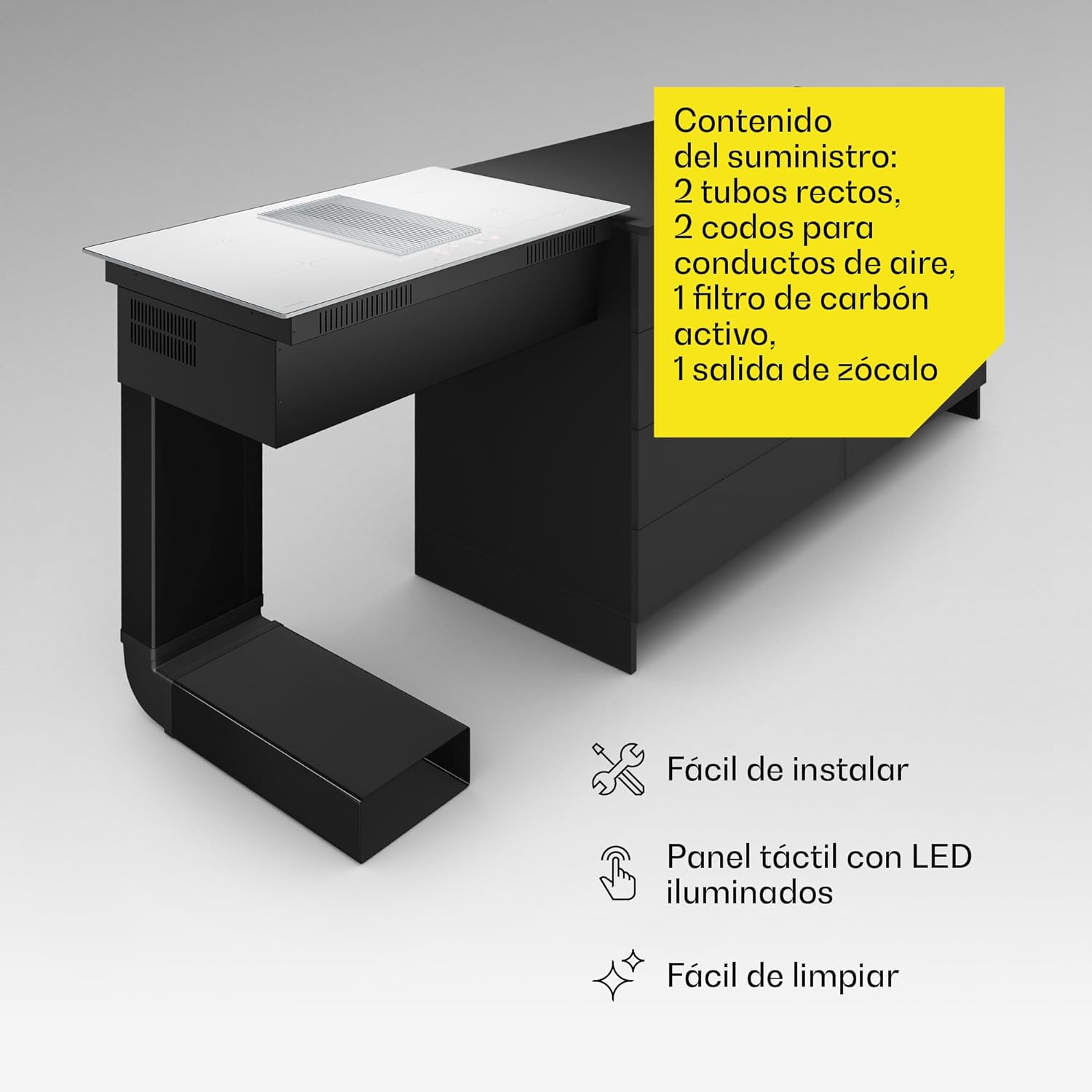

Image: The induction hob with its ducting components laid out, highlighting ease of installation, illuminated touch panel, and ease of cleaning.
5. Иштөө нускамалары
5.1. Күйгүзүү/өчүрүү
Press the main power button on the touch control panel to turn the hob on or off.
5.2. Кубаттуулук деңгээлин жөндөө
Select a cooking zone and use the slider control to choose from 9 power levels. A boost function is available for rapid heating.
5.3. Using the Flexible Zone
The two right-side cooking zones can be combined to form a larger flexible zone, ideal for oversized pots or griddle pans. Activate this function via the dedicated touch control.
5.4. Таймер функциясы
Set a cooking duration for any zone using the timer controls. The hob will automatically switch off the zone once the time expires.
5.5. ThermoRecall Function
This feature allows you to quickly recall the last used temperature setting for a cooking zone.
5.6. Панораманы аныктоо
The hob automatically detects suitable induction cookware. If no pan is detected or an unsuitable pan is used, the zone will not activate.
5.7. Жылуу кармоо функциясы
Maintain food at a serving temperature using the dedicated keep-warm setting.
5.8. Балдардын кулпусу
Activate the child lock to prevent accidental changes to settings or activation of the hob.
5.9. Extractor Operation
Control the extractor fan speed using its dedicated touch controls. Adjust the power according to cooking intensity to effectively remove fumes and odors.
6. Техникалык тейлөө жана тазалоо
Regular cleaning and maintenance ensure the longevity and optimal performance of your appliance. Always disconnect the power supply before cleaning.
6.1. Hob Surface Cleaning
- Clean the ceramic glass surface with a soft cloth and a non-abrasive cleaner specifically designed for induction hobs.
- Боюнун алдын алуу үчүн төгүлгөн жерлерди дароо сүртүңүз.
- Avoid using harsh chemicals, abrasive pads, or steam cleaners.
6.2. Extractor Filter Maintenance
- Май чыпкалары: The aluminum grease filters are dishwasher-safe. Clean them regularly (e.g., monthly, depending on usage) to maintain extraction efficiency and prevent grease buildup.
- Active Carbon Filters: If operating in recirculation mode, the active carbon filter needs periodic replacement (typically every 3-6 months, depending on usage). Refer to the full manual for specific replacement instructions.
7. Кыйынчылыктарды
Кардарларды тейлөө кызматына кайрылуудан мурун, төмөнкү жалпы маселелерди жана чечимдерди караңыз:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Конфорка күйбөйт. | No power supply; child lock activated; main power button not pressed correctly. | Check power connection; deactivate child lock; press power button firmly. |
| Бышыруу зонасы жылытылбайт. | Unsuitable cookware; no pan detected; zone not selected. | Use induction-compatible cookware; ensure pan is centered; select the desired zone. |
| Extractor fan is weak or noisy. | Grease filters are clogged; ducting obstruction (if applicable); fan motor issue. | Clean or replace grease filters; check ducting for blockages; contact service if motor issue suspected. |
| Ката коду көрсөтүлдү. | Өзгөчө ички ката. | Refer to the full manual for a list of error codes and their solutions, or contact customer support. |
8. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | КЛАРШТЕЙН |
| Модел | Velaire (Hybrid White) |
| Бөлүмдүн номери | 10047476 |
| Түс | Ак |
| Материал | Дат баспаган болот |
| Жылытуу элементтери | 4 Индукциялык зоналар |
| Max Power (Boost) | 8400 Вт |
| Башкаруу түрү | Слайдерге тийүү |
| Тtage | 220 вольт |
| Power Source | Электр |
| Extractor Airflow | 597 м³/саат |
| Продукциянын өлчөмдөрү (D x W x Y) | 52 см х 80 см х 22.8 см |
| Элемент Салмагы | 19 килограмм |
| Өзгөчөлүктөр | Turbo power, Precise touch control, Flexible zone, Timer, Child lock, Residual heat indicator, Pan detection, Keep warm function. |
9. Кепилдик жана колдоо
Klarstein products are designed for quality and reliability. For warranty information, please refer to the documentation included with your purchase or visit the official Klarstein webсайт.
For technical support, spare parts, or service inquiries, please contact Klarstein customer service. Details can typically be found on the brand's official webсайтында же сатып алуу документтеринде.
Онлайн ресурстар: You can often find additional support, FAQs, and product registration on the Klarstein Brand Store.
