1. Киришүү
The Smiling Shark Solar Light WL04 is an outdoor lighting solution designed for various applications such as gardens, patios, garages, and entrances. It features high-brightness LEDs, a motion sensor for automatic operation, and a solar panel for energy efficiency. This manual provides instructions for installation, operation, maintenance, and troubleshooting to ensure optimal performance of your device.

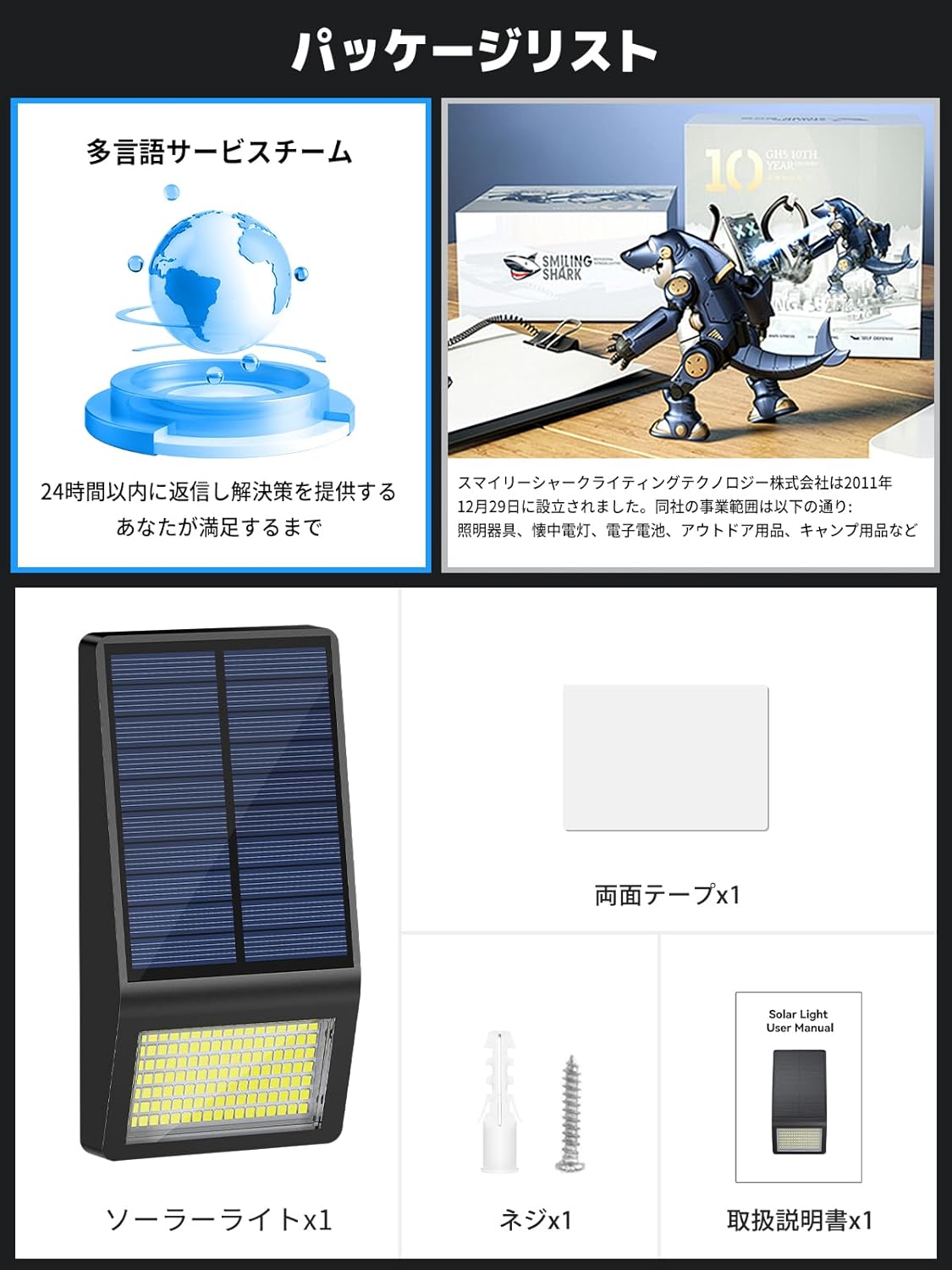

2. Пакеттин мазмуну
Төмөндө тизмеленген нерселердин баары пакетиңизге камтылганын текшериңиз:
- 1 x Smiling Shark Solar Light WL04
- 1 x эки тараптуу скотч
- 1 х Бурама топтому
- 1 x User Manual
3. Орнотуу жана орнотуу
The Smiling Shark Solar Light WL04 is designed for easy, wire-free installation. Choose a location that receives direct sunlight for at least 8 hours daily to ensure optimal charging.
Орнотуу ыкмалары:
- Method 1 (Screw Mounting):
Drill holes in the desired location. Insert the included plastic plugs. Secure the solar light to the wall using the provided screws. - Method 2 (Adhesive Mounting):
Attach the included double-sided tape to the back of the product. Press the product firmly onto a clean, flat surface.
Ensure the solar panel is facing upwards and unobstructed to maximize sunlight exposure.
4. Иштөө нускамалары
The WL04 solar light features an intelligent mode with a high-sensitivity motion sensor for automatic operation.
Функционалдык:
- Автоматтык күйгүзүү/өчүрүү: The light automatically turns on at maximum brightness when motion is detected within its 160° detection range and 0-5 meter detection distance.
- Auto-Off Delay: After approximately 30 seconds of no motion, the light will gradually dim and turn off.

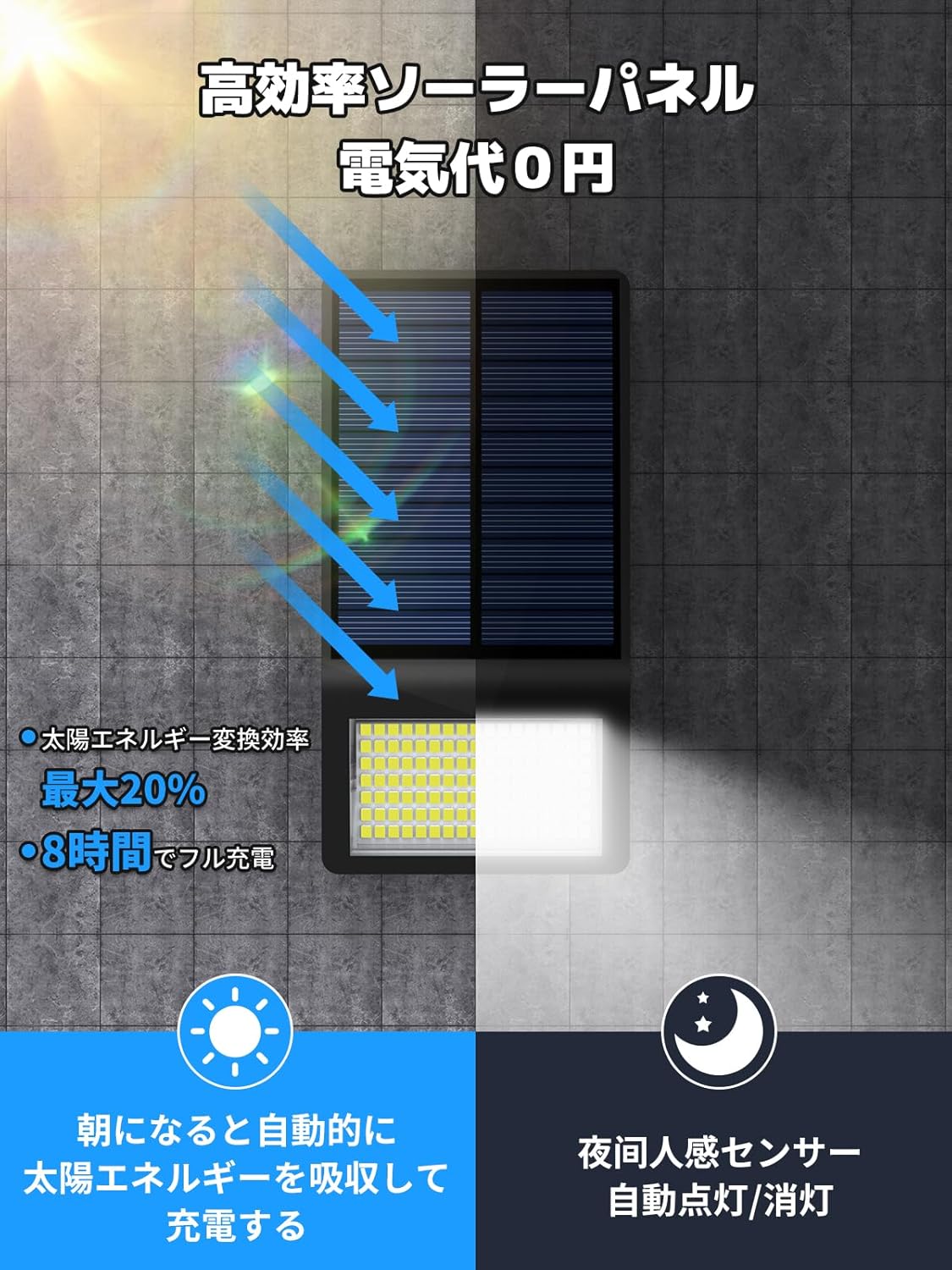

- Күн кубаты: During the day, the high-efficiency solar panel (up to 20% conversion rate) absorbs sunlight to charge the built-in 1200mAh battery. Ensure the switch is in the 'ON' position for charging.
A full charge, typically requiring 8 hours of direct sunlight, allows for extended illumination throughout the night.
5. Техникалык тейлөө
To ensure the longevity and optimal performance of your solar light, follow these maintenance guidelines:
- Күн панелин тазалоо: Дайыма күн панелин жумшак менен сүртүп, гamp cloth to remove dust, dirt, or debris. A clean panel ensures efficient sunlight absorption and charging.
- Монтаждоону текшерүү: Periodically inspect the mounting to ensure the light remains securely attached to the wall.
- Тоскоолдуктарды болтурбоо: Ensure no new obstructions (e.g., growing branches, new structures) block direct sunlight from reaching the solar panel.
6. Кыйынчылыктарды
If your solar light is not functioning as expected, please refer to the following common issues and solutions:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Түнкүсүн жарык күйбөйт. | Insufficient charging during the day. | Ensure the solar panel is in a location that receives at least 8 hours of direct sunlight daily. Clean the solar panel. |
| Жарык жыпылыктайт же жарыктыгы аз. | Partial charge or dirty solar panel. | Жарыктын күн нуру түз тийген жерде бир күн бою заряддалышына мүмкүнчүлүк бериңиз. Күн панелин тазалаңыз. |
| Кыймыл сенсору аныктабай жатат. | Sensor obstructed or placed too high/low. | Ensure the sensor is clear of obstructions. Adjust the mounting height to optimize detection range (0-5m). |
7. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Өндүрүүчү | Smiling Shark |
| Продукт моделинин номери | WL04 |
| Продукт өлчөмү | 16 x 2.9 x 8.2 см |
| Продукт Салмагы | 170 г |
| Бренд | Smiling Shark |
| Түс | Кара |
| Стиль | 1 ПАК |
| Жарыктык | 800 люмен (макс.) |
| Светодиоддор | 119 High-brightness LEDs |
| Кыймыл сенсорунун диапазону | 0-5 метр |
| Жарыктандыруу бурчу | 160° |
| Батарея сыйымдуулугу | 1200mAh (кайра заряддалуучу) |
| Күн панелинин эффективдүүлүгү | 20% чейин |

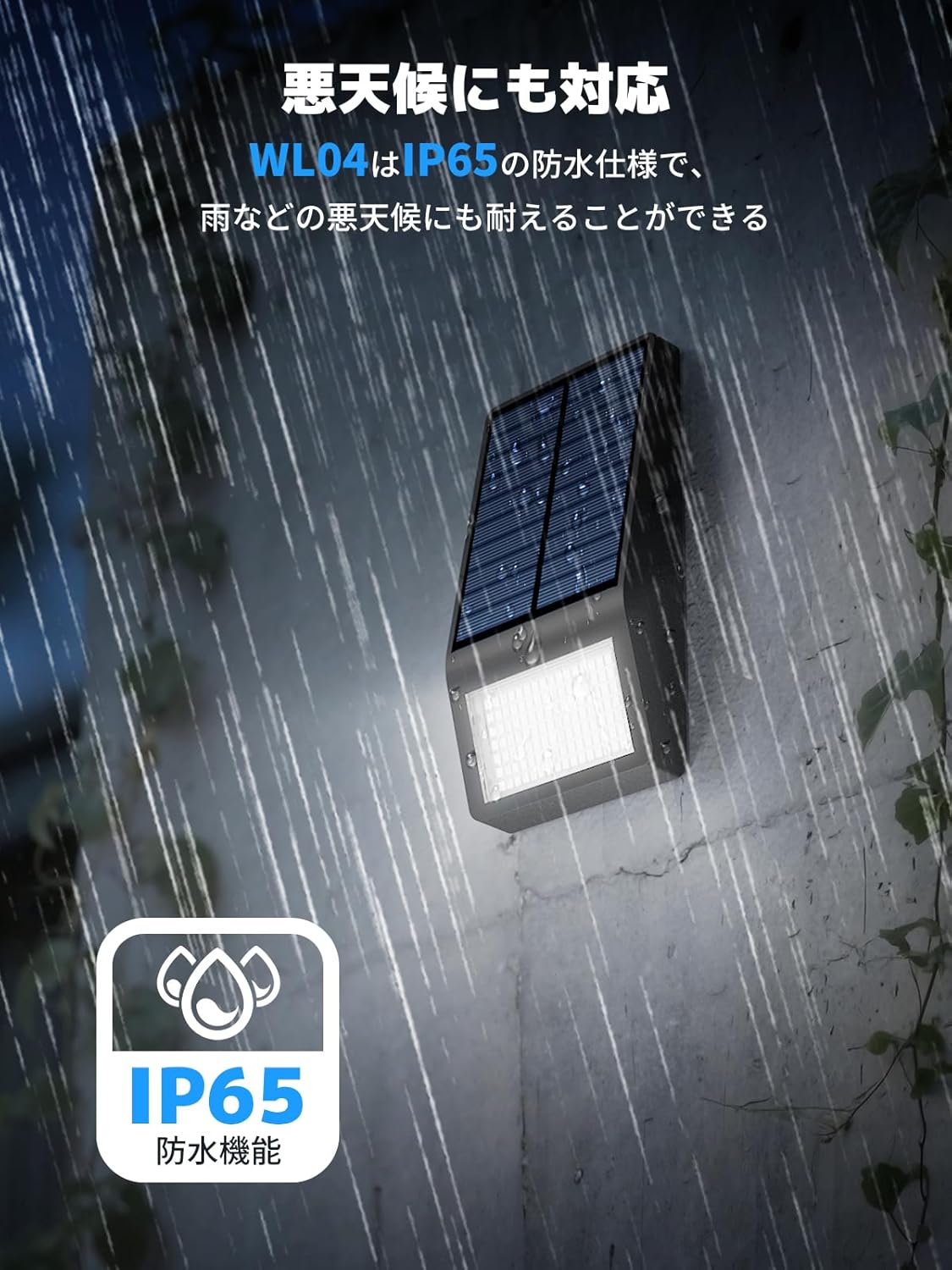

| Суу өткөрбөйт рейтинги | IP65 |
| Камтылган компоненттер | Screws, Instruction Manual |
8. Кепилдик жана колдоо
For warranty information, please refer to the documentation included with your product or visit the official Smiling Shark website. If you encounter any issues or have questions regarding your Smiling Shark Solar Light WL04, please contact our customer support team.
Our multilingual service team is committed to providing solutions within 24 hours to ensure your satisfaction.
Thank you for choosing Smiling Shark.
