1. Киришүү
Thank you for choosing the Homary Extendable Kitchen Island. This manual provides essential information for the safe assembly, operation, and maintenance of your new kitchen island. Please read these instructions thoroughly before beginning assembly and retain them for future reference.
Image 1.1: The Homary Extendable Kitchen Island, featuring a white matte and black finish with a marble pattern top.
2. Коопсуздук маалыматы
Чогултуу жана колдонуу учурунда төмөнкү коопсуздук чараларын сактаңыз:
- Чийип калбашы үчүн ар дайым продуктуну жумшак, таза бетке чогултуңуз.
- Колдонуудан мурун бардык бөлүктөрдүн бекем бекитилишин текшериңиз. Мезгил-мезгили менен бардык байланыштарды текшерип, бекемдеп туруңуз.
- Тартпаларды же текчелерди ашыкча жүктөбөңүз. Салмагын бирдей бөлүштүрүү.
- Кичинекей бөлүктөрүн жана таңгактоочу материалдарды муунуп калуу коркунучун болтурбоо үчүн балдардан алыс кармаңыз.
- Монтаждоо нускамаларында көрсөтүлгөндөй ылайыктуу шаймандарды колдонуңуз.
- For stability, avoid placing heavy items on the extendable section when fully extended without proper support.
3. Пакеттин мазмуну
Verify that all components are present before beginning assembly. Refer to the parts list provided in your packaging. If any parts are missing or damaged, please contact customer support.
Video 3.1: Detailed assembly instructions for the Homary Kitchen Island. This video demonstrates each step of the construction process, including identifying parts and securing connections.
4. Орнотуу жана чогултуу
Follow these steps for proper assembly of your kitchen island. It is recommended to have two people for assembly.
4.1. Dimensions Overview

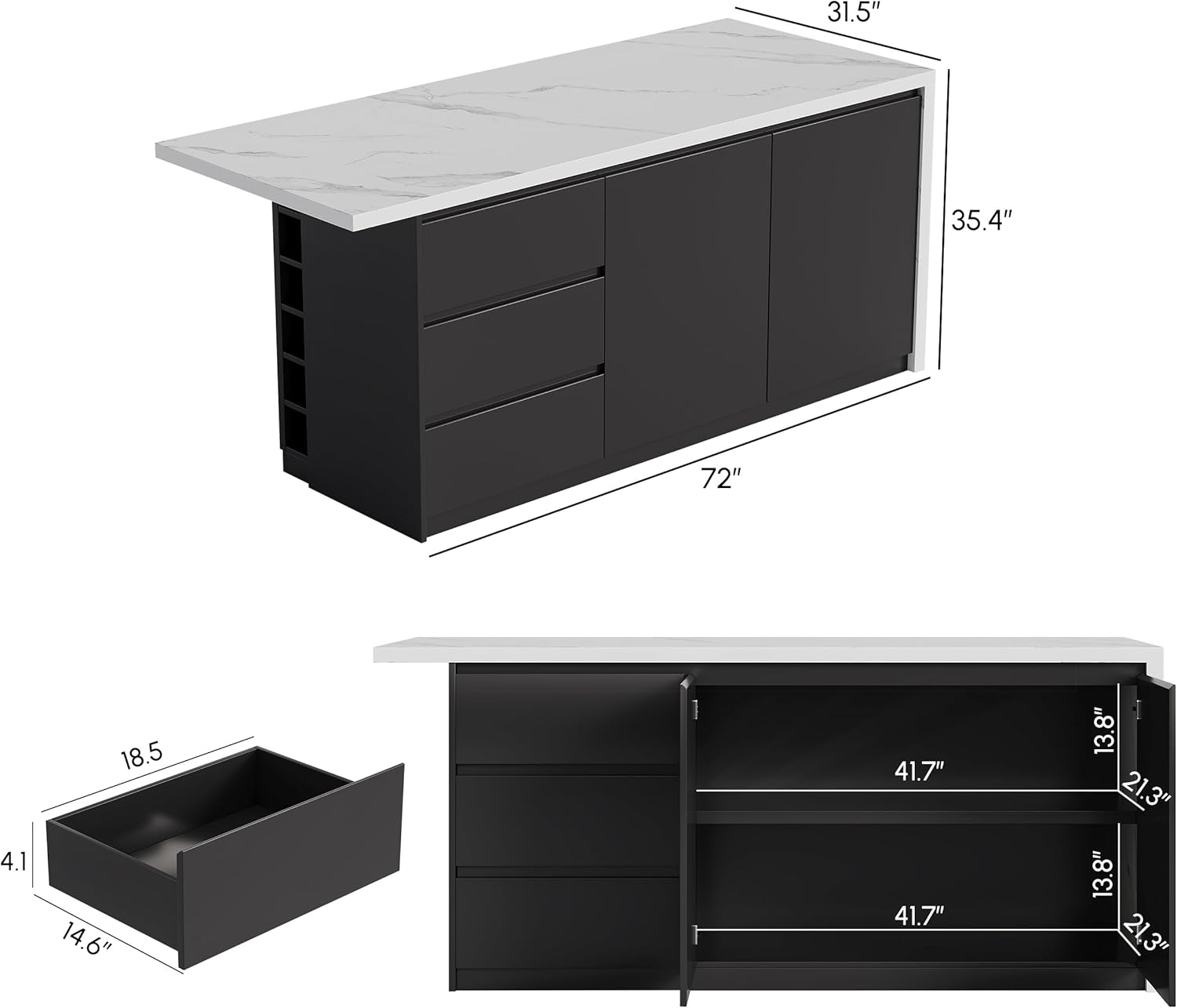

Image 4.1: Product dimensions. The island measures approximately 183 cm (72 inches) in length, 80 cm (31.5 inches) in width, and 90 cm (35.4 inches) in height.
4.2. Чогултуу кадамдары
Refer to the assembly video (Video 3.1) for visual guidance. The general steps involve:
- Компоненттерди даярдоо: Unpack all parts and lay them out on a clean, soft surface. Identify each part using the provided labels (A, B, C, etc.) and hardware (CC, EE, FF, GG, HH).
- Негизги структураны чогултуу: Connect the main side panels and base frames using the designated screws and dowels.
- Тартуу слайддарын орнотуу: Attach the drawer slides (EE1) to the interior side panels of the drawer compartments. Ensure they are level and securely fastened.
- Construct Drawer Boxes: Assemble the drawer boxes (U, R, S, T, V) and attach the remaining drawer slides (EE2) to them.
- Текчелерди тиркөө: Insert the adjustable shelves (F) into the cabinet sections using the shelf pins (HH).
- Коопсуз жогорку панели: Carefully place and secure the marble pattern top panel (A) onto the assembled base.
- Эшиктерди орнотуу: Attach the hinges (FF, GG) to the cabinet doors (W, X) and then mount the doors to the cabinet frame. Adjust hinges for proper alignment.
- Салгычтарды салуу: Чогултулган тартмаларды тиешелүү бөлүмдөрүнө жылдырыңыз.
5. Иштөө нускамалары
Your Homary Kitchen Island is designed for versatile use in your kitchen space.
5.1. Extendable Feature
The island features an extendable countertop section. To extend, gently pull the designated section outwards until it locks into place. To retract, disengage the locking mechanism (if present) and push the section back into its original position. Always ensure the extension is fully supported when in use.
5.2. Сактоо мүмкүнчүлүгү
The island includes multiple storage options:
- Тарткычтар: Smooth-gliding drawers provide convenient storage for utensils, linens, or smaller kitchen items.
- Кабинеттер: Doors open to reveal spacious compartments with adjustable shelves, ideal for larger pots, pans, or pantry items.
- Open Storage/Wine Rack: An integrated wine rack or open shelving offers easy access and display for bottles or decorative items.
Сүрөт 5.1: Ample storage with three drawers, two doors, and six adjustable shelves.
Image 5.2: The island comfortably seats up to four people, making it suitable for meals or social gatherings.
Image 5.3: The island serves as a spacious workstation for daily meal preparation.
Image 5.4: The island provides a comfortable setting for family dining and entertaining.
6. Техникалык тейлөө
Туура кам көрүү сиздин ашкана аралыңыздын узактыгын жана көрүнүшүн камсыз кылат.
6.1. Тазалоо
- Столь: The marble pattern top is made from MDF with marble veneer. Wipe spills immediately with a soft, damp кездеме. Каптамага зыян келтире турган абразивдүү тазалоочу каражаттардан же катуу химиялык заттардан алыс болуңуз.
- Frame and Doors: Clean with a soft, dry, or slightly damp кездеме. Ашыкча нымдуулукту колдонбоңуз.
6.2. Жалпы кам көрүү
- Avoid direct sunlight and extreme temperature changes to prevent warping or fading.
- Use coasters or placemats to protect the surface from hot items or scratches.
- Конструкциянын бүтүндүгүн сактоо үчүн бардык бурамалар менен бекиткичтерди мезгил-мезгили менен текшерип жана бекемдеп туруңуз.
Image 6.1: The countertop is designed to be scratch and stain resistant for effortless daily cleaning.
Image 6.2: The product features a durable surface material, offering high durability and realistic texture.
7. Кыйынчылыктарды
Эгер кандайдыр бир көйгөйгө туш болсоңуз, төмөнкү жалпы көйгөйлөрдү жана чечимдерди караңыз:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Island is wobbly/unstable | Бош бекиткичтер; Тегиз эмес пол | Check and tighten all screws. Use shims under the base if the floor is uneven. |
| Тарткычтар жылмакай жылбайт | Improperly installed slides; Obstruction; Overloaded drawer | Ensure drawer slides are correctly aligned and securely fastened. Remove any obstructions. Reduce drawer contents. |
| Кабинеттин эшиктери туура эмес жайгаштырылган | Loose hinges; Incorrect hinge adjustment | Tighten hinge screws. Adjust hinges using the adjustment screws to align the doors. |
| Extendable section is difficult to move | Obstruction; Dirty tracks; Misalignment | Check for any objects blocking the mechanism. Clean tracks. Ensure the section is aligned correctly. |
8. Техникалык шарттар
- Бренд: Homary
- Модель номери: JJ996938LV-NEW
- Түсү: White Matte and Black
- Продукциянын өлчөмдөрү (L x W x Y): 183 см x 80 см x 90 см (72 дюйм x 31.5 дюйм x 35.4 дюйм)
- Элемент Салмагы: 165 килограмм
- Материал: Reconstituted Wood (MDF)
- Үстөлдүн материалы: MDF with Marble Veneer
- Сунушталган колдонуулар: Food preparation, Additional storage, Dining
- Өзгөчөлүктөр: Extendable countertop, Open storage, Cabinets, Drawers, Adjustable shelves, Doors, Integrated wine rack
- Монтаж түрү: Floor Mount
- Стиль: Заманбап
- эшик стили: Слаб
9. Кепилдик жана колдоо
Homary is committed to providing quality products and customer satisfaction. While specific warranty details are not provided in the product information, please contact our support team for any inquiries regarding your product.
9.1. Байланыш маалыматы
- Кардарларды тейлөө электрондук почтасы: service@homarr.com
- WhatsApp колдоо: Chat with us on WhatsApp
- Жооп убактысы: Our customer service team aims to respond within 24 hours.
Image 9.1: Homary Customer Service contact details.
