AWOL VISION LTV-3000 Pro 4K UHD Ultra Short Throw Triple Laser Projector & 180-inch Wall Mount Projector Screen Bundle User Manual

1. Киришүү

This manual provides essential information for the safe and efficient operation of your AWOL VISION LTV-3000 Pro 4K UHD Ultra Short Throw Triple Laser Projector and the accompanying 180-inch Wall Mount Projector Screen. Please read this manual thoroughly before using the product and retain it for future reference.

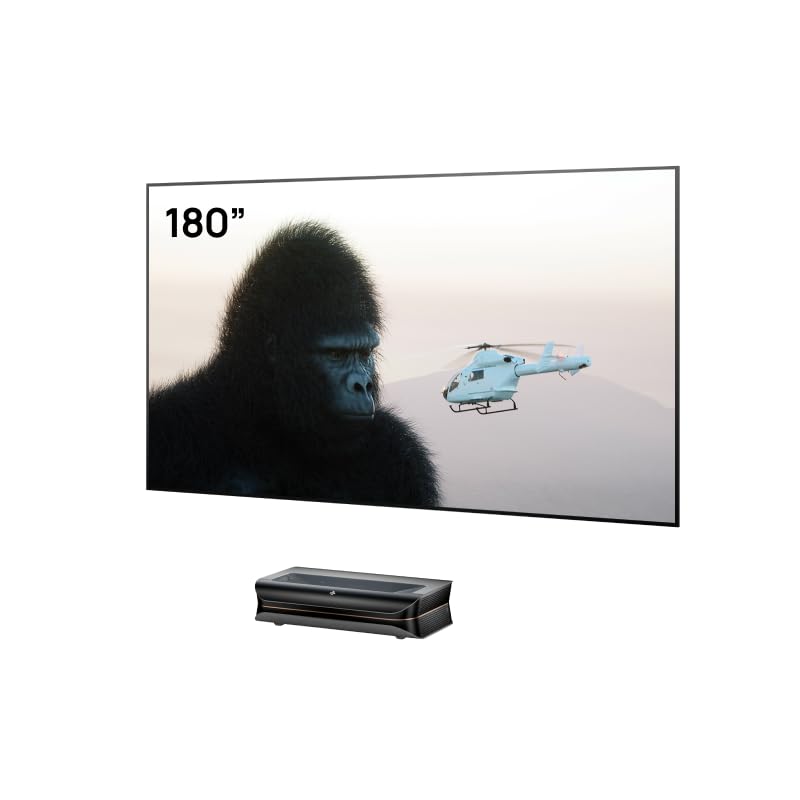

Image 1.1: The AWOL VISION LTV-3000 Pro projector, showcasing its design and core capabilities.

2. Пакеттин мазмуну

Төмөндө тизмеленген нерселердин баары пакетиңизге камтылганын текшериңиз:

• AWOL VISION LTV-3000 Pro Projector
• 180-inch Wall Mount Projector Screen
• Алыстан башкаруу (батареялар менен)
• Электр кабели
• HDMI кабели
• Колдонуучунун Колдонмосу (бул документ)

3. Орнотуу

3.1 Проекторду жайгаштыруу

The LTV-3000 Pro is an Ultra Short Throw (UST) projector, designed to project a large image from a very short distance. Place the projector on a stable, flat surface directly below the intended projection area on the wall or screen. Ensure the projector is level.

The projector has a fixed throw ratio of 0.25:1. For a 100-inch image, the projector should be approximately 8.54 inches from the screen. For a 150-inch image, it should be approximately 12.84 inches from the screen. Adjust the projector's distance from the screen to achieve the desired image size.

Image 3.1: Proper placement of the Ultra Short Throw projector for optimal viewing.

3.2 Screen Assembly and Mounting

The 180-inch Wall Mount Projector Screen requires assembly. Follow the detailed instructions provided in the separate screen assembly guide. Once assembled, mount the screen securely to a wall using appropriate hardware and techniques for your wall type. Ensure the screen is level and taut to prevent wrinkles and distortions.

Image 3.2: Visual comparison demonstrating the improved image quality on a dedicated matte white screen.

3.3 Түзмөктөрдү туташтыруу

Connect your video sources (e.g., Blu-ray player, streaming device, game console) to the projector's HDMI input ports using HDMI cables. Connect the power cable to the projector and then to a power outlet.

4. Иштөө нускамалары

4.1 Күйгүзүү/өчүрүү

Press the power button on the projector or the remote control to turn the unit on or off. Allow a few moments for the projector to warm up and display an image.

4.2 Булакты тандоо

Use the 'Source' button on the remote control to cycle through available input sources (HDMI 1, HDMI 2, etc.) until your desired device's content is displayed.

4.3 Сүрөттү тууралоо

The projector features automatic focus and keystone correction. If manual adjustments are needed, navigate to the 'Picture' or 'Display' settings in the projector's on-screen menu using the remote control. Adjust focus, keystone, and other image parameters as required for a clear, rectangular image.

4.4 Smart Home интеграциясы

The LTV-3000 Pro supports PJ Link IP control for integration with home automation systems such as Control4. Refer to your home automation system's documentation for specific integration steps. This allows for control of projector power, volume, and HDMI source switching via your smart home system.

Image 4.1: The projector's smart home integration capabilities with various platforms.

5. Өзгөчөлүктөрү

The AWOL VISION LTV-3000 Pro offers advanced features for a home cinema experience:

• 4K UHD токтому: Delivers a sharp, detailed image with 3840 x 2160 pixels.
• Triple Laser Technology: Utilizes three distinct lasers (RGB) for a wide color gamut and high brightness without a color wheel.
• Dolby Vision & HDR10+ Support: Provides enhanced contrast, brightness, and color accuracy for compatible content.
• 3D колдоо: Capable of displaying Active 3D content for an immersive viewтажрыйбасы.
• Built-in Center Channel Speaker: Features an integrated speaker designed to deliver clear dialogue directly from the screen area.
• Ultra Short Throw Design: Projects large images from a minimal distance, ideal for various room sizes.
• Оюн үчүн аз күтүү: Offers an 8ms response time at 1080p resolution with a 120Hz refresh rate, suitable for gaming.

Image 5.1: The projector's capability to reproduce over 1 billion colors for a rich visual experience.

5.1 Projector Screen Features

The included 180-inch Wall Mount Projector Screen is designed to complement the projector's performance:

• High Tier PVC Matte White Material: Ensures optimal color reproduction and image clarity.
• 4K/8K Optimization: Fully optimized for 4K and 8K projectors, providing detailed image quality.
• Active 3D Projection Ready: Supports Active 3D content for enhanced depth and realism.
• Ultra-Slim Frame: Features a 0.4-inch ultra-slim frame to maximize the viewаймак.

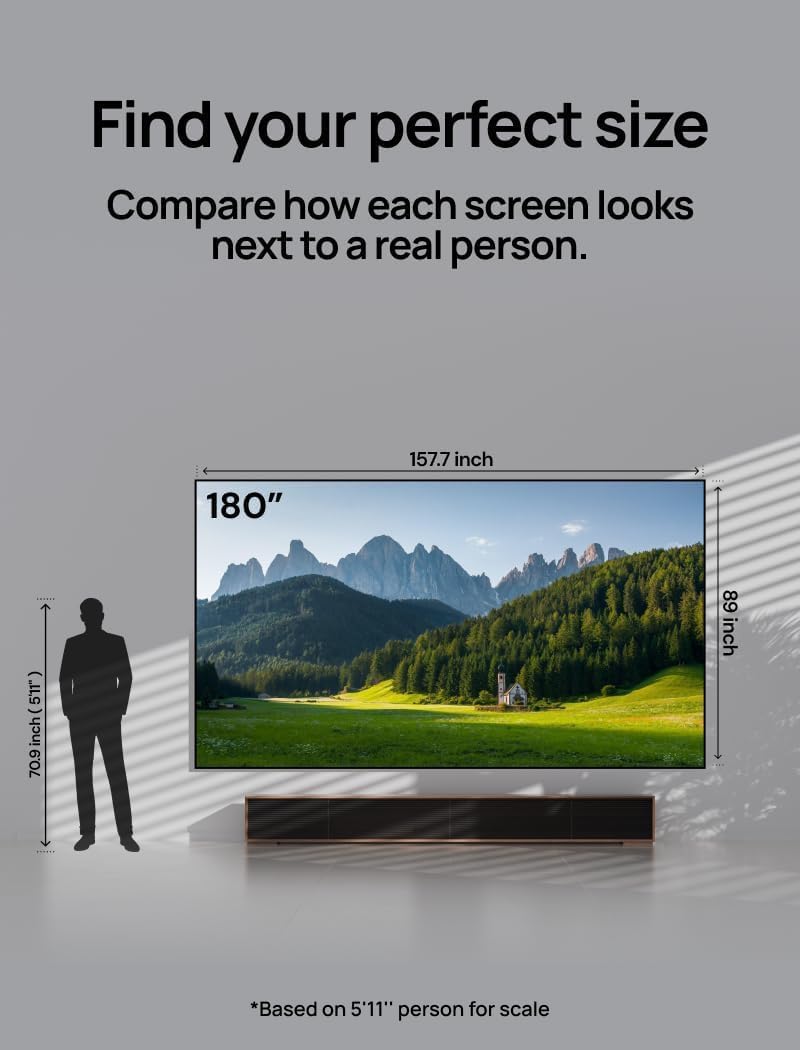

Image 5.2: A visual representation of the 180-inch screen size in relation to a human figure.

Image 5.3: Detail of the screen's ultra-slim frame, designed for an immersive viewтажрыйбасы.

Image 5.4: Visual comparison illustrating the superior image quality and structural integrity of the AWOL VISION screen.

6. Техникалык тейлөө

6.1 Projector Cleaning

To maintain optimal performance, regularly clean the projector's exterior with a soft, dry cloth. Do not use abrasive cleaners or solvents. For the lens, use a specialized lens cleaning cloth and solution, applying gentle pressure. Avoid touching the lens directly.

6.2 Экранды тазалоо

Gently wipe the projector screen surface with a soft, damp cloth using mild soap and water if necessary. Avoid harsh chemicals or abrasive materials that could damage the screen coating. Allow the screen to air dry completely before use.

7. Кыйынчылыктарды

If you encounter issues with your projector or screen, refer to the following common problems and solutions:

• Сүрөт көрсөтүлгөн жок:
  • Проектордун кубат булагы күйүп турганын жана кубат кабелинин бекем туташтырылганын текшериңиз.
  • Verify that the input source on the projector matches the device connected (e.g., HDMI 1).
  • Check the HDMI cable connection between the source device and the projector.
• бүдөмүк же бурмаланган сүрөт:
  • Adjust the projector's focus settings via the on-screen menu.
  • Ensure the projector is placed at the correct distance and angle from the screen.
  • Check for any obstructions in the projection path.
• Үн жок:
  • Increase the volume on the projector and your source device.
  • Verify that audio cables (if external speakers are used) are correctly connected.
  • Ensure the correct audio output is selected on your source device.

For further assistance, please contact AWOL VISION customer support.

8. Техникалык шарттар

9. Кепилдик жана колдоо

For warranty information and customer support, please refer to the warranty card included with your product or visit the official AWOL VISION webсайт. Сатып алуу квитанциясын кепилдик дооматтары үчүн сатып алуунун далили катары сактаңыз.
