Introduction
This manual provides comprehensive instructions for the installation, operation, and maintenance of the FERMAX Marine Panel Duox Plus ST2 CP101 DDA. This outdoor security panel is designed for robust performance in marine environments, offering advanced communication and access control features. Please read this manual thoroughly before installation and use to ensure proper functionality and safety.

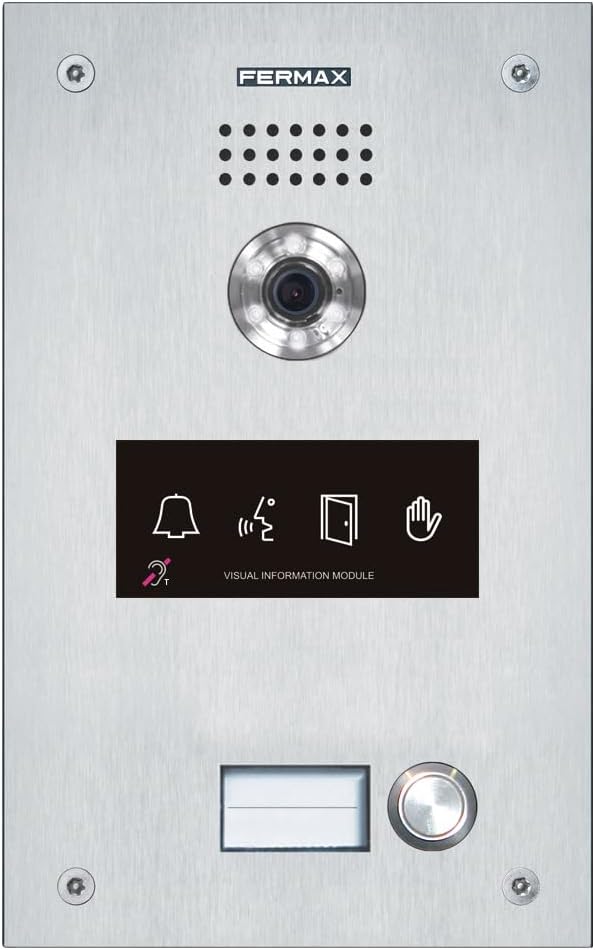

Figure 1: FERMAX Marine Panel Duox Plus ST2 CP101 DDA
The image displays the front of the FERMAX Marine Panel, highlighting its durable stainless steel construction. Key components visible include the integrated camera lens, a speaker grille, a black visual information module with icons for bell, audio, door, and hand, a nameplate slot, and a large, illuminated call button. The panel is secured by four visible screws at the corners.
Орнотуу жана орнотуу
The FERMAX Marine Panel is designed for wall-mount installation. Ensure the mounting surface is stable and provides adequate protection from extreme weather conditions, although the unit is rated for outdoor use.
1. Сайтты даярдоо
- Choose a location that allows for clear camera view and audio communication.
- Ensure proper wiring access for power and data connections (Wired Connectivity).
- Verify the mounting surface can support the panel's dimensions (9.92 x 6.46 x 3.23 inches).
2. Панелди орнотуу
- Mark the drilling points on the wall using the panel as a template.
- Drill pilot holes suitable for the mounting screws.
- Secure the panel firmly to the wall using appropriate fasteners.
3. Электрдик байланыштар
Connect the power supply and communication cables according to the wiring diagram provided in the separate installation guide (not included in this manual). This panel utilizes Duox Plus technology for simplified wiring.
4. Network Configuration (Wi-Fi)
The panel supports Wi-Fi connectivity for remote management and integration. Refer to the network setup guide for detailed instructions on connecting to your local Wi-Fi network.
Иштөө нускамалары
The FERMAX Marine Panel is designed for intuitive operation, primarily functioning as an outdoor security and communication device.
1. Чалуу
- To initiate a call, press the large illuminated call button located at the bottom of the panel.
- The visual information module will display relevant status icons (e.g., ringing, speaking).
- Communication is established via the integrated speaker and microphone.
2. Visual Information Module
The visual information module provides feedback on the panel's status and call progress. Icons typically include:
- Коңгуроо сүрөтчөсү: Indicates an incoming call or ringing status.
- Audio Wave Icon: Indicates active audio communication.
- Door Icon: May indicate door release status (if integrated with an access control system).
- Hand Icon: May indicate a busy line or other status.
- Ear Icon with T: Indicates compatibility with hearing aids (telecoil).
3. Үн менен башкаруу
The panel supports voice control for certain functions. Refer to the advanced configuration guide for details on setting up and using voice commands.
Техникалык тейлөө
Regular maintenance ensures the longevity and optimal performance of your FERMAX Marine Panel. The panel is constructed from durable Stainless Steel and Steel.
1. Тазалоо
- Сырткы беттерин жумшак менен сүртүңүз, гamp кездеме.
- Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish and electronic components.
- Ensure the camera lens and speaker grille are free from dirt and debris.
2. Текшерүүлөр
- Periodically check all visible screws and mounting points for tightness.
- Inspect cables for any signs of wear or damage.
- Ensure the nameplate slot is clean and the nameplate is legible.
Проблемаларды чечүү
This section addresses common issues you might encounter with your FERMAX Marine Panel.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| No power/Panel is unresponsive. | Power supply issue, loose connection. | Check power source and all electrical connections. Consult a qualified electrician if necessary. |
| No audio during a call. | Microphone/speaker obstruction, wiring issue. | Ensure speaker grille and microphone are clear. Verify audio wiring connections. |
| Видеонун сапаты начар. | Dirty camera lens, poor lighting, network issue. | Clean the camera lens. Ensure adequate lighting. Check Wi-Fi signal strength. |
| Wi-Fi'га туташпай жатат. | Туура эмес сырсөз, байланыш аймагынан тышкары, тармактык тоскоолдук. | Verify Wi-Fi password. Move closer to the access point or use a Wi-Fi extender. Check for network interference. |
For issues not listed here, please contact FERMAX customer support or refer to the full technical documentation.
Техникалык шарттар
Key technical specifications for the FERMAX Marine Panel Duox Plus ST2 CP101 DDA:
- Модел: ST2 CP101 DDA
- Бренд: FERMAX
- Монтаж түрү: Дубалга орнотуу
- Зымсыз байланыш технологиясы: Wi-Fi
- Материал: Дат баспас болот, болот
- Жарык булагы түрү: LED
- Видео тартуу форматы: MPEG-4
- Башкаруу ыкмасы: Үн
- Пакеттин өлчөмдөрү: 9.92 x 6.46 x 3.23 дюйм
- Продукт үчүн сунушталган колдонуулар: Тышкы коопсуздук
- Байланыш технологиясы: Зымдуу
- Ички/тышкы колдонуу: Сыртта
- Туташуу протоколу: Wi-Fi
- Өндүрүүчү: FERMAX
- Биринчи жеткиликтүү: 26-июнь, 2023-жыл
Кепилдик жана колдоо
For warranty information and technical support, please contact FERMAX directly or visit their official website. Details regarding product registration and service centers can typically be found on the manufacturer's support pages.
