1. Продукт бүтүп калдыview
The FERMAX Audio Duox Plus Veo Guard Unit Monitor 9320 is an advanced audio and video intercom system designed for security and communication within residential or commercial buildings. This unit serves as a central guard station monitor, enabling clear audio-visual communication with visitors and residents, and providing control over access points. Its intuitive touch and button controls ensure ease of use for security personnel.

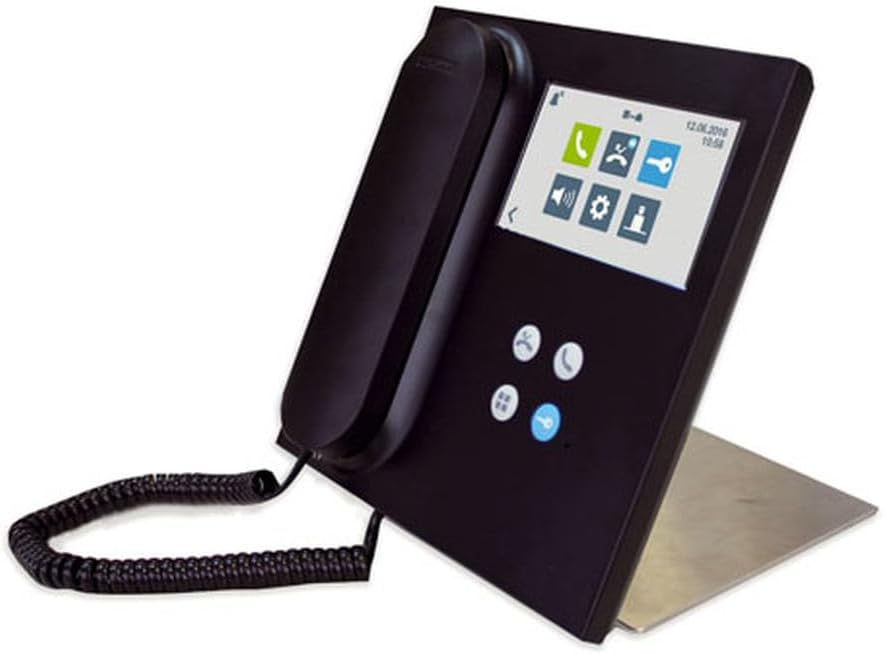

Figure 1: FERMAX Audio Duox Plus Veo Guard Unit Monitor 9320, showing the handset, screen, and control buttons.
2. Орнотуу жана орнотуу
2.1 Агрегатты таңгактан чыгаруу
Carefully remove all components from the packaging. Verify that all items listed in the packing list are present and undamaged. Retain the original packaging for future transport or storage.
2.2 Монтаждоо параметрлери
The Veo Guard Unit Monitor 9320 supports both Door Mount жана Тоонун сыртында configurations. Choose a stable, flat surface for installation, ensuring adequate space for ventilation and cable management.
- Эшик орнотуу: Ideal for integration into existing door entry panels or custom enclosures.
- Тоо сыртында: Suitable for surface mounting on a desk or wall using the provided stand or mounting bracket.
2.3 Зымдар жана байланыштар
Connect the unit to the FERMAX Duox Plus system using the appropriate wiring diagrams provided in the separate installation guide. Ensure all connections are secure and correctly polarized to prevent damage. Power should only be applied after all connections are verified.
- Connect the Duox Plus bus lines (data and power).
- Connect the audio lines (if applicable for external speakers/microphones).
- Connect the power supply unit to a suitable electrical outlet.
2.4 Баштапкы кубаттуулук
Once all connections are made, plug in the power supply. The unit will perform a self-test and display the FERMAX logo, followed by the main interface. Allow a few moments for the system to initialize fully.
3. Иштөө нускамалары
3.1 Колдонуучу интерфейсинин навигациясы
The monitor features a combination of тийүү screen and physical баскыч controls. The main screen displays various icons for different functions.
- Сенсордук экран: Tap icons or swipe to navigate menus and select options.
- Физикалык баскычтар: Use the dedicated buttons for common actions such as answering calls, opening doors, or navigating back.
3.2 Чалууларды кабыл алуу жана кабыл алуу
To initiate a call, select the desired resident or apartment from the directory on the screen and press the call button. When a call is received, the monitor will ring and display the caller's video (if available). Lift the handset or press the answer button to establish communication.
3.3 Door Release Function
During an active call, press the dedicated door release button (often marked with a key icon) to unlock the connected entrance. Ensure the identity of the visitor is confirmed before releasinэшикти.
3.4 Система орнотуулары
Access the settings menu via the gear icon on the main screen. Here you can adjust volume, screen brightness, language, and other system preferences. Refer to the detailed system manual for advanced configuration options.
4. Техникалык тейлөө
4.1 Агрегатты тазалоо
Монитордун экранын тазалоо жана вasing, use a soft, lint-free cloth slightly dampened with water or a mild, non-abrasive cleaning solution. Avoid using harsh chemicals, solvents, or abrasive materials, as these can damage the surface. Ensure the unit is powered off before cleaning.
4.2 Жалпы кам көрүү
- Keep the unit away from direct sunlight, excessive heat, and moisture.
- Желдетүүчү тешиктерди жаппаңыз.
- Аппаратты түшүрүүдөн же катуу соккулардан сактаныңыз.
- Regularly check cable connections for looseness or damage.
5. Кыйынчылыктарды
This section addresses common issues you might encounter with your FERMAX Audio Duox Plus Veo Guard Unit Monitor 9320.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Кубат жок/Экран бош | Power cable disconnected; Power supply failure; System fault. | Check power cable connection. Ensure power outlet is functional. Contact technical support if issue persists. |
| Чалуу учурунда аудио жок | Volume too low; Handset not properly seated; Wiring issue. | Adjust volume in settings. Ensure handset is correctly placed. Verify audio wiring connections. |
| Cannot open door | Door release not activated; Wiring issue to door lock; Lock malfunction. | Ensure call is active and door release button is pressed. Check wiring to the door lock. Consult a qualified technician for lock issues. |
| Сенсордук экран жооп бербейт | Убактылуу программалык камсыздоонун бузулушу; Экрандын бузулушу. | Restart the unit by disconnecting and reconnecting power. If unresponsive, contact support. |
For issues not listed here or if troubleshooting steps do not resolve the problem, please contact FERMAX technical support.
6. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Модел | 9320 |
| Бренд | FERMAX |
| Башкаруу ыкмасы | Баскыч, Баскыч |
| Монтаж түрү | Door Mount, Outside Mount |
| Динамик түрү | Computer, Outdoor |
| Бирдик саны | 1.0 Сан |
| Пакеттин өлчөмдөрү | 10.71 x 9.41 x 2.56 дюйм |
| Суу өткөрбөйт | ЖАЛГАН |
| ASIN | B0C9K2RW3B |
| Дата биринчи жеткиликтүү | 27-июнь, 2023-жыл |
7. Кепилдик жана колдоо
7.1 Продукциянын кепилдиги
The FERMAX Audio Duox Plus Veo Guard Unit Monitor 9320 is covered by a standard manufacturer's warranty. Please refer to the warranty card included with your product or visit the official FERMAX webкепилдик камтууга жана узактыгына байланыштуу толук шарттар жана шарттар үчүн сайт.
7.2 Техникалык колдоо
For technical assistance, installation queries, or advanced troubleshooting, please contact FERMAX customer support. You can find contact information, FAQs, and additional resources on the official FERMAX webсайт:
When contacting support, please have your product model (9320) and ASIN (B0C9K2RW3B) readily available.
